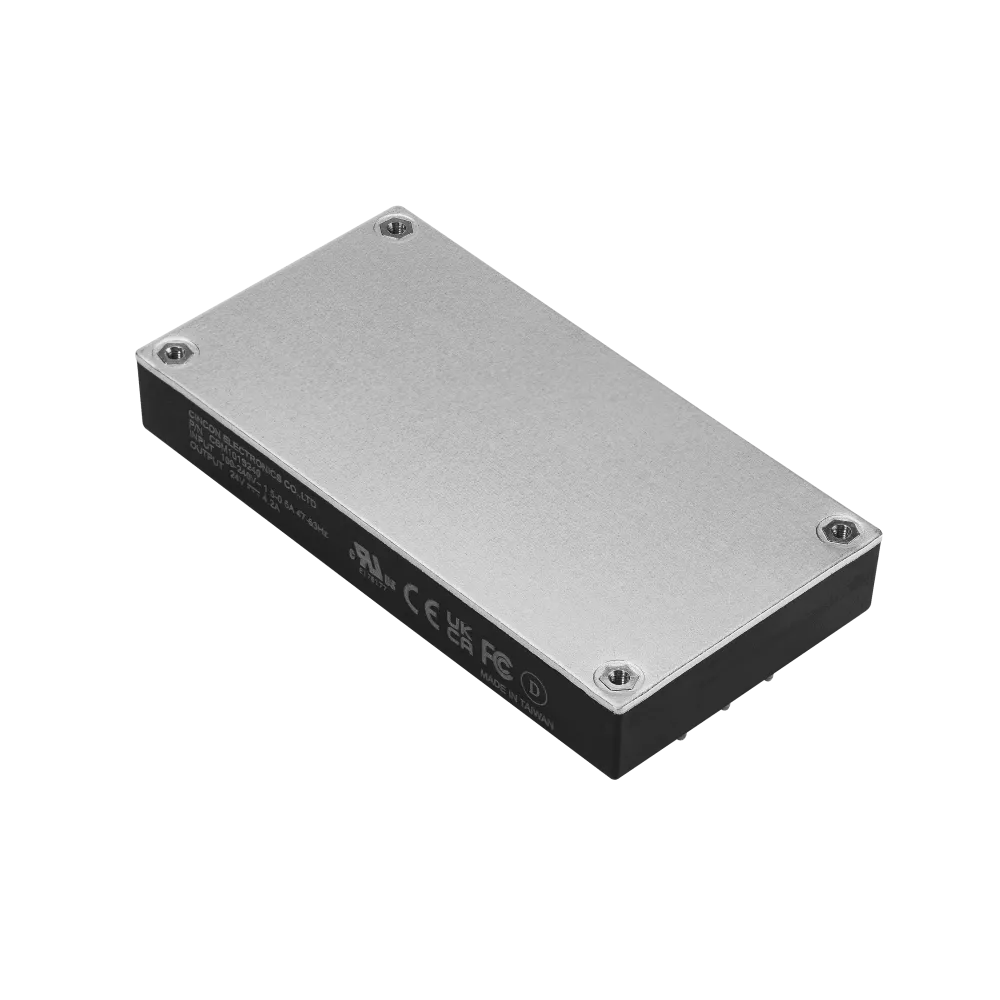

100W PCB Mount Power Supply 28V/3.6A

CBM101S280 from Cincon is an AC-DC power supply that provides 100W of regulated power in the full brick size and the 17 mm low profile package. The series has the safety approvals for IEC/UL/EN 62368-1.

Technical data

• Input range 90 to 264Vac / 120 to 370Vdc
• Peak Power Operation up to 120W for 5 seconds
• No Load Input Power Consumption <0.5W
• very wide operating temperature range from -40°C to +85°C
• Operating Altitude 5000m
• 17mm Ultra Low Profile Package
• MTBF >600k hours
• Safety approvals for IEC/UL/EN 62368-1
• EMC compliant to EN55032 Class B and CISPR/FCC Class B.
• output over current protection, output over voltage protection, over temperature protection and continuous short circuit protection
