About the product

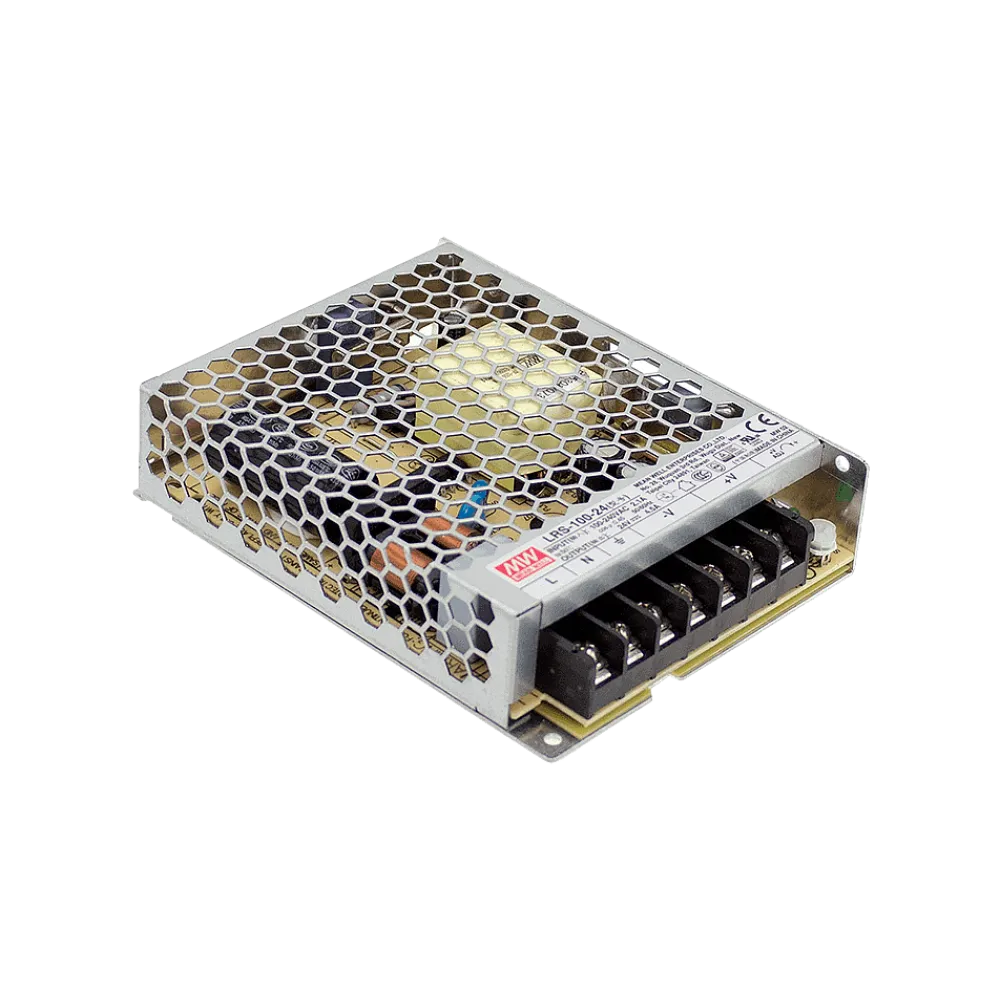

LRS-100N2-36 is a power supply in a perforated plate housing with a low height of only 30mm. In the short term, the power supply delivers up to 200W peak power.
Technical data
- Input voltage 85 to 264Vac
- Up to 200W peak power
- Power consumption at no load <0.5W
- Metal housing with screw terminals
- Compliant with household appliance standards IEC/EN60335-1 and IEC/EN61558-1,-2-16
- Designed for applications up to max. 4000m.a.s.l. operating altitude
- Overvoltage category III (OVC III)
- Operating temperature range from -30°C to +70°C
- Withstands surge voltages up to 300Vac up to 5 sec.
- Vibration test up to 5G
- Dimensions 129 x 97 x 30mm (L x W x H)
Product specifications
| Output voltage (VDC) | 36 V |
| Efficiency | 90.00% |
| Manufacturer | MEAN WELL |
| Additional functions | OVC III, Peak Power |
| Application | Household, ITE/AV |
| Voltage setting range | 32.4-39.6 VDC |
| Height | 30 mm |
| Width | 97 mm |
| Length | 129 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 100 W |
| Manufacturer warranty | 3 years |
