About the product

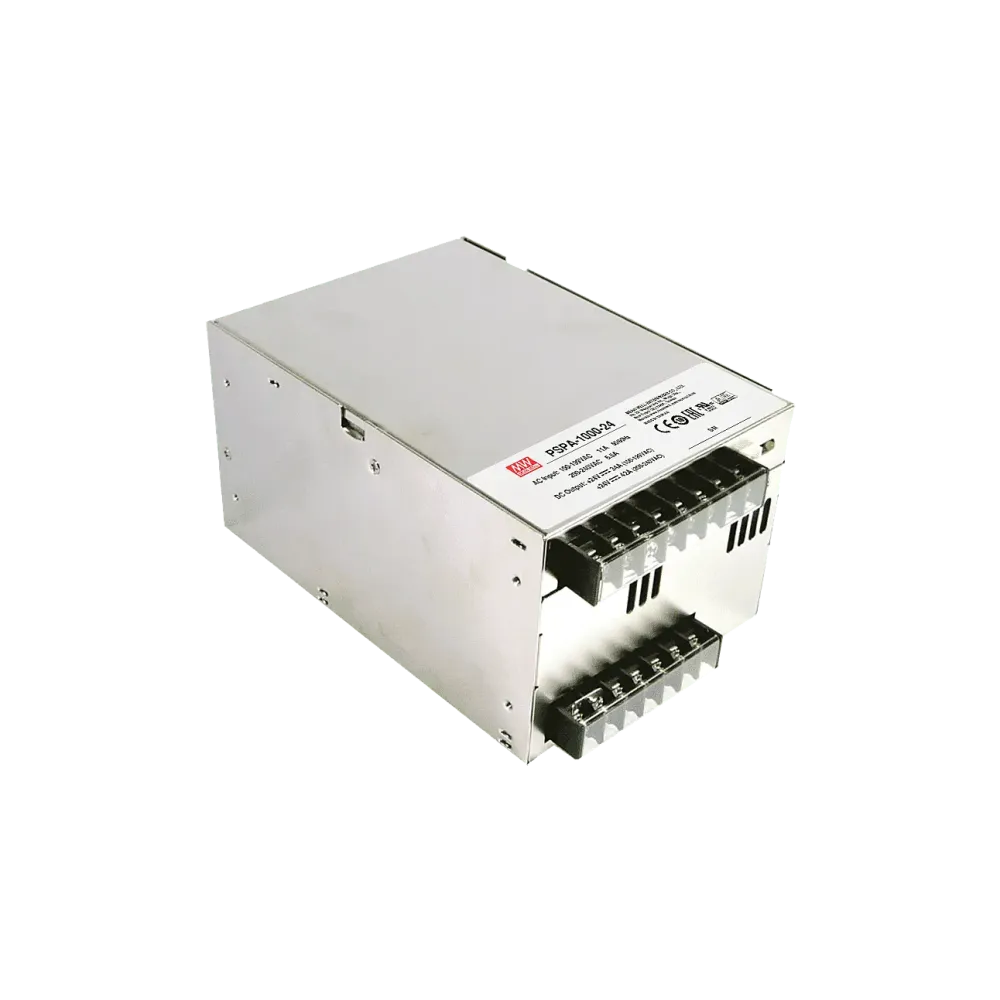

The PSPA-1000 is a 1000W switching power supply with up to 94% efficiency and extensive functions...
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- Metal housing with screw terminals
- Remote ON/OFF function
- DC OK signal
- Remote sense function for voltage equalization with long cables
- Current sharing for up to 4000W output power (3+1)
- Overload circuit with constant current limiting
- Operating temperature range from -20°C to +70°C
- Dimensions 170 x 120 x 93mm (L x W x H)
Product specifications
| Width | 120 mm |
| Maximum VDC setting range | 56 V |
| Additional functions | Parallel switchable |
| Control signals | Remote ON/OFF, Remote Sense |
| Power | 1008 W |
| Height | 93 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Length | 170 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 46 V |
