About the product

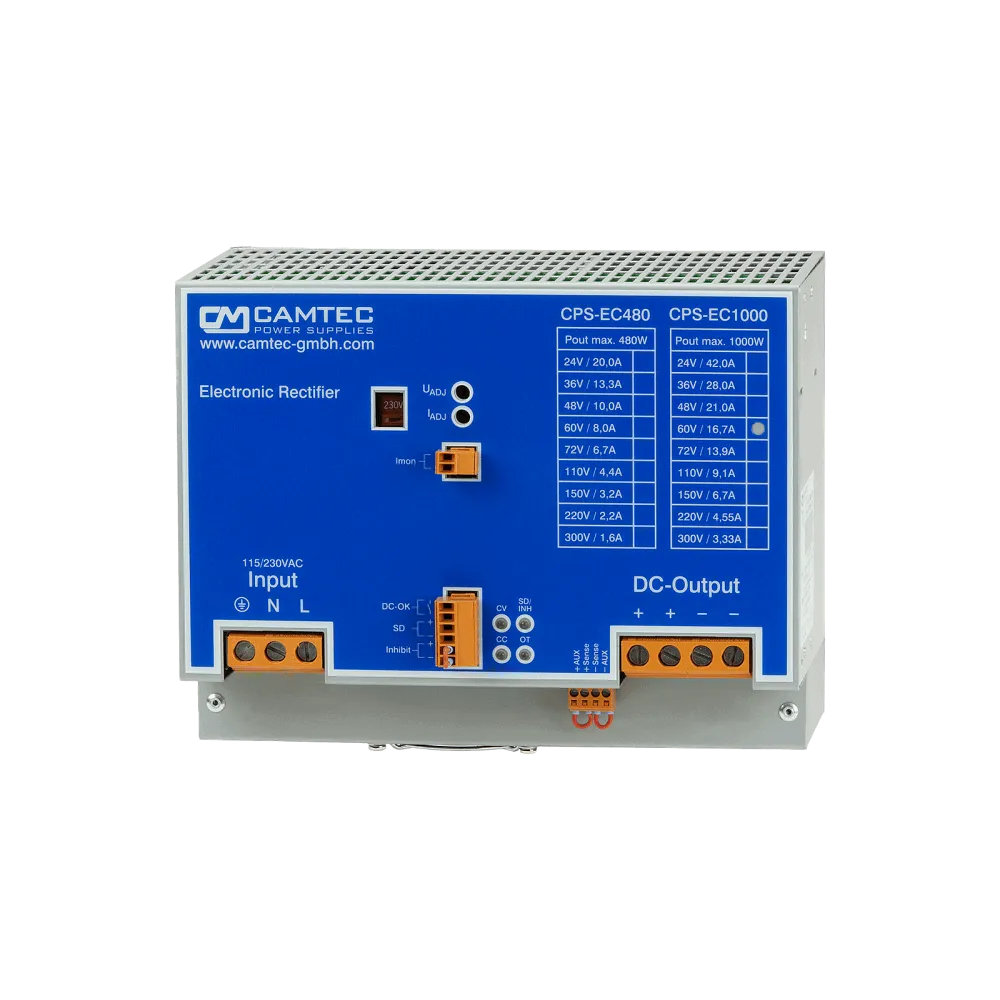

1000W DIN-Rail Battery Charger 150V/6.7A
Technical data
- Real time output current monitoring
- Precision potentiometer f. voltage & current
- Power Good Relay AC & DC-ok
- C/V curve down to 0V, no foldback
- Sense control 1V per load line
- Electronic inrush current limiter 13.8Apeak
- Inhibit function (Interlock)
- External shutdown
- Efficiency up to 92%
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- Hold up time >50ms EC480 / >30ms EC1000
- Soft start & auto-recovery
- High reliability, shock & vibration proof
- EMC meets CE norm class B
- Overload and short circuit protection
- Large terminals 4x AWG20 – AWG6 (0,5 – 16mm²)
- Made in Germany
- Manufacturer Camtec
Product specifications
| Output voltage (VDC) | 150 V |
| Manufacturer | Camtec |
| Manufacturer warranty | 5 years |
| Product series | CPS-EC |
| Status signals | AC OK relay contact, DC OK relay contact, current monitoring |
| Control signals | Remote ON/OFF, Remote sense |
| Overload characteristics | Constant current limiting |
| Additional functions | Charger, Parallel connectable |
| Depth | 114.5 mm |
| Height | 156 mm |
| Width | 200 mm |
| Input voltage range (VAC) | 110/230 V |
| Output current | 6.7 A |
| Power | 1008 W |
| Efficiency | 92.00% |
