About the product

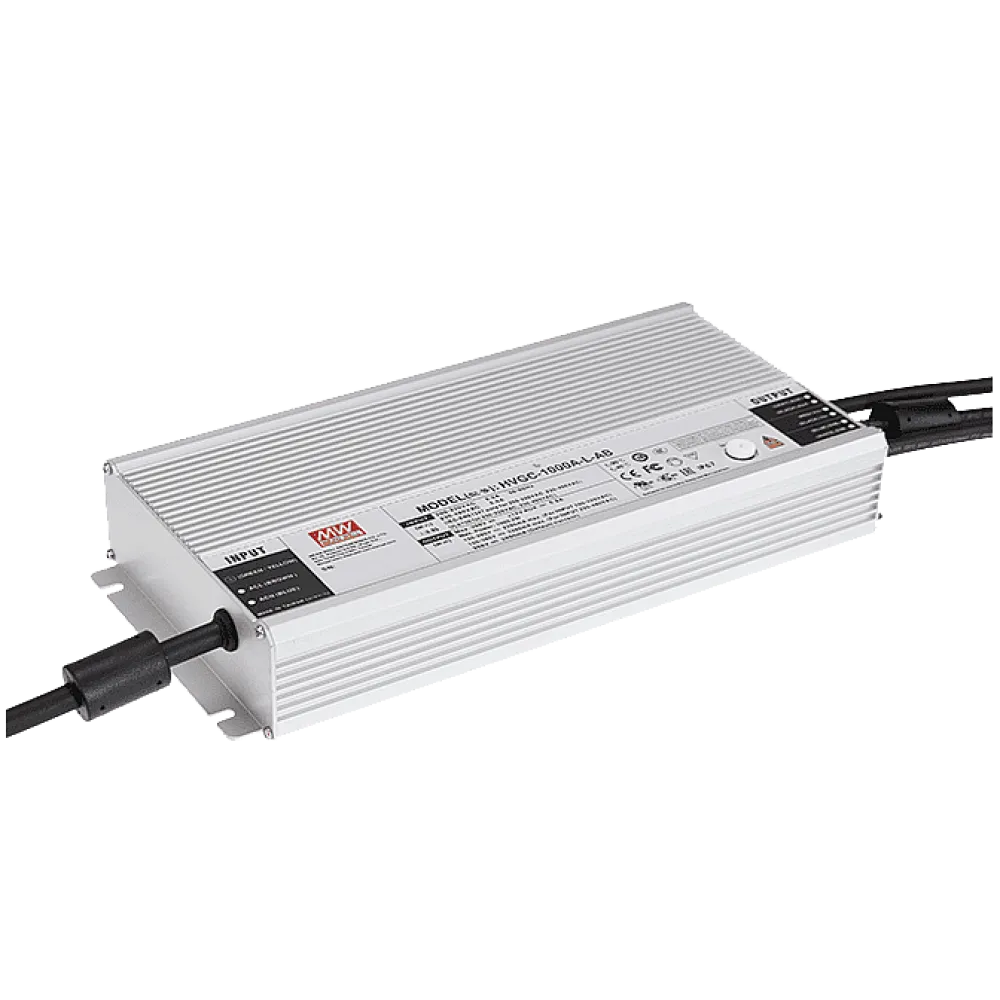

HVGC-1000 series is a 1000W LED AC/DC Driver featuring the constant power mode output. With its wide range input from 180 to 528Vac it is suitable for 3-phase input without neutral line to replace HID lamps.
Technical data
- Universal AC Input 180 to 528Vac
- Constant Power Design
- Constant current level can be adjusted through 0-10Vdc / PWM signal or Resistance
- Output Voltage Region HVGC-1000-H: 70 – 180Vdc
- Full Power Current range HVGC-1000-H: 5600 – 7000mA
- Current adjustable range HVGC-1000-H: 2800 – 7000mA
- 12V/500mA Auxiliary output
- Dimension 310 x 144 x 48.5mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Power | 1000 W |
| Output voltage range (VDC) | 70-180 V |
| Output current | 2800-7000 mA |
| Input voltage range (VAC) | 200-480 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | 12 V DC auxiliary output |
| Connection | Cable |
| IP protection | IP67 |
| Height | 48.5 mm |
| Width | 144 mm |
| Length | 310 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V |
| Product series | HVGC |
