10000W 3-Phase Power Supply 115V/87A, Water cooling type

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

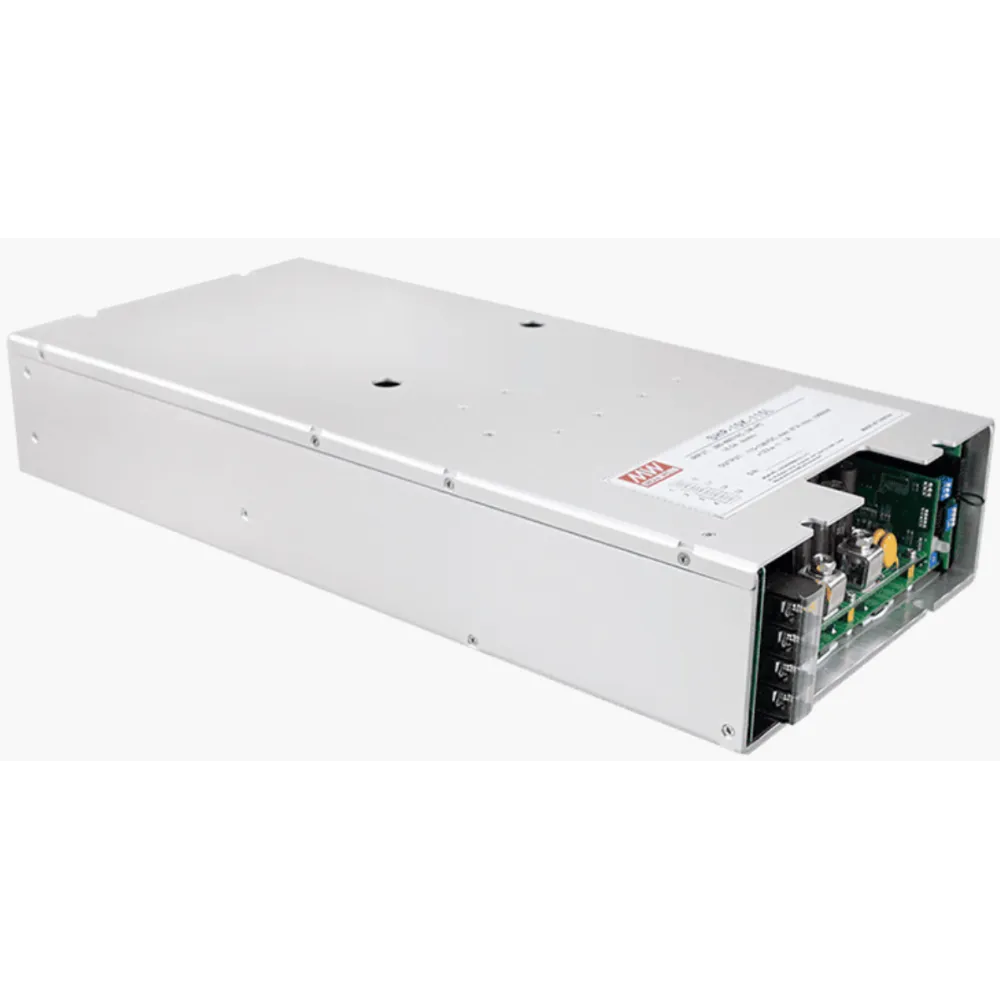

SHP-10K is a digital 10kW power supply unit with 3-phase input. The "L" version is designed for operation with water cooling.

Three phase input voltage range 340 to 305Vac, 3-wires / delta connection or star (Y) connection
Built-in active PFC function
Built-in remote sense and remote On/Off control
Built-in 12V/0.1A auxiliary power
Output voltage can be trimmed between 50 – 120% by external control signal
Output current can be trimmed between 20 – 100% by external control signal
Current sharing with up to 4 units up to 40kW
Alarm signal output (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
CANBus interface for monitoring and control integrated
Cooling designed for operation with water cooling
Working temperature range -30°C to +70°C
Dimension 460 x 216 x 83.5mm (L x W x H)
5 Years Warranty
Manufacturer MEAN WELL

Output voltage (VDC)	115 V
Manufacturer warranty	5 years
Manufacturer	MEAN WELL
Control signals	Programmable output current, Programmable output voltage, Remote ON/OFF
Status signals	AC OK signal, DC OK signal, fan failure
Additional functions	CANBus, Water cooling, 12V DC auxiliary output, Parallel connectable
Application	ITE/AV
Voltage setting range	57.5-138.0 VDC
Height	83.5 mm
Width	216 mm
Length	460 mm
Input voltage range (VAC)	340-530 V
Power	10000 W
Efficiency	96.00%
