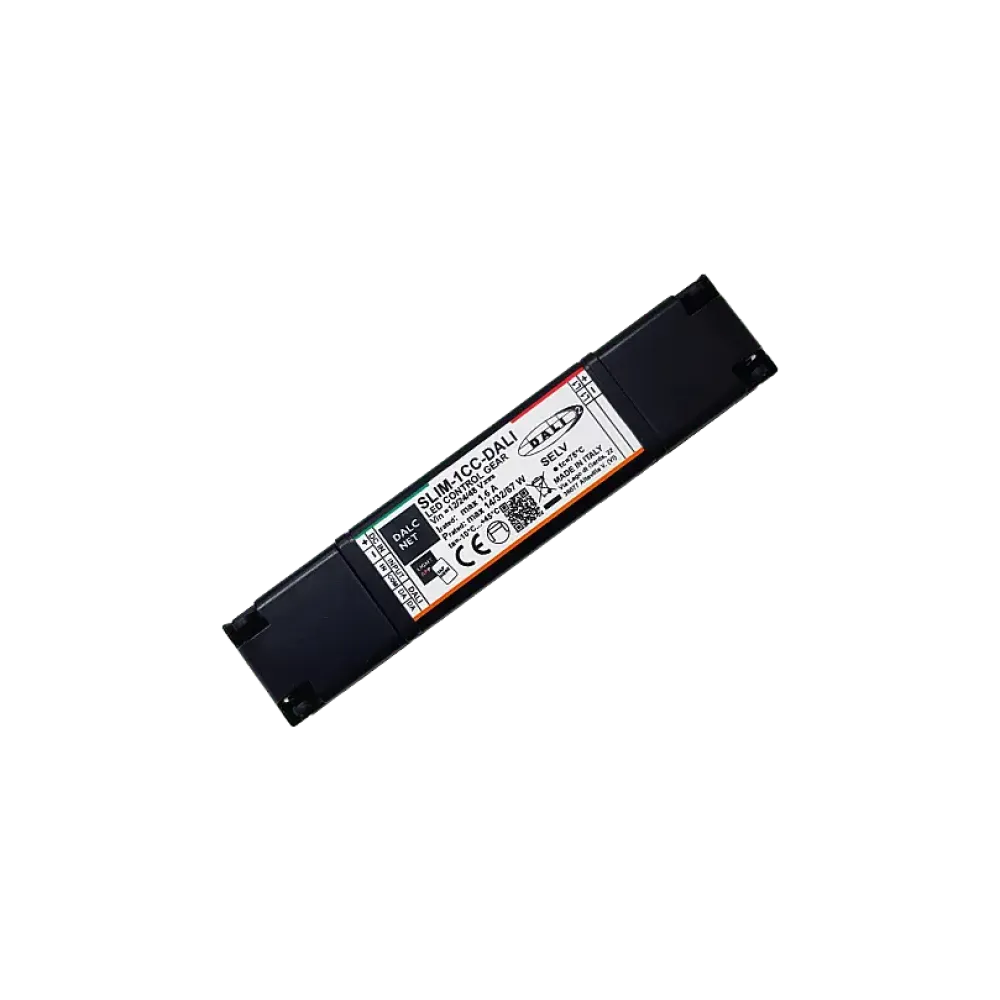

1 channel DALI2 LED dimmer constant current, input 12-48VDC, output 1.6A

SLIM-1CC-DALI is a 1-channel hybrid modulated constant current (CC) LED dimmer that can be connected to a SELV constant voltage supply (12 ÷ 48) Vdc. The hybrid modulation consists of an intelligent choice between amplitude modulation (AM) and pulse width modulation (PWM), depending on the current supplied by the output stage: typically AM modulation works for high output currents (> 350 mA), instead of PWM modulation, which applies to lower currents. The dimmer is suitable for controlling loads such as spotlights and white, single-color LED modules with constant current and can be controlled via the digital protocol DALI (Digital Addressable Lighting Interface). SLIM-1CC-DALI can supply a maximum output current of 1.6 A and has the following detection and protection functions: Open-circuit and short-circuit detection, overvoltage and undervoltage protection, reverse polarity protection and input fuse.

With the Dalcnet LightApp© mobile application and smartphones equipped with Near Field Communication (NFC) technology, it is possible to configure several parameters when the device is switched off, including the maximum output current, the setting curve and the maximum/minimum brightness levels. Dalcnet LightApp© can be downloaded free of charge from the Apple APP Store and Google Play Store.
