About the product

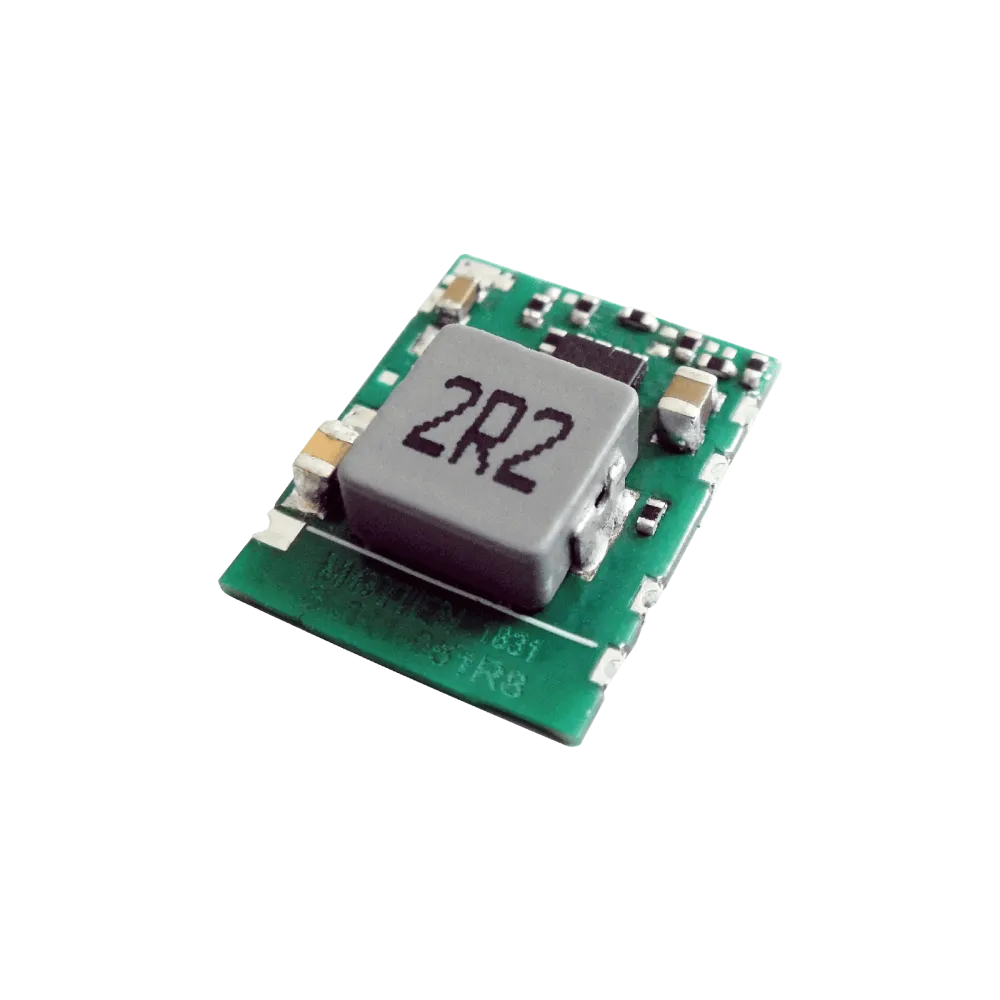

0.5A DC/DC-Converter, Input 14…72V, Output 7.2V
Technical data
- SMD Package and full SMD Technology
- Efficiency 92%
- Excellent Line/Load Regulation
- Adjustable Output Voltage
- Continuous Short Circuit Protection
- Remote ON/OFF Control
- High Voltage Input range up to 72Vdc
- 3 Years Warranty
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 7.2 V |
| Manufacturer | Motien |
| Application | ITE/AV |
| Height | 5 mm |
| Width | 11.8 mm |
| Length | 19.5 mm |
| Package / case | SMD10 |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Unregulated |
| I/O isolation | Non isolated |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 14-72 V |
| Nominal input voltage (VDC) | 15-48 V |
| Output current | 500 mA |
| Power | 3.6 W |
| Manufacturer warranty | 3 years |
Data sheets
