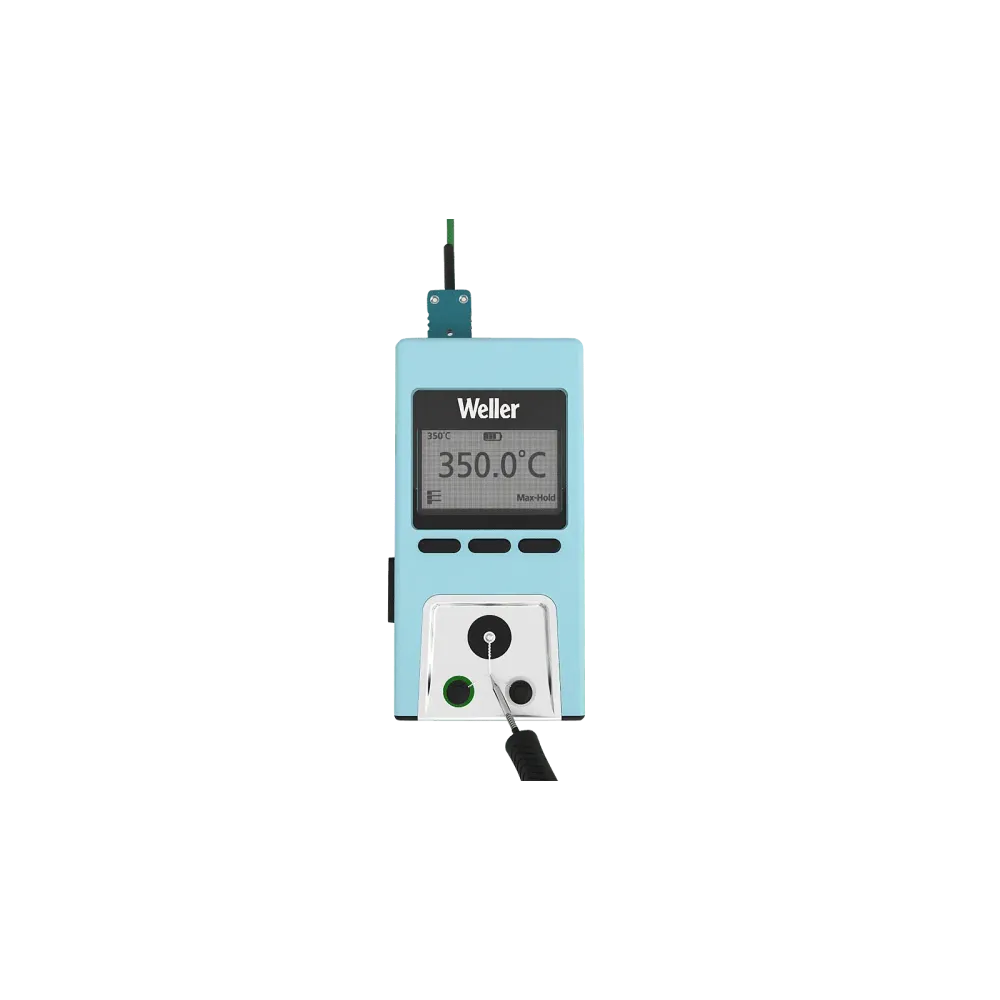

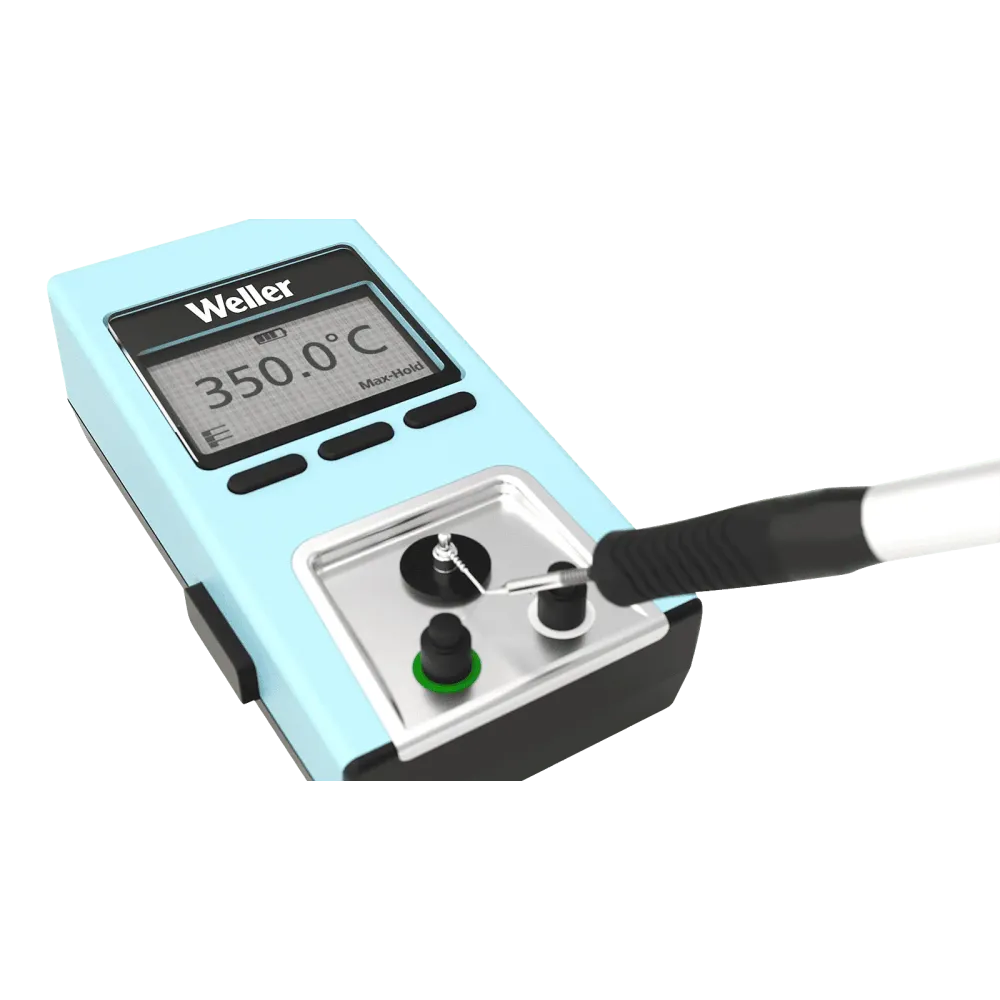

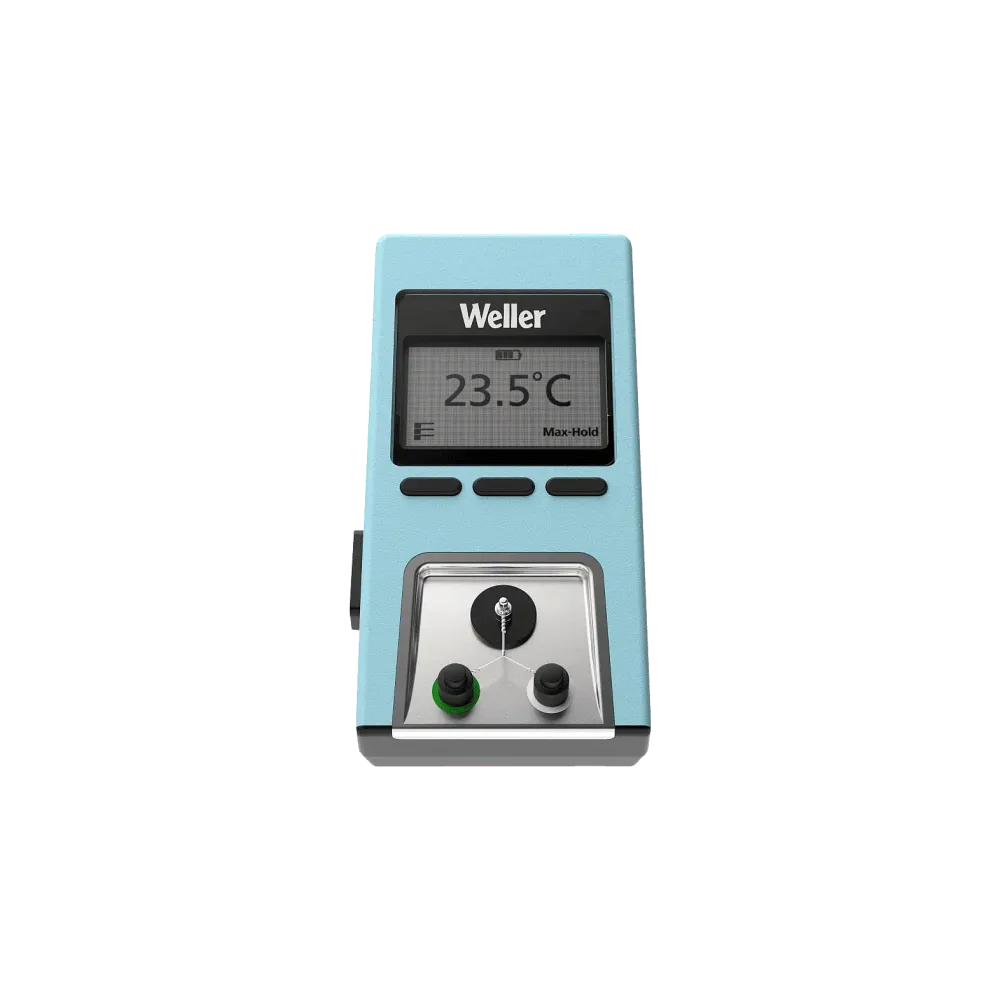

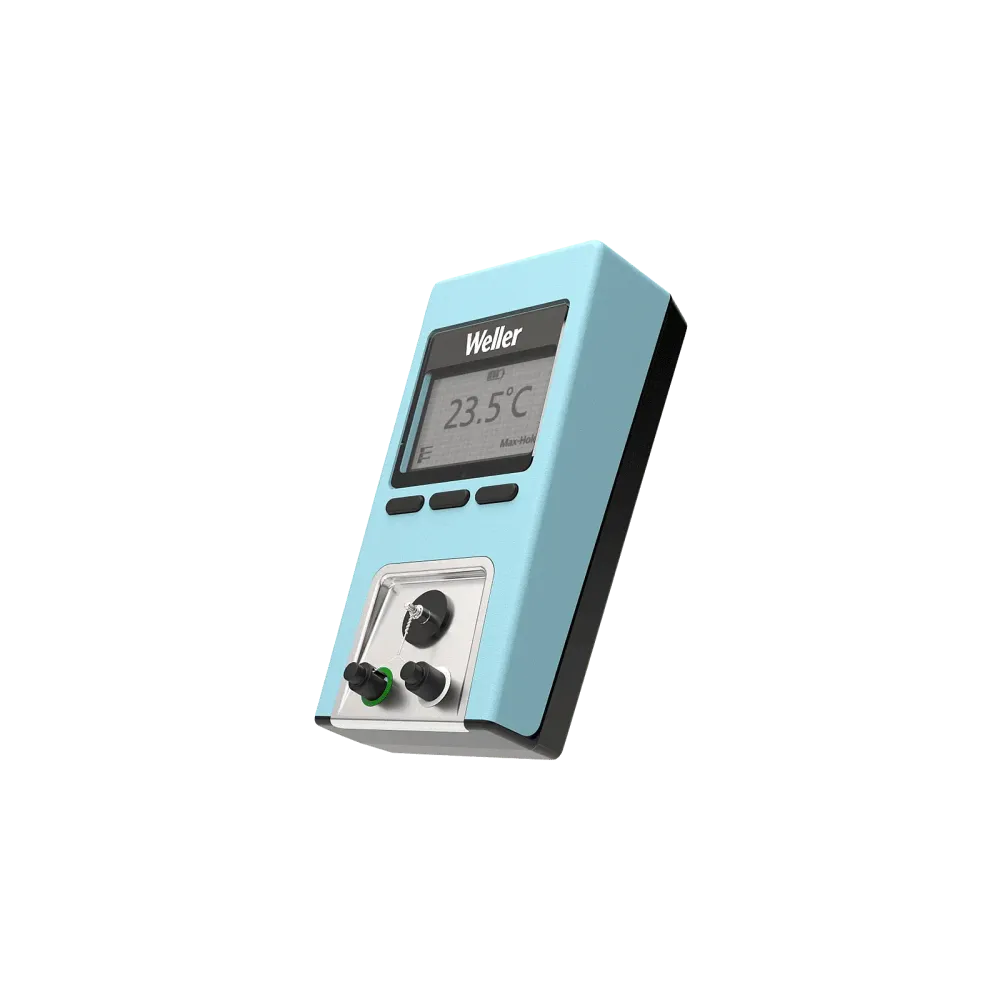

WCU temperature measuring device

The WCU from Weller is a compact, high-precision temperature measuring device for fast and accurate temperature measurement. The WCU has been strategically designed for users who need to take a temperature measurement quickly and easily with the highest accuracy. It has a large display without backlight.

Technical data

• High mobility The battery-operated, high-precision temperature measuring device from Weller with its compact design can be easily used at different workstations
• ESD-safe The high-precision temperature measuring device WCU from Weller is ESD-safe
• Intuitive navigation Digital display for quick change of temperature unit between °C and °F and other functionalities. The values are easy to read on the large display without backlighting.
• Max Hold function The WCU display shows/holds the maximum measured temperature.
• Counting function for temperature measurement The number of peak temperature measurements is counted automatically. This function can be useful for checking the sensors.
• Replacement sensor WCU 10 pcs. T0058771712
• Low energy consumption Auto switch-off timer saves battery charge and switches the device off after 10 minutes without use

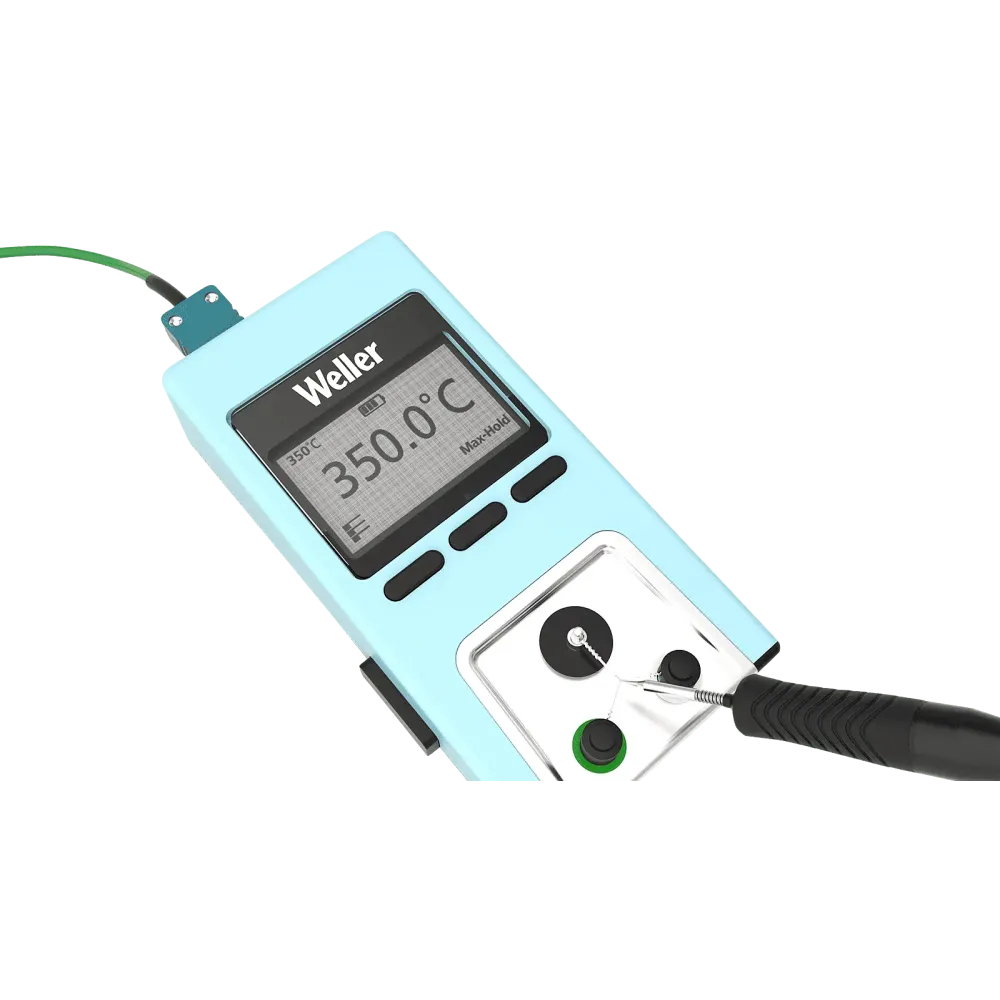

• Simultaneous use of thermocross and thermocouple Simultaneous monitoring of the temperatures of the soldering tip and solder bath. (Weller thermocouple type K Ø 0, 1 mm T0058755782) (Weller thermocouple type K Ø 0, 5 mm T0053119099)
• Quick and easy measurement Effortless auto-calibration in less than 10 seconds so the operator can focus on the important soldering tasks and get a precise temperature for best productivity. The auto-calibration function can be used with the following devices: WX 1, WX 2, WXD 2, WXA 2, WXR 3, WXsmart NOTE: An RS-232 cable (order number: T0058764710) must be purchased separately for the auto-calibration function
• High-precision temperature measuring device Fast and accurate temperature measurements
