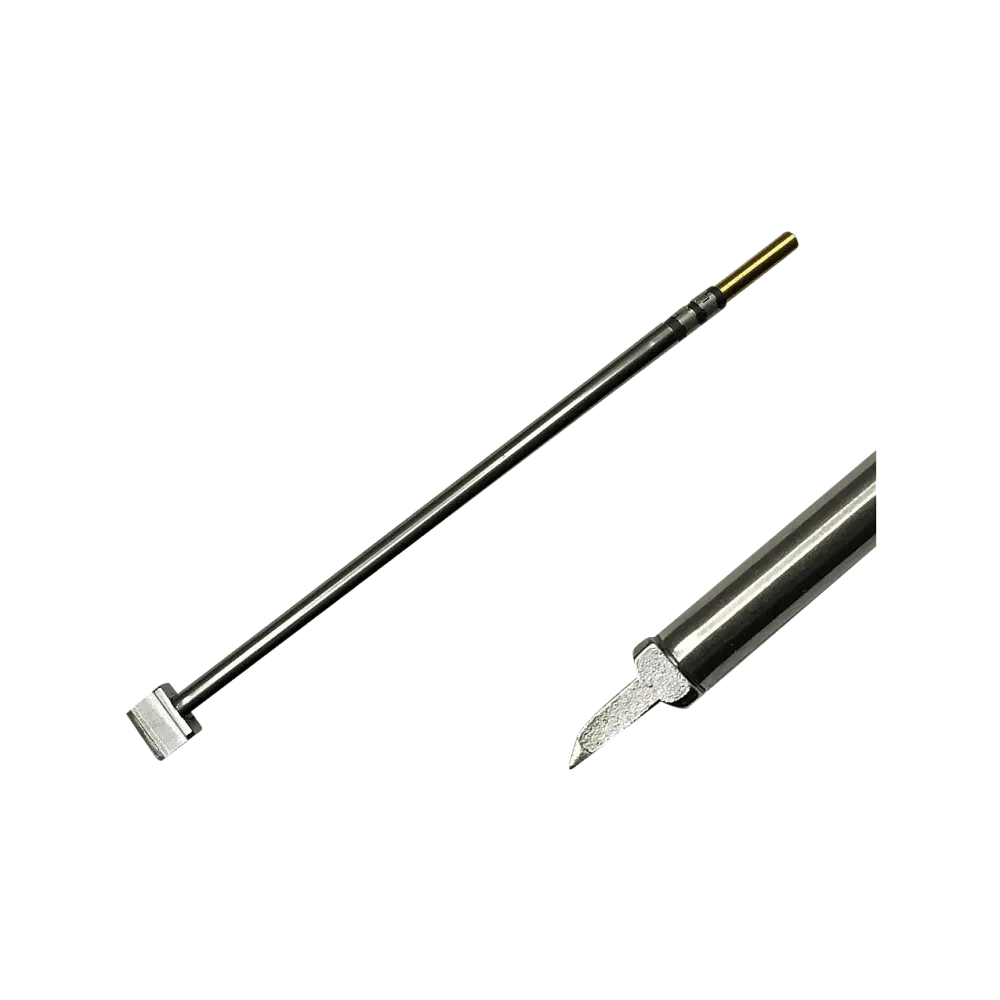

SMC - Rework soldering blade 10.59 x 9.19 mm, Series 700

CVC, SMC soldering tips are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 4 temperature ranges: 600 series nominal 330 ˚C, 700 series nominal 390 ˚C, 800 series nominal 440 ˚C and 900 series nominal 470 ˚C.The temperature/series is designated by the first digit in the numerical part of the part number, e.g. 600 are all CVC-/SMC-0xx, 700 series are CVC-/SMC-7xx, 800 series are CVC-/SMC-8xx and 900 series are CVC-/SMC-9xx. Metcal recommends the 700 series for most applications. The 600 series for low power or low temperature applications and the 800/900 series for high temperature and thermally demanding applications. They can be used with leaded and lead-free solder. Metcal's SmartHeat® technology automatically adjusts the power levels for each soldering process.
