About the product

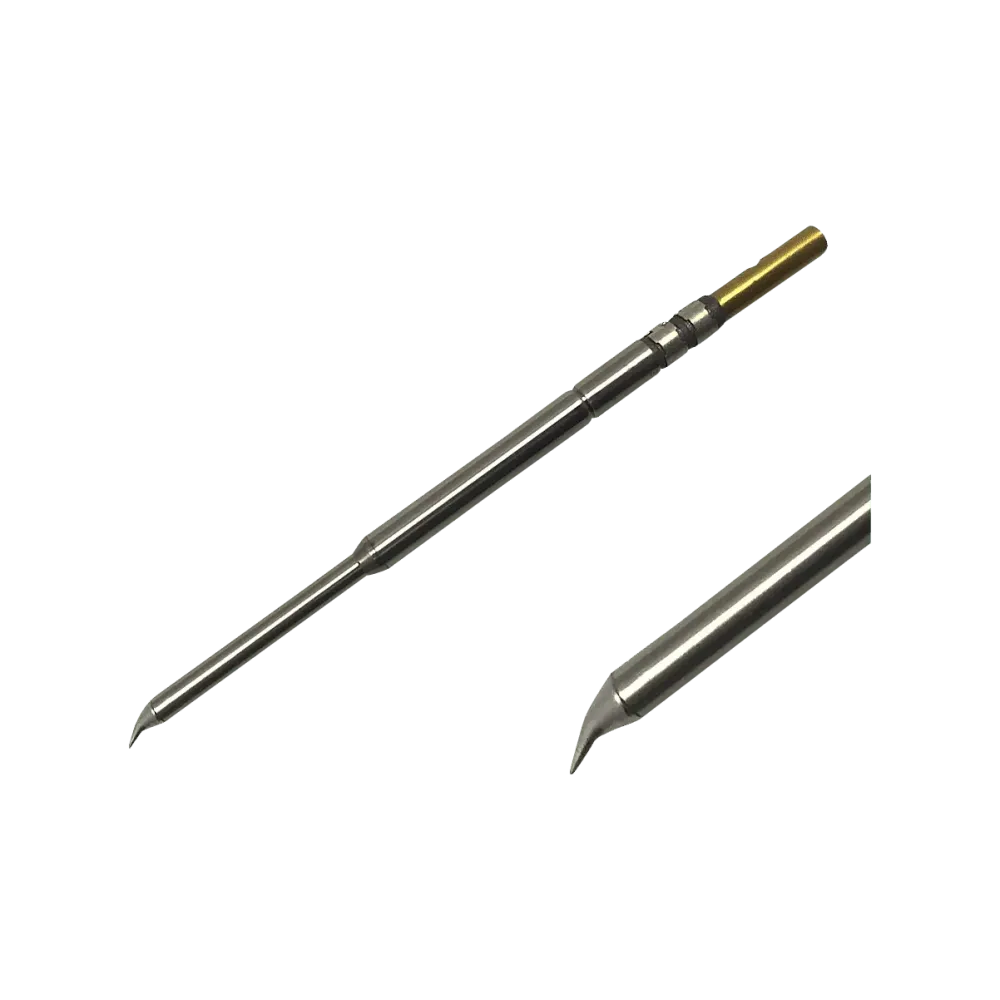

UFC ultra-fine soldering tip cartridges are the standard soldering tip program for the Metcal soldering systems of the CV-5200 and CV-500 series. UFC cartridges are available in the temperature 700 series with a nominal 380 ˚C for standard applications and in the temperature 600 series with a nominal 330 ˚C for temperature-sensitive applications.
Metcal recommends the UFC cartridges for small components or densely populated PCBs. They can be used with leaded and lead-free solder. The Metcal "SmartHeat® Technology" automatically adjusts the power during each soldering process.
Product specifications
| Manufacturer | Metcal |
| Tip shape | Conical |
| Tip width | 0.2 mm |
| Compatibility | CV-H2-UF |
| Tip length | 5.5 mm |
| Tip/nozzle type | UFC |
