UltiMod Power Pac 600W 4-Slots

Delivery and packaging at your place between Jul 4 and Aug 8 2025

Add to cart

About the product

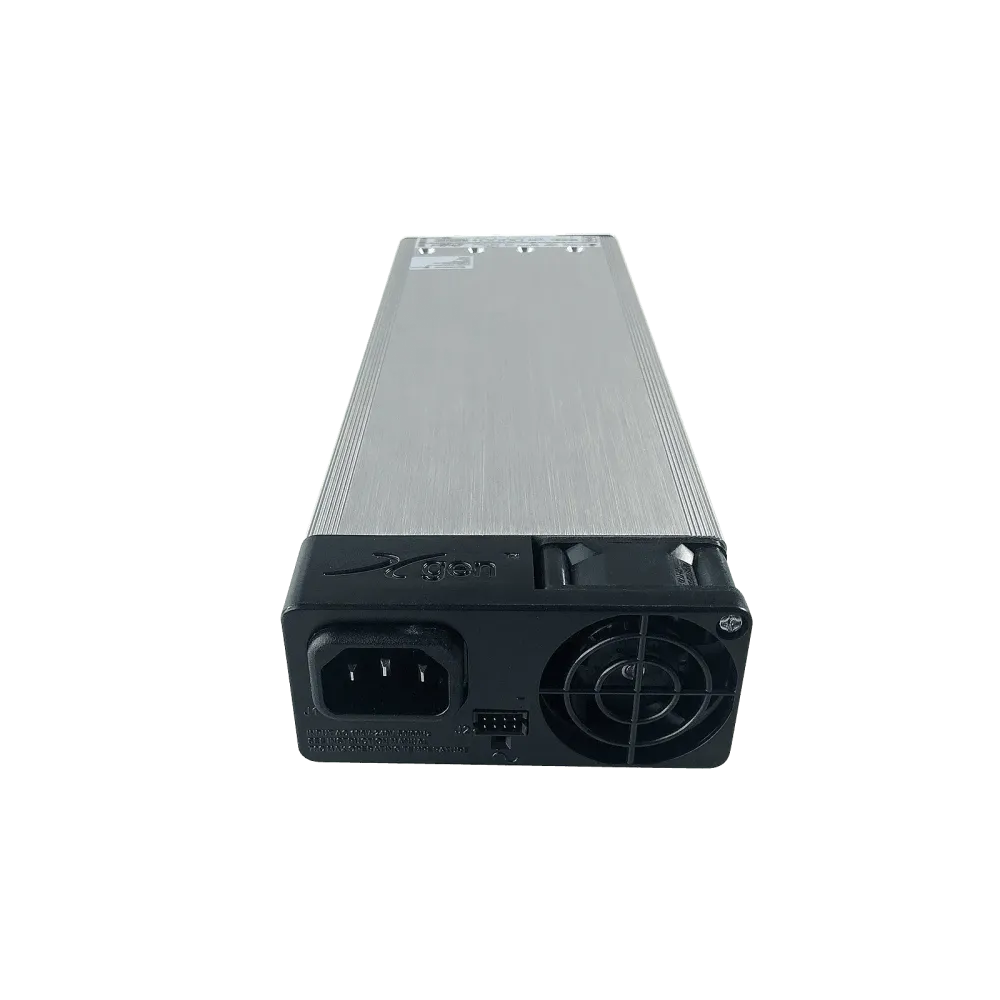

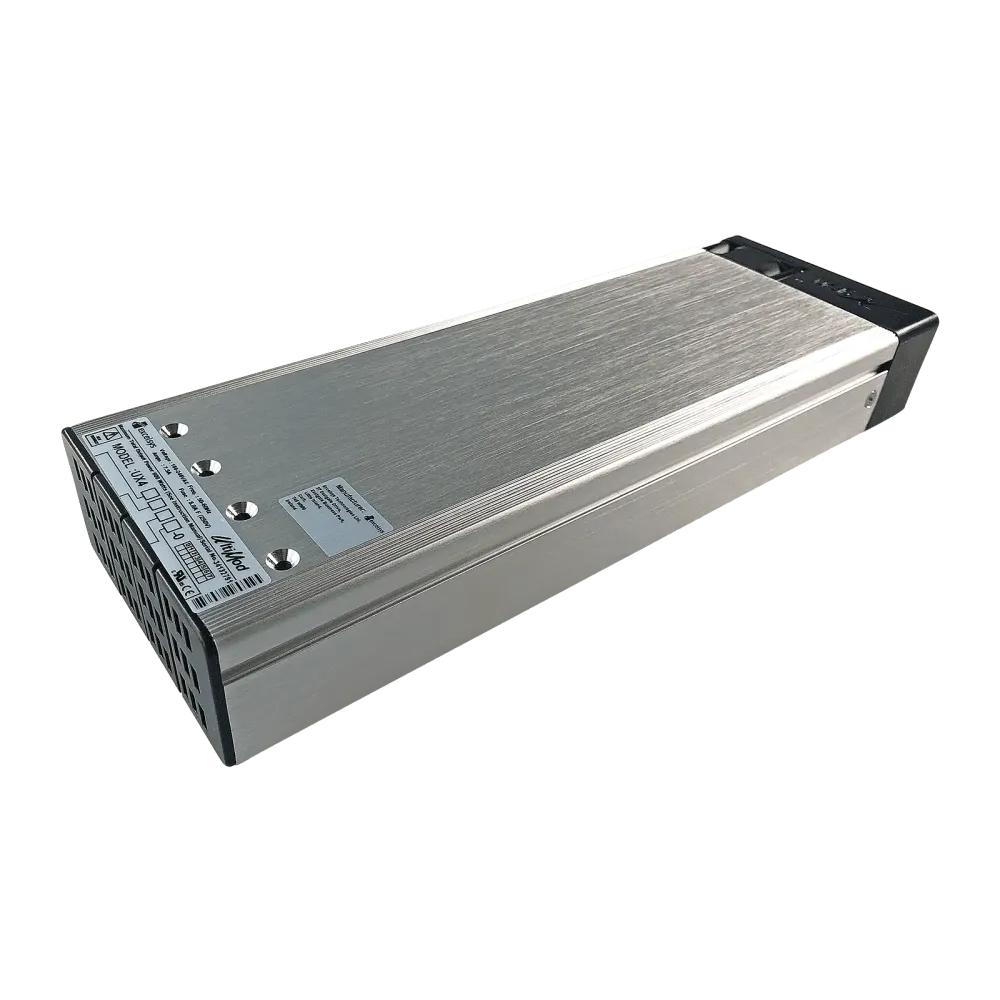

The UltiMod series from Advanced Energy combines technical excellence with logistical simplicity to exceed the most demanding requirements.

The UX4 delivers up to 600 W and can be equipped with up to four PowerMods. This allows flexible configuration of up to 8 independent output voltages.

Highlights

up to 92% efficiency
Low noise fan
Dual certification for medical and industrial applications
Field-configurable and extremely flexible

DC modules

Single Output Module

Module	Vdc Nominal	Setting range	Trim range	Imax (A)	Performance
XgA	12.0	10.8..15.6	-	12.5	150
XgB	24.0	19.2..26.4	-	8.3	200
XgC	36.0	28.8..39.6	-	5.6	200
XgD	48.0	38.5..50.4	-	4.2	200
XgG	2.5	1.5..3.6	1.15..3.6	40.0	100
XgH	5.0	3.2..6.0	1.5..6.0	36.0	180
XgJ	12.0	6.0..15.0	4.0..15.0	18.3	220
XgK	24.0	12.0..30.0	8.0..30.0	9.2	220
XgL	48.0	28.0..58.0	8.0..58.0	5.0	240
Xg1	2.5	1.5..3.6	1.15..3.6	50.0	125
Xg2	5.0	3.2..6.0	1.5..6.0	40.0	200
Xg3	12.0	6.0..15.0	4.0..15.0	20.0	240
Xg4	24.0	12.0..30.0	8.0..30.0	10.0	240
Xg5	48.0	28.0..58.0	8.0..58.0	6.0	288
