3192W Power supply unit 24V/133A, CAN bus

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

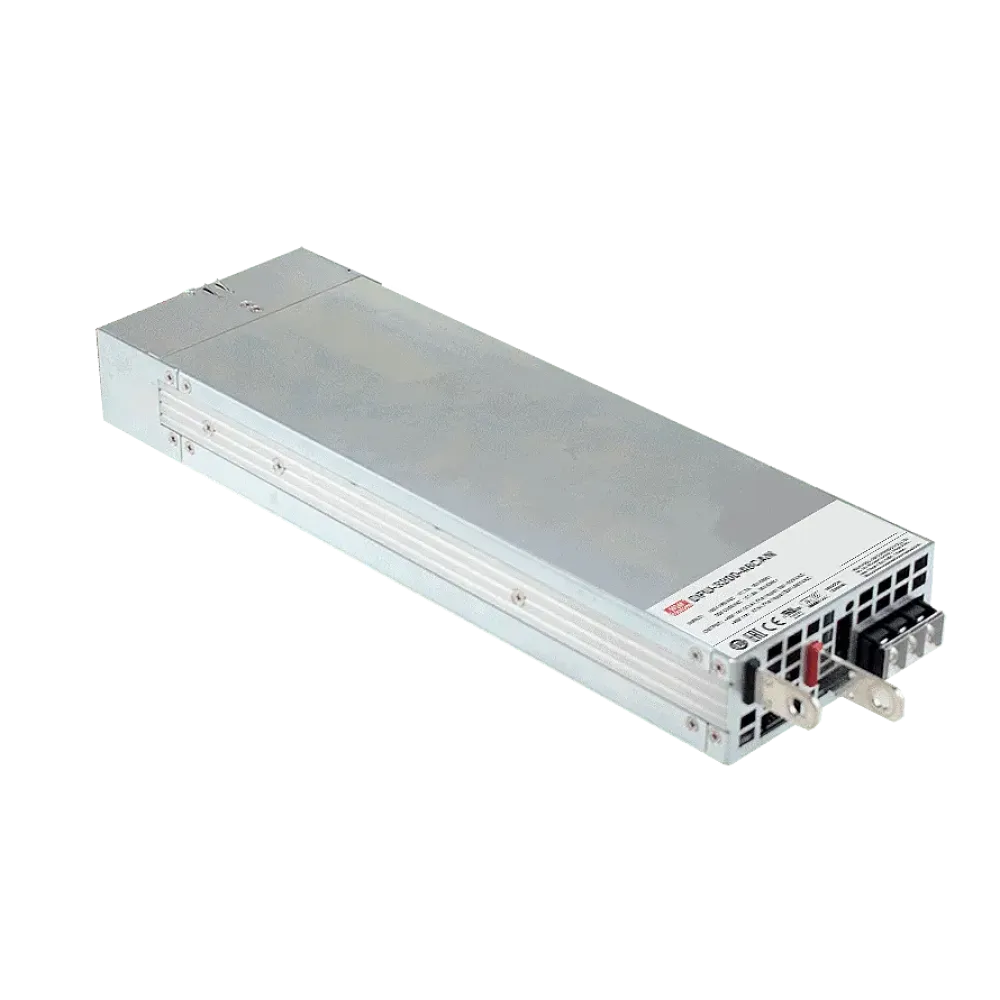

DPU-3200-24 is a 3.2kW power supply unit with a 1U profile and a very high power density. Equipped with numerous functions such as parallel function, remote ON-OFF, 5V and 12V auxiliary voltages, system integration is made easier.

Technical data

Input voltage 90 to 264Vac (derating at input <180Vac)
with active PFC
Very high efficiency up to 94.5%
Remote Sense and Remote On/Off functions integrated
Auxiliary circuit 12V/0.8A and 5V/0.3A
Output voltage can be trimmed between 50 - 125% using an external control signal
Output current can be trimmed between 20 - 100% using an external control signal
Current sharing (4+1) up to 16kW
Alarm signal outputs (TTL open collector signal): DC OK, temperature alarm
Operating temperature range from -30°C to +70°C (derating from +50°C)
CAN bus interface
Dimensions 325.8 x 107 x 41mm (L x W x H)

Product specifications

Output voltage (VDC)	24 V
Status signals	DC OK signal, temperature alarm
Minimum VDC setting range	12 V
Maximum VDC setting range	30 V
Additional functions	5VDC auxiliary output, switchable in parallel
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Length	325.8 mm
Power	3192 W
Protection class	Class I
Application	ITE/AV
Width	107 mm
Height	41 mm
Input voltage range (VAC)	90-264 V
Manufacturer	MEAN WELL
Control	CAN bus
