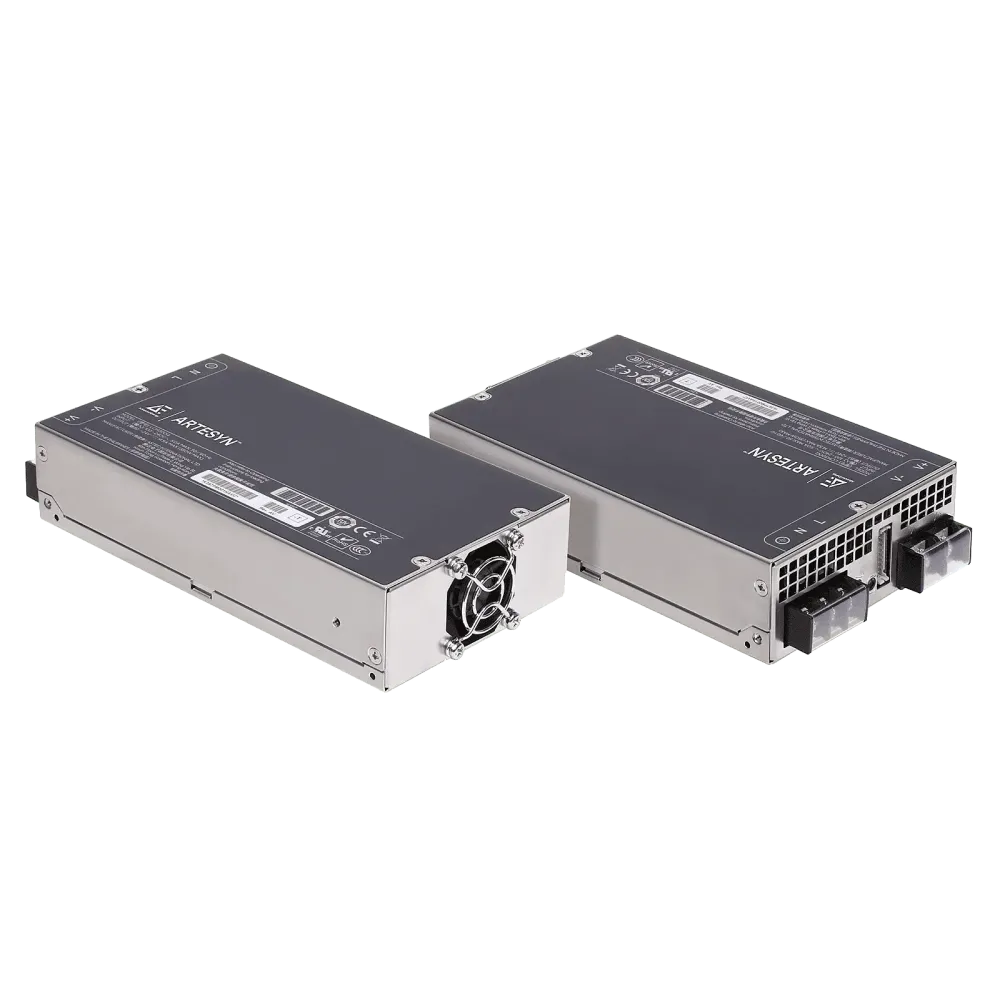

300W medical power supply 24Vdc/12.5A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.

Technical data

310Watt output power
Dimensions 177.8 x 101.6 x 40.9mm
Industry/Medical Safety
No power reduction with 85Vac input
Ambient temperature -40°C..70°C with derating
Option 5Vdc @2A standby
Efficiency 91%
Variable speed "Smart Fans"
I2C / PMBus
DSP controlled
Conformal coating option
Wide output voltage adjustable
Margin programming
ORing FET
PMBus compliant
Warranty 3 years
Manufacturer Artesyn

Product specifications

Output voltage (VDC)	24 V
Control	PMBus
Minimum VDC setting range	19.2 V
Additional functions	Parallel switchable
Control signals	Remote sense
Maximum VDC setting range	28.8 V
Height	40.9 mm
Length	177.8 mm
Manufacturer	Artesyn
Width	101.6 mm
Protection class	Class I
Application	ITE/AV, Medical
Input voltage range (VAC)	90-264 V
Power	300 W
Status signals	AC OK signal, DC OK signal
