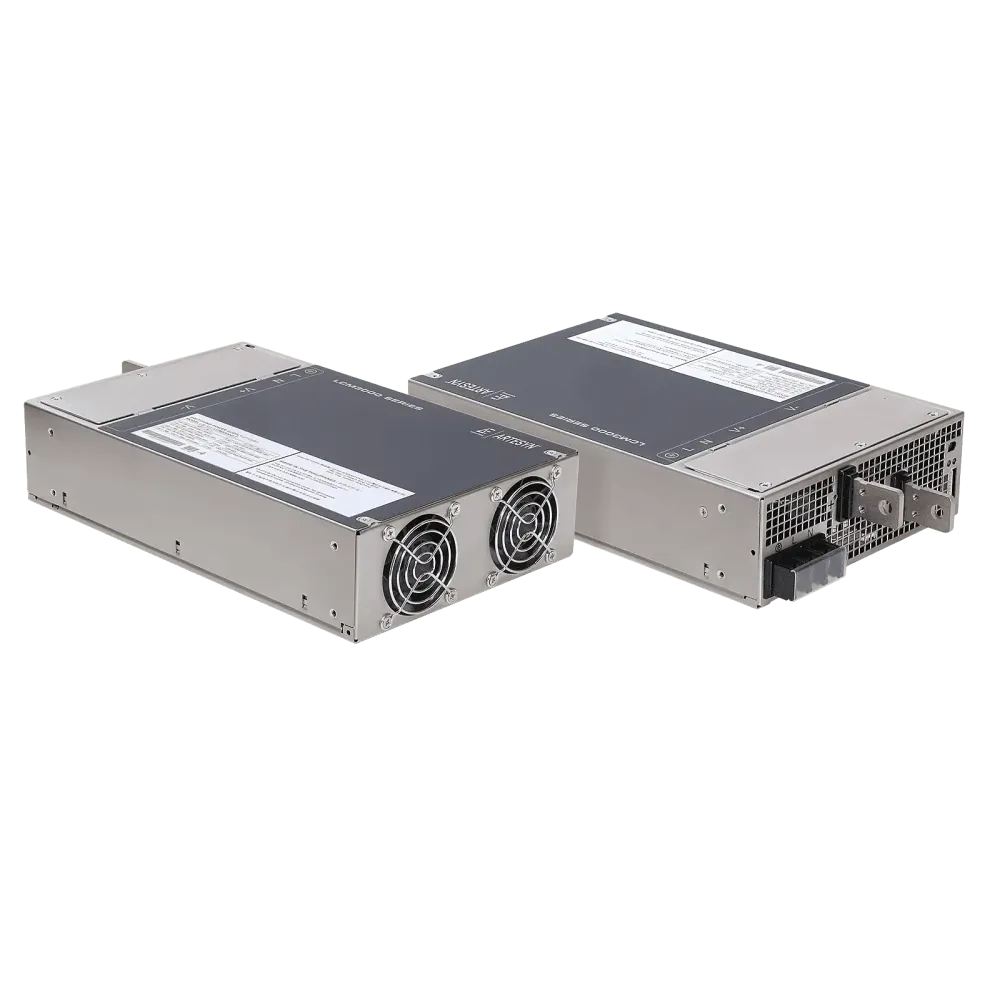

3000W medical power supply 24Vdc/125A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.

Technical data

3000Watt output power
Dimensions 282.6 x 177.8 x 63.5mm
Industry/Medical Safety approval
No power reduction with 85Vac input
Ambient temperature -40°C..+70°C with derating
5Vdc @2A standby
Efficiency 90%
Variable speed "Smart Fan"
I2C / PMBus
DSP controlled
Option conformal coat
Output voltage range adjustable ±25%
Output voltage programming from 20%..125%
VAR configurable to any output voltage of a single unit
Warranty 5 years
Manufacturer Artesyn

Product specifications

Output voltage (VDC)	24 V
Status signals	AC OK signal, DC OK signal
Control	PMBus
Minimum VDC setting range	4.8 V
Additional functions	5VDC auxiliary output, switchable in parallel
Control signals	Remote sense
Length	282.6 mm
Manufacturer	Artesyn
Width	177.8 mm
Height	63.5 mm
Power	3000 W
Protection class	Class I
Application	ITE/AV, Medical
Input voltage range (VAC)	90-264 V
Maximum VDC setting range	24 V
