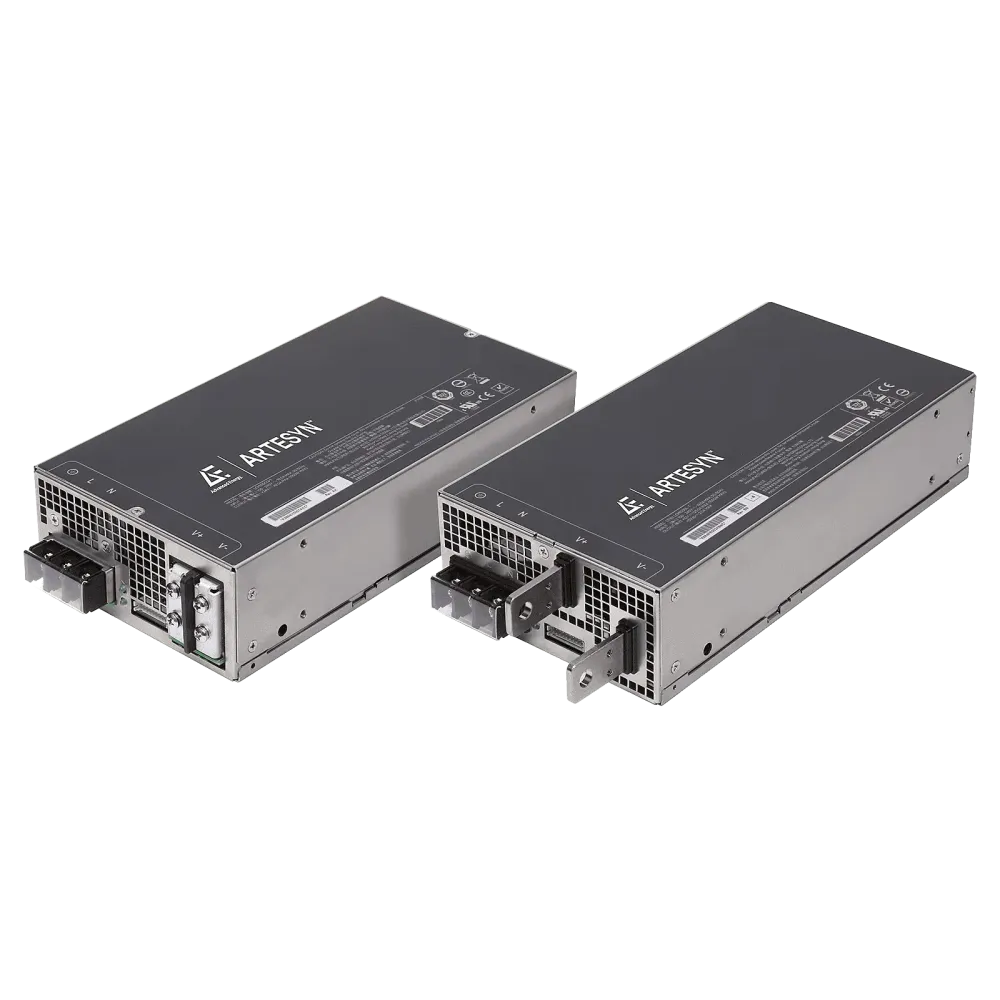

1000W medical power supply 24Vdc/41.7A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.

Technical data

1000Watt output voltage
Dimensions 254 x 114.3 x 60.96mm
Industry/medical safety approval
No power reduction with 85Vac input
Ambient temperature -40°C..+70°C with derating
Optional 5Vdc @2A standby
Efficiency 90%
Variable speed "Smart Fan"
DSP controlled
Full power with reverse fan
Option conformal coating
Output voltage range adjustable ±10%
Margin programming
ORing FET
Low acoustic noise level
Warranty 3 years
Manufacturer Artesyn

Product specifications

Output voltage (VDC)	24 V
Additional functions	5VDC auxiliary output, switchable in parallel
Maximum VDC setting range	26.4 V
Control signals	Remote sense
Minimum VDC setting range	21.6 V
Height	60.96 mm
Manufacturer	Artesyn
Length	254 mm
Protection class	Class I
Width	114.3 mm
Application	ITE/AV, Medical
Power	1000 W
Input voltage range (VAC)	90-264 V
Status signals	AC OK signal, DC OK signal
