600W medical power supply 24Vdc/25A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

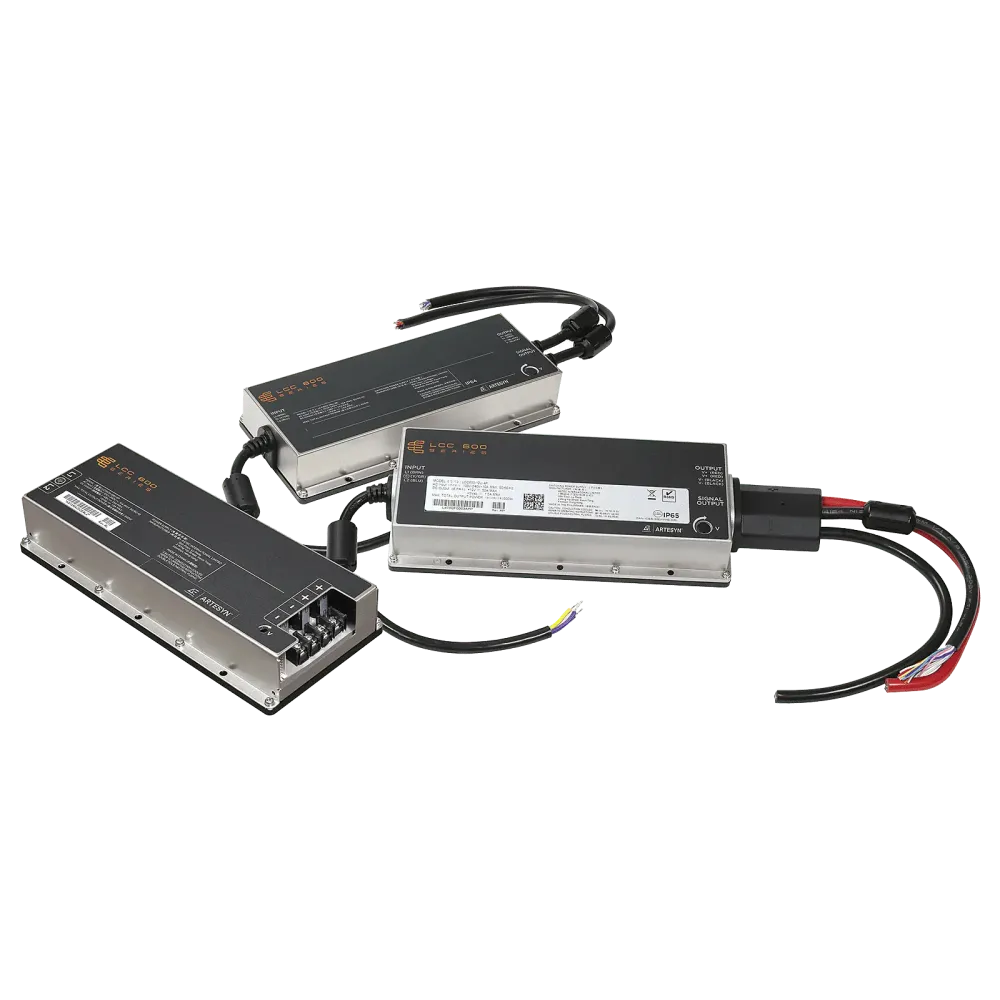

Artesyn's LCC600 series from Advanced Energy consists of 4 voltage variants with an output voltage of 12V, 28V, 36V or 48Vdc and is fully conduction cooled. Each variant also has a 5Vdc standby output that can supply up to 1.5A. Rated at 600Watt, these power supplies feature a thermal baseplate and are capable of delivering full output power over a wide operating temperature range of -40°..+85°C. The main output is adjustable for maximum application flexibility. The 48Vdc variant, for example, can be set from 44V..54Vdc and has a maximum current rating of 12.5A.

Technical data

600Watt output at elevated ambient temperature
Wide ambient temperature range -40°C..+85°C with cooling plate
Output voltagea adjustable
Remote On/Off
AC OK and DC OK signals
5Vdc standby
Active current share
Conduction cooled/fanless
I2C / PMBus
Medical and industrial safety approval
Suitable for BF applications
Active power factor correction
Option IP65
Option input 277Vac
Warranty 2 years
Manufacturer Artesyn

Product specifications

Output voltage (VDC)	24 V
Control	PMBus
Minimum VDC setting range	24 V
Maximum VDC setting range	30 V
Additional functions	5VDC auxiliary output, switchable in parallel
Control signals	Remote sense
Height	39.8 mm
Width	101 mm
Manufacturer	Artesyn
Protection class	Class I
Application	ITE/AV, Medical
Power	600 W
Input voltage range (VAC)	90-264 V
Length	228 mm
Status signals	AC OK signal, DC OK signal
