About the product

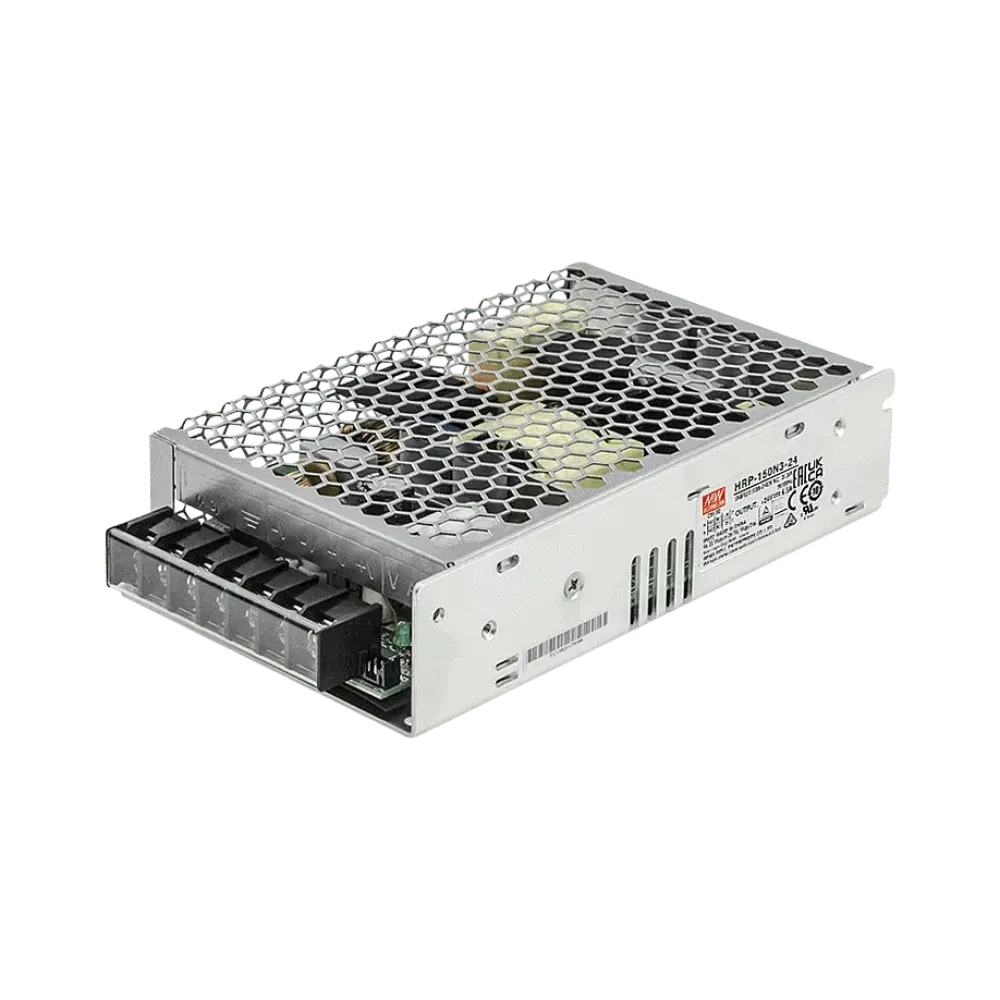

HRP-150N3-24 can deliver 3 times the power in the short term. This can cover high starting currents when starting motors or electromechanical loads.
Technical data
- Input voltage 85 to 264Vac
- Remote Sense function
- DC OK signal
- 300% peak load
- Convection cooled
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Approved for an operating altitude of up to 5000m
- Dimensions 159 x 97 x 38mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Control signals | Remote sense |
| Minimum VDC setting range | 21.6 V |
| Maximum VDC setting range | 28.8 V |
| Status signals | DC OK signal |
| Width | 97 mm |
| Length | 159 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 85-264 V |
| Height | 38 mm |
| Power | 156 W |
| Manufacturer | MEAN WELL |
| Additional functions | Peak Power |
