About the product

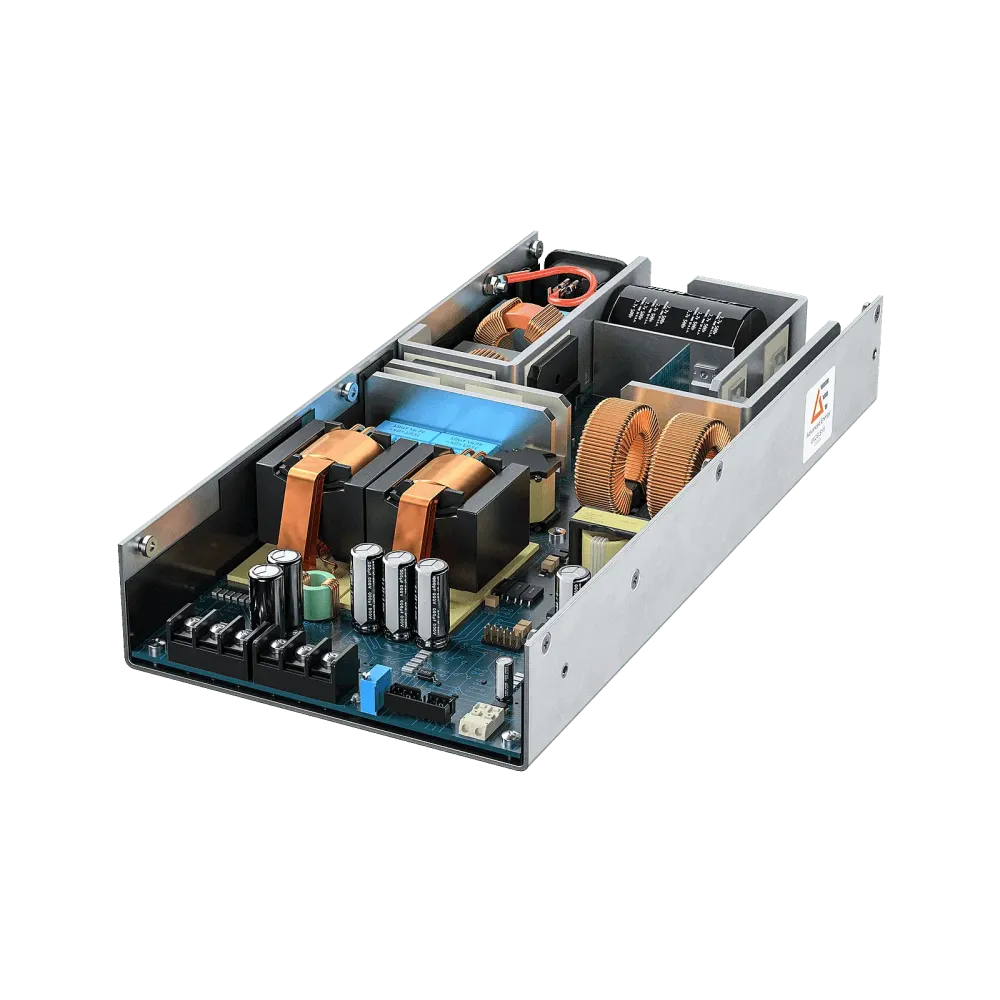

CS10S-24N-0-A is a fanless 1000W power supply unit. Ideal for applications that require a noise and vibration-free environment.
Technical data
- Input voltage 85 to 264Vac
- Efficiency up to 95
- 1000W output power with convection cooling. No thermal connection required.
- with active PFC
- Digital control and monitoring via PMBus interface
- Operating temperature range from -30°C to +85°C
- 24W / 12Vdc Auxiliary voltage
- Can be connected in parallel for higher power (N+1)
- Approved for operation up to 5000 meters altitude
- Dimensions 262 x 127 x 39.1mm (L x W x H)
- Approvals IEC62368-1
Product specifications
| Output voltage (VDC) | 24 V |
| Control | PMBus |
| Additional functions | 12VDC auxiliary output, switchable in parallel |
| Control signals | Remote ON/OFF, Remote Sense |
| Protection class | Class I |
| Height | 39.1 mm |
| Application | ITE/AV |
| Width | 127 mm |
| Manufacturer | Excelsys |
| Input voltage range (VAC) | 85-264 V |
| Power | 1000 W |
| Length | 262 mm |
| Status signals | AC OK signal, DC OK signal |
