2500W power supply 24V/104.2A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

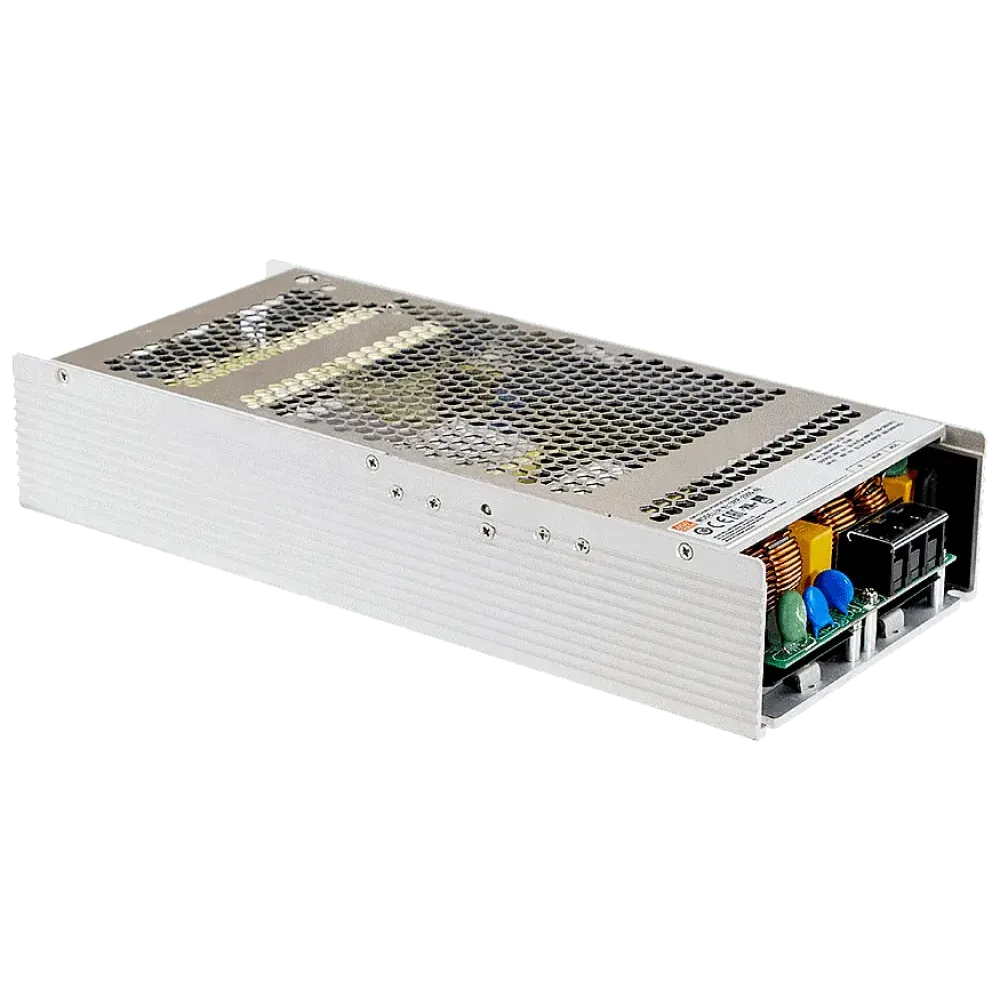

UHP-2500-24 is a compact, fanless power supply unit in a housing. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.

Technical data

Input voltage 90 to 264Vac
High efficiency up to 96
DC OK Relay contact
Remote ON/OFF
2000W with conduction cooling (without fan)
Operating temperature range from -30°C to +70°C
Approved for operation up to 5000 meters altitude
CANbus, PMbus optionally available
Dimensions 310 x 140 x 60mm (L x W x H)

Product specifications

Output voltage (VDC)	24 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Maximum VDC setting range	28.8 V
Application	Budget, ITE/AV
Additional functions	12VDC auxiliary output
Width	140 mm
Power	2500 W
Status signals	DC OK signal
Protection class	Class I
Length	310 mm
Height	60 mm
Input voltage range (VAC)	90-264 V
Manufacturer	MEAN WELL
Minimum VDC setting range	12 V
