1008W Power supply unit 24V/42A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

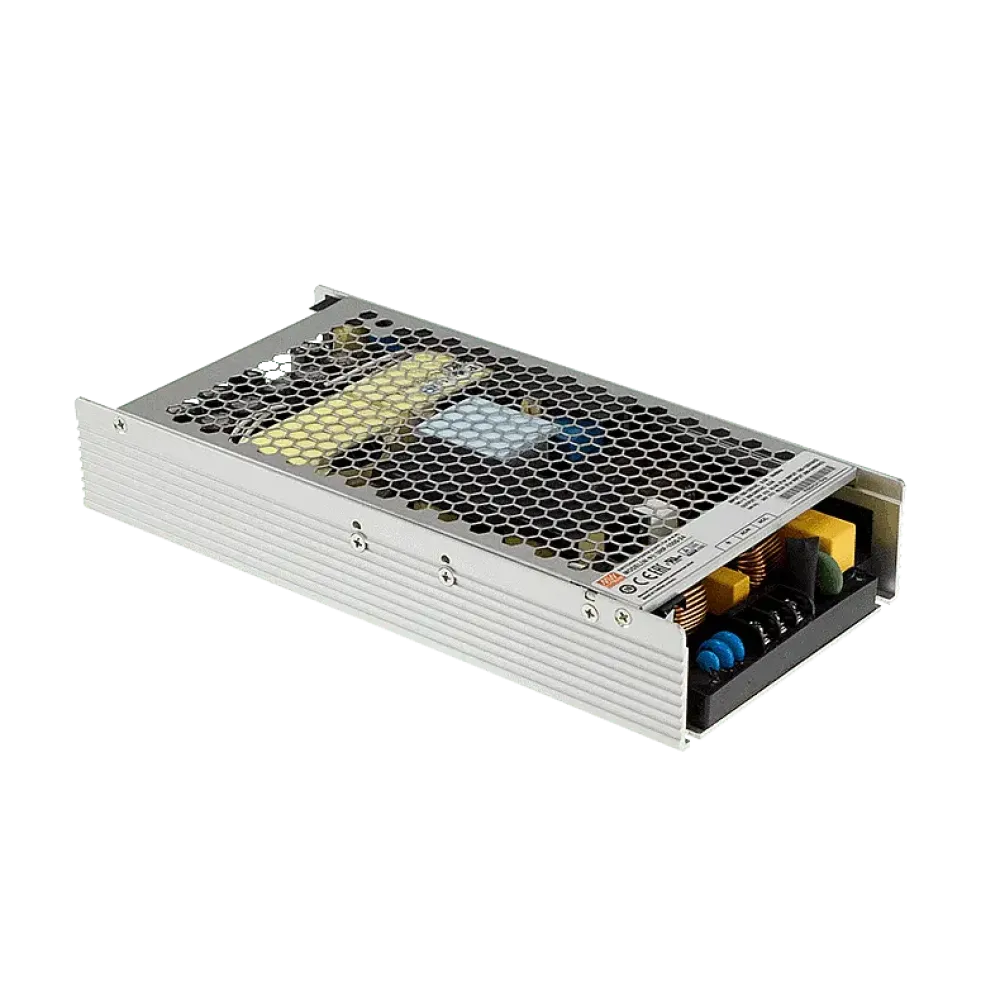

The UHP-1000-24 is a slim, fanless power supply unit in a housing with a height of just 41 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.

Technical data

Input voltage 90 to 264Vac
with active PFC
DC OK Relay contact
Remote ON/OFF
Full load operation with conduction cooling (without fan)
Operating temperature range from -30°C to +70°C
Holds surge voltages up to 300Vac for up to 5 seconds
Approved for operation up to 5000 meters altitude
Dimensions 240 x 115 x 41mm (L x W x H)

Product specifications

Output voltage (VDC)	24 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Maximum VDC setting range	28.8 V
Application	Budget, ITE/AV
Additional functions	12VDC auxiliary output
Length	240 mm
Width	115 mm
Power	1008 W
Status signals	DC OK signal
Protection class	Class I
Height	41 mm
Input voltage range (VAC)	90-264 V
Manufacturer	MEAN WELL
Minimum VDC setting range	12 V
