350W power supply 24V/14.6A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

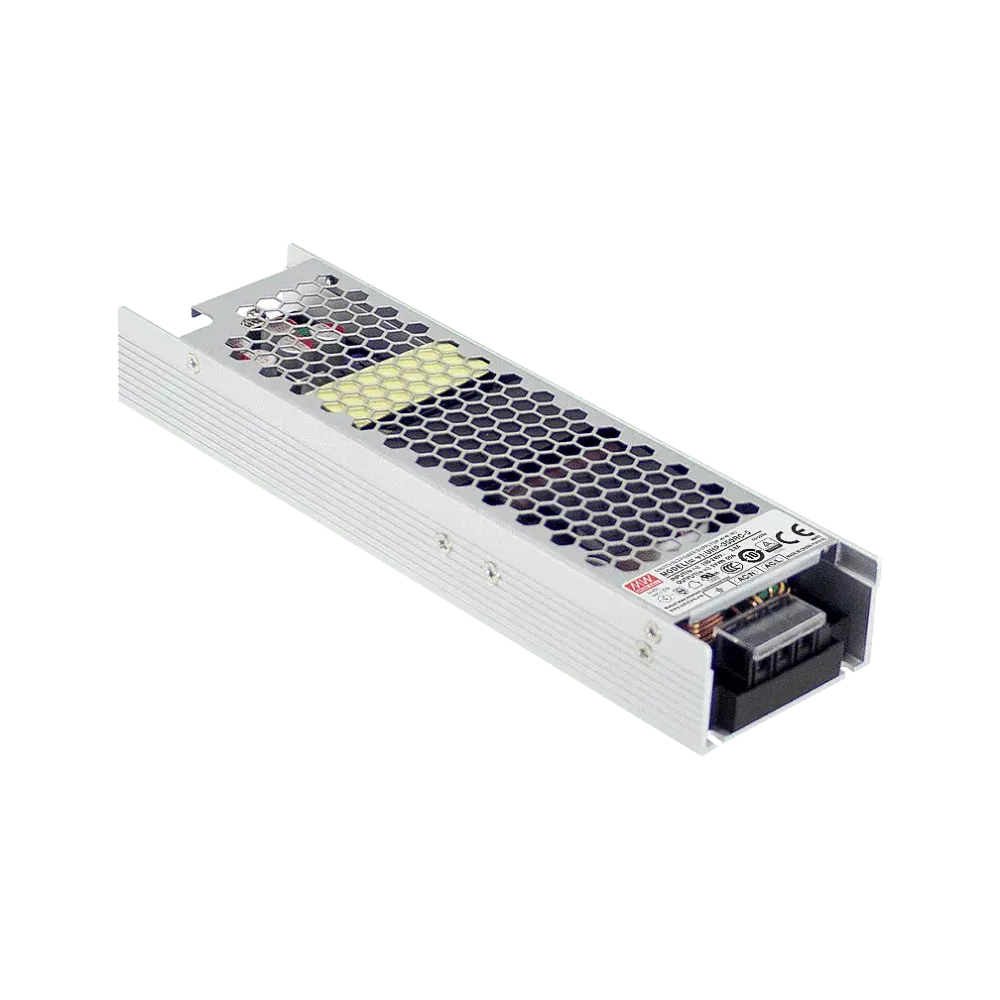

UHP-350R-24 is a slim power supply unit in a housing with a height of just 31 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more. With DC OK signal and redundancy function.

Technical data

Input voltage 90 to 264Vac
with active PFC
With DC OK signal and redundancy function.
Operating temperature range from -30°C to +70°C
Holds surge voltages up to 300Vac for up to 5 seconds
Approved for operation up to 5000 meters altitude
Dimensions 220 x 62 x 31mm (L x W x H)

Product specifications

Output voltage (VDC)	24 V
Application	Budget, ITE/AV
Minimum VDC setting range	22.8 V
Maximum VDC setting range	25.2 V
Power	350 W
Status signals	DC OK signal
Protection class	Class I
Height	31 mm
Width	62 mm
Input voltage range (VAC)	90-264 V
Length	220 mm
Manufacturer	MEAN WELL
Additional functions	Parallel switchable
