4800W 3-phase power supply 24V/200A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

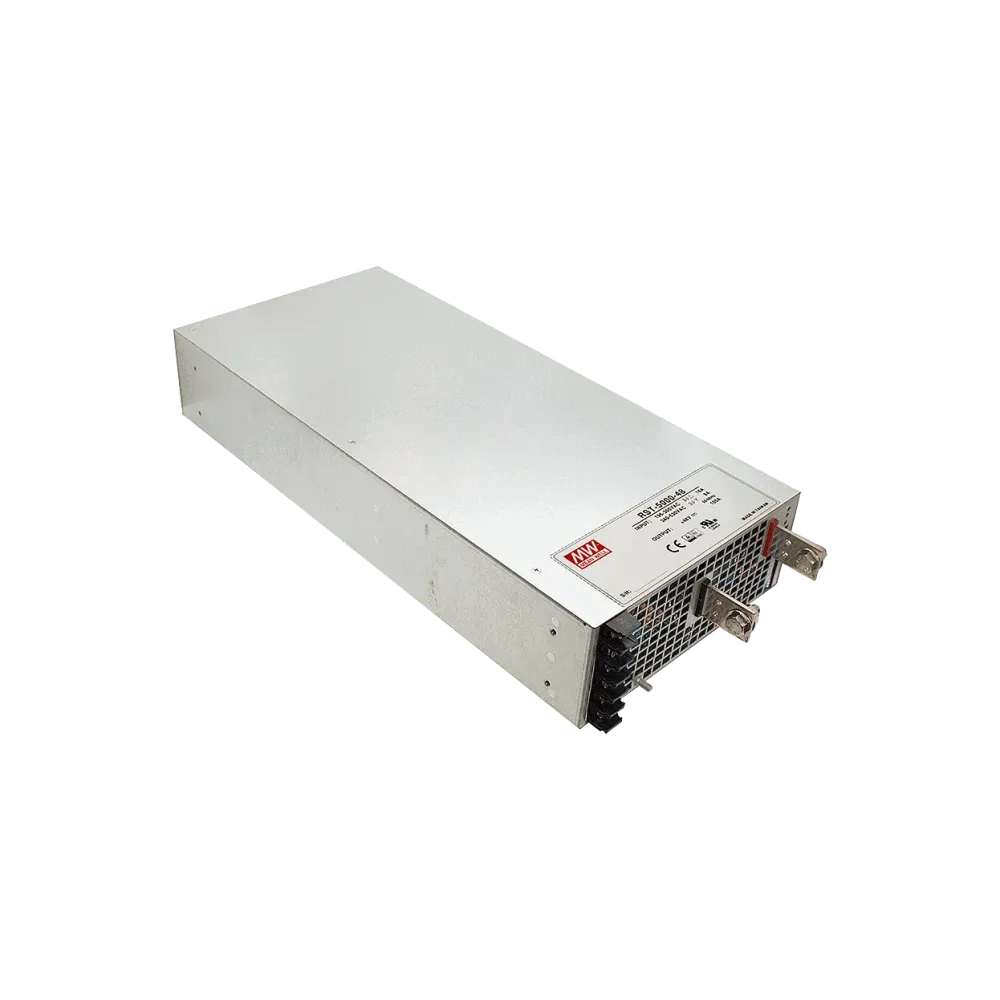

RST-5000-24 is a 5kW power supply unit with 3-phase input.

Three-phase input voltage range 196 to 305Vac (3-wire / delta connection) or 340 to 530Vac (4-wire / star connection)
With active PFC
Remote Sense and Remote On/Off functions integrated
Auxiliary circuit 12V/0.1A
Output voltage can be trimmed between 20 - 120% using an external control signal
Output current can be trimmed between 20 - 100% using an external control signal
Current sharing with up to 4 units up to 20kW
Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
Air cooling with integrated, speed-controlled DC fan
Operating temperature range from -30°C to +70°C
Dimensions 460 x 211 x 83.5mm (L x W x H)

Output voltage (VDC)	24 V
Input voltage range (VAC)	340-530 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Minimum VDC setting range	4.8 V
Additional functions	12VDC auxiliary output, switchable in parallel
Maximum VDC setting range	28.8 V
Width	211 mm
Length	460 mm
Power	4800 W
Height	83.5 mm
Application	ITE/AV
Manufacturer	MEAN WELL
Status signals	AC OK signal, DC OK signal, temperature alarm
