336W Medical power supply 24V/14A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

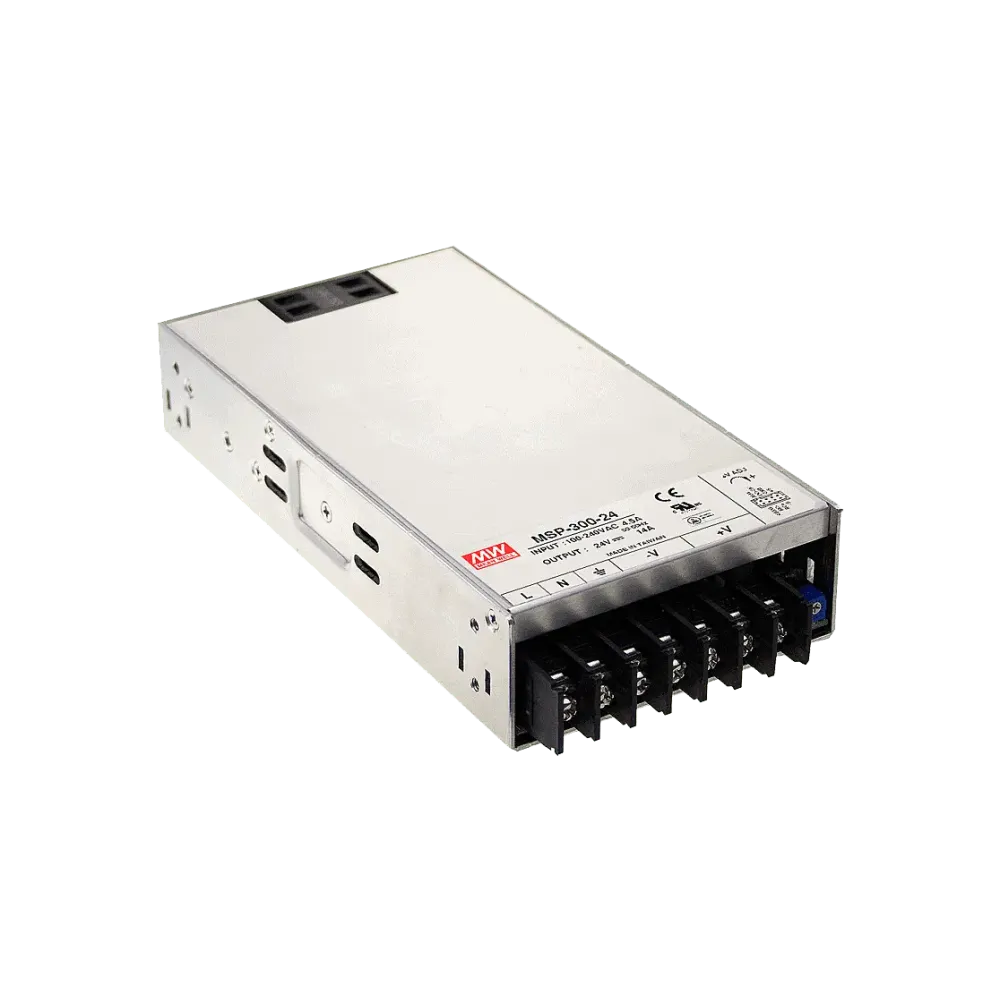

MSP-300-24 is a robust switching power supply for MOOP medical applications with integrated fan for applications with high demands on service life and reliability.

Technical data

Input voltage 85 to 264Vac
With active PFC
Power consumption at no load 0.5W
Medical approval (MOOP level)
Leakage current ≤450µA
Remote Sense function
Remote On/Off function
DC OK signal
Standby 5V/0.3A
Operating temperature range from -40°C to +70°C
Withstands surge voltages up to 300Vac for up to 5 seconds
Dimensions 199 x 105 x 41mm (L x W x H)

Product specifications

Output voltage (VDC)	24 V
Control signals	Remote ON/OFF, Remote Sense
Minimum VDC setting range	21.6 V
Maximum VDC setting range	28.8 V
Width	105 mm
Power	336 W
Application	Medical
Status signals	DC OK signal
Protection class	Class I
Input voltage range (VAC)	85-264 V
Height	41 mm
Length	199 mm
Manufacturer	MEAN WELL
Additional functions	5VDC auxiliary output
