About the product

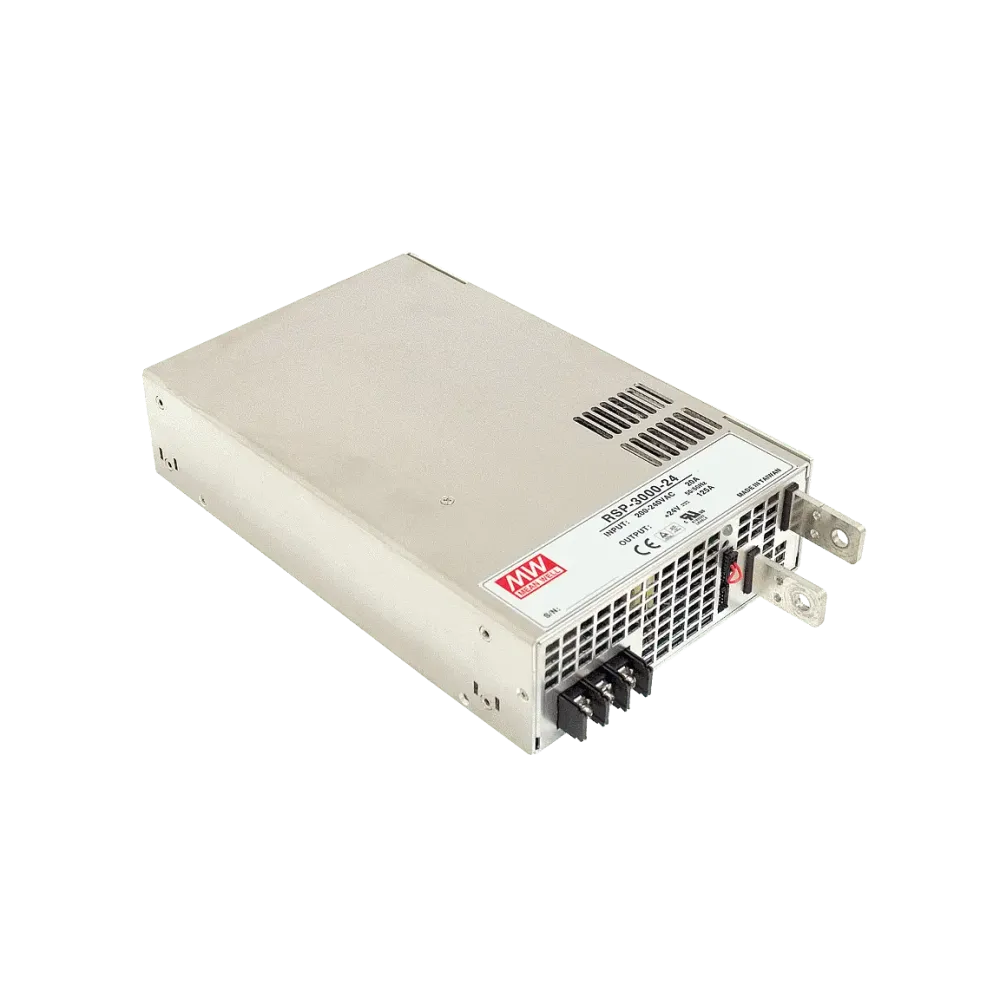

RSP-3000-24 is a power supply unit in a housing for industrial applications.
Technical data
- Input voltage 180 to 264Vac
- With active PFC
- Remote Sense and Remote On/Off functions integrated
- Auxiliary circuit 12V/0.1A
- Output voltage can be trimmed between 20 - 110% using an external control signal
- Current sharing up to 3 units
- Alarm signal output (relay contact and TTL signal)
- Air cooling with integrated, speed-controlled DC fan
- Operating temperature range from -20°C to +70°C
- Dimensions 278 x 177.8 x 63.5mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Minimum VDC setting range | 4.8 V |
| Control signals | Programmable voltage, remote ON/OFF, remote sense |
| Additional functions | 12VDC auxiliary output, switchable in parallel |
| Width | 177.8 mm |
| Height | 63.5 mm |
| Power | 3000 W |
| Length | 278 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 180-264 V |
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 28 V |
