Item ID: 43365
40W LED control gear 600mA to 1400mA/9V...54V, DALI2, AC Push, Independent
About the product

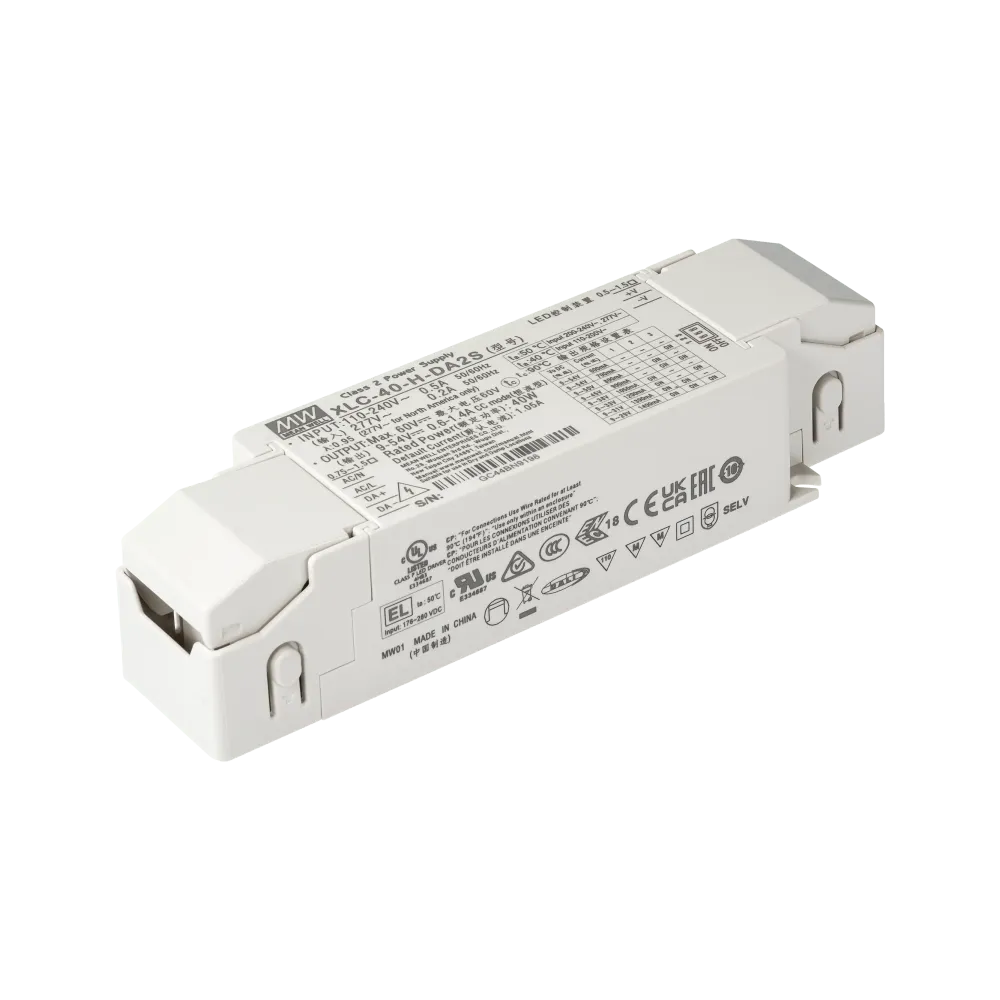

XLC-40-H-DA2 is a flexible LED driver with constant current output for direct operation of LED lighting applications. Dimmable via AC Push or DALI.
Highlights

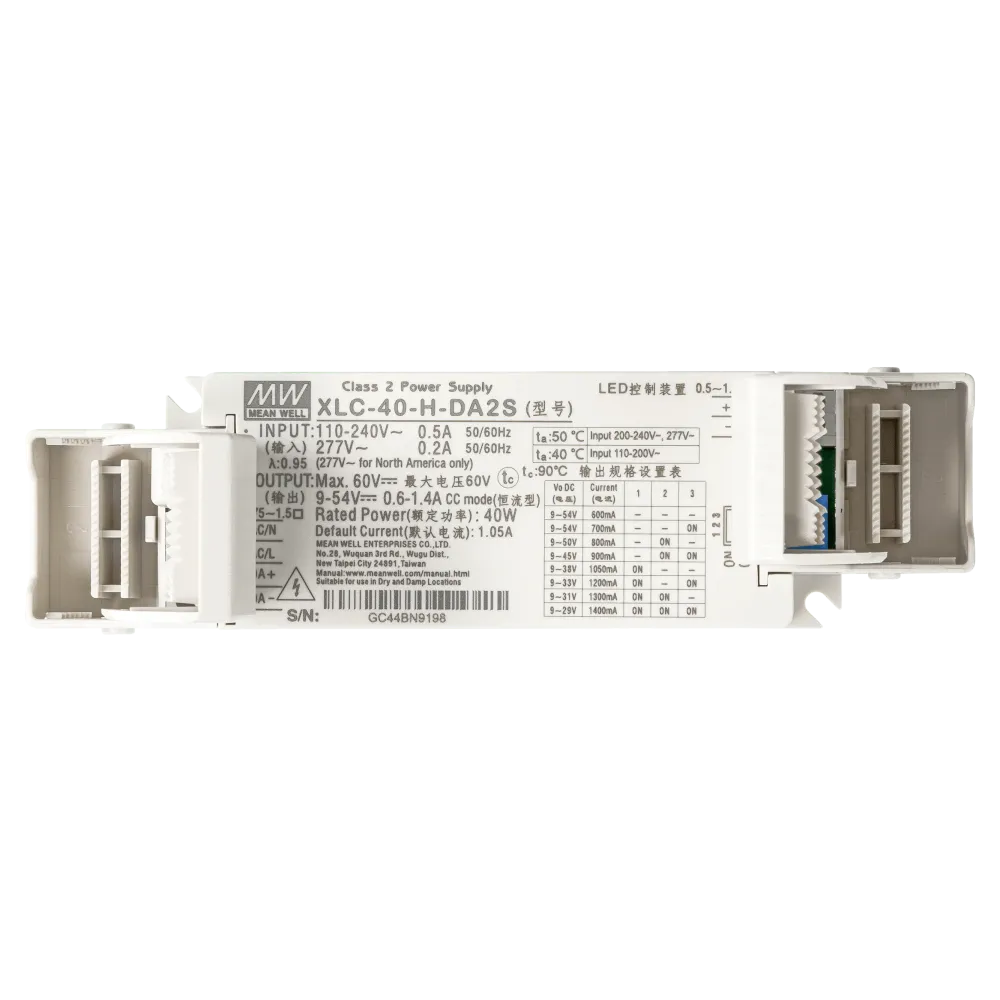

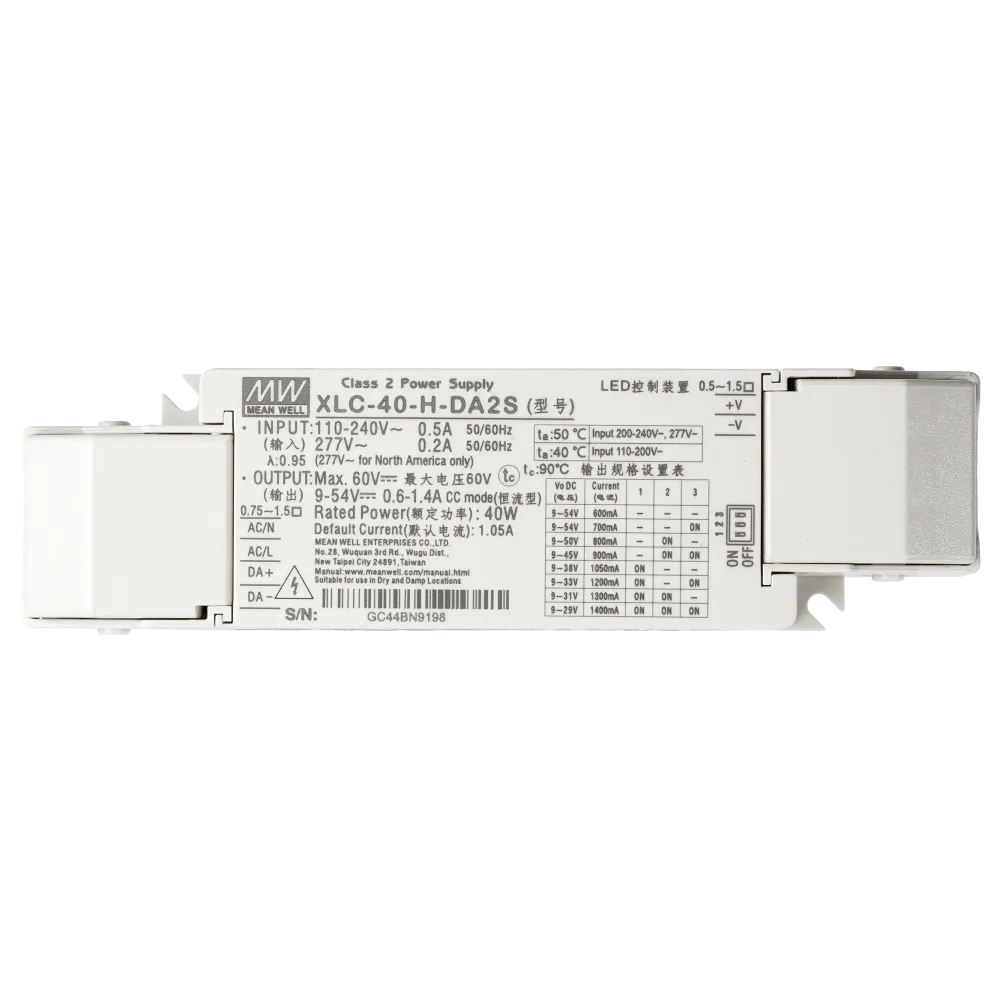

- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- Dimmable via AC Push or DALI
- Dimming is flicker-free with current control, no PWM at the output
Control
- DALI 2.0
- AC Push
Dimming range
The dimming range is 0.1% to 100% of the selected output current.
Technical data
- Plastic housing
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Product specifications
| Height | 32 mm |
| Dimming type | Current control |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Length | 147 mm |
| Control | DALI, AC Push Dimming |
| Current setting | DIP switch |
| Power | 40 W |
| Manufacturer | MEAN WELL |
| Width | 40 mm |
| Channels | 1 |
| Application | Single color |
| Additional functions | EL certified |
