About the product

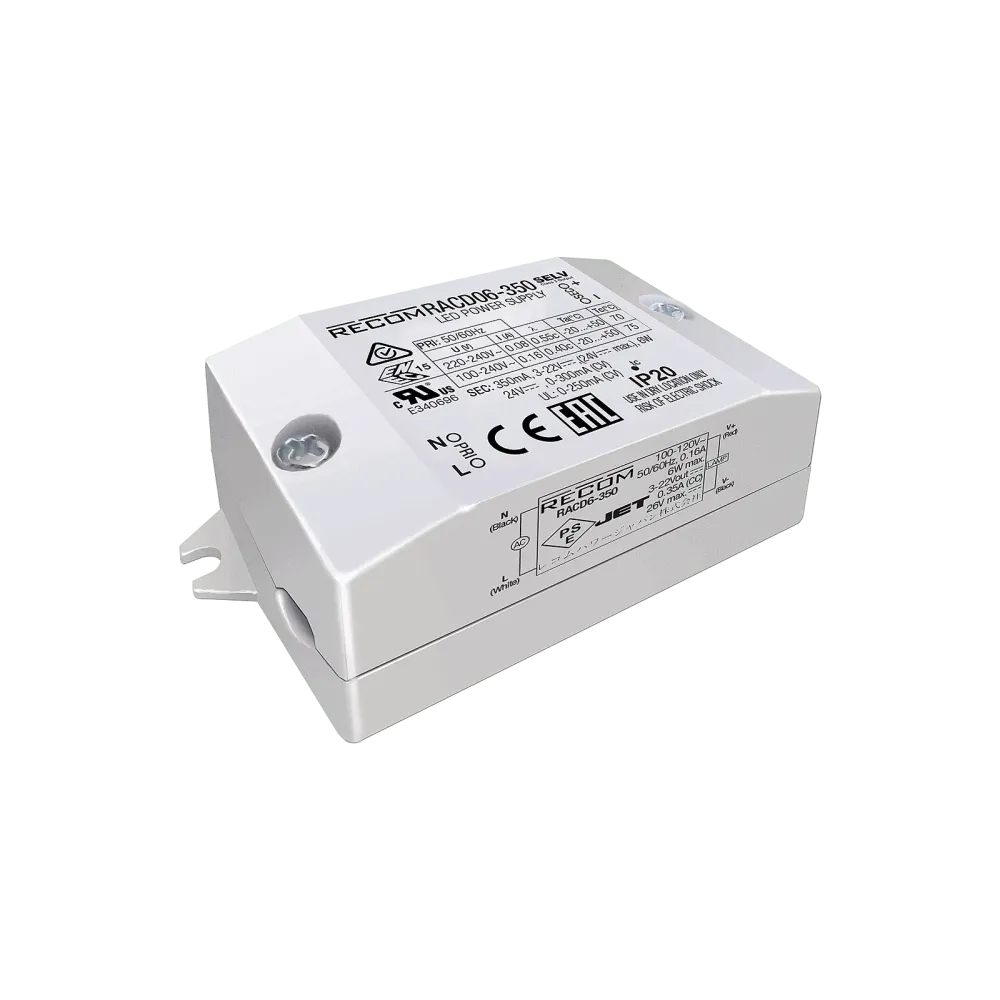

A compact 6 W constant current switching power module with universal input. The current limitation at the output (dual constant voltage/constant current mode) is set to 350 mA or 700 mA. At lower output currents, a constant voltage is present at the output.
Technical data
- 6W AC/DC class II LED power supply unit
- 350mA CC/CV output
- Protected input and SCP, OVP, OLP, OTP
- 3kVAC insulation
- Universal input voltage range
Product specifications
| Height | 21 mm |
| Control | not dimmable |
| IP protection | IP20 |
| Length | 68 mm |
| Power | 6 W |
| Manufacturer | Recom |
| Connection | Screw terminal |
| Channels | 1 |
| Width | 35 mm |
| Application | Single color |
| Manufacturer's warranty | 3 years |
