About the product

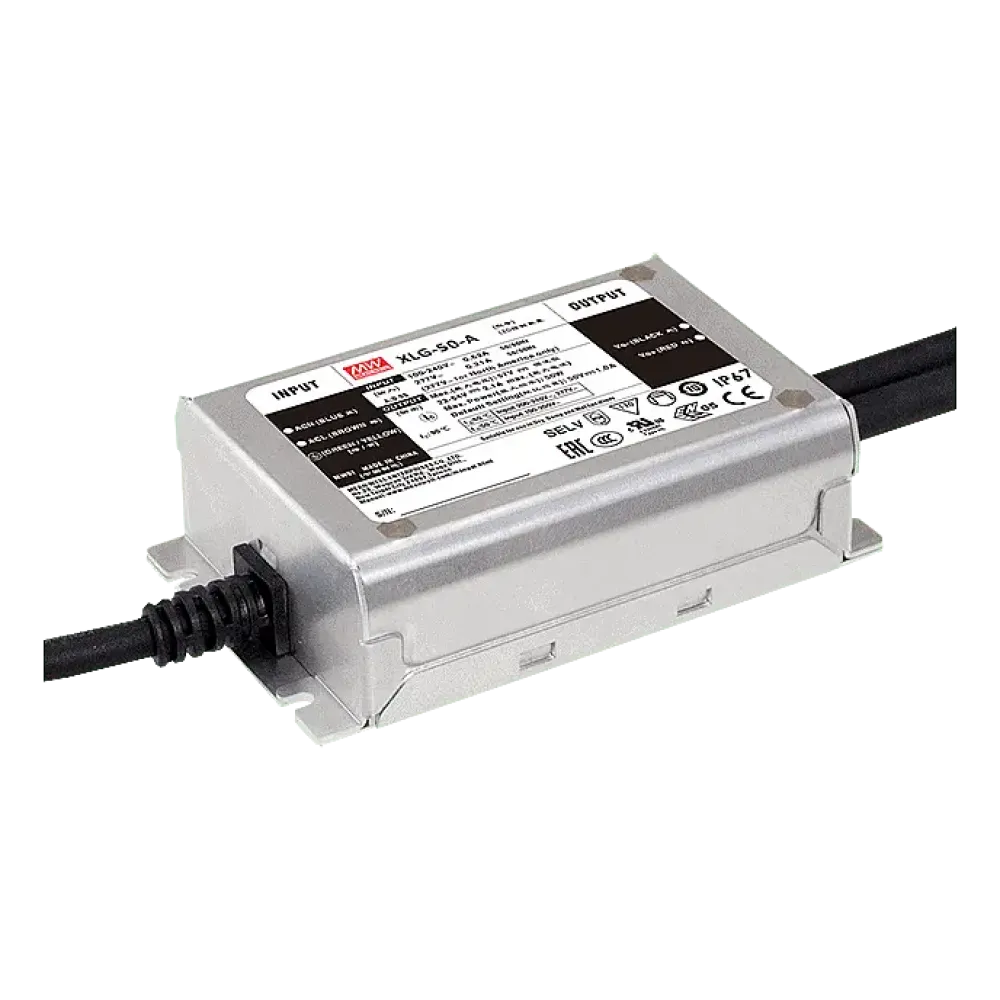

The XLG-50 LED driver with 50W constant power output is designed for the operation of LED lighting applications with constant current. Thanks to the IP67 protection, the power supply unit can be used in both indoor and outdoor applications. DA2 version with built-in DALI dimming interface.
Technical data

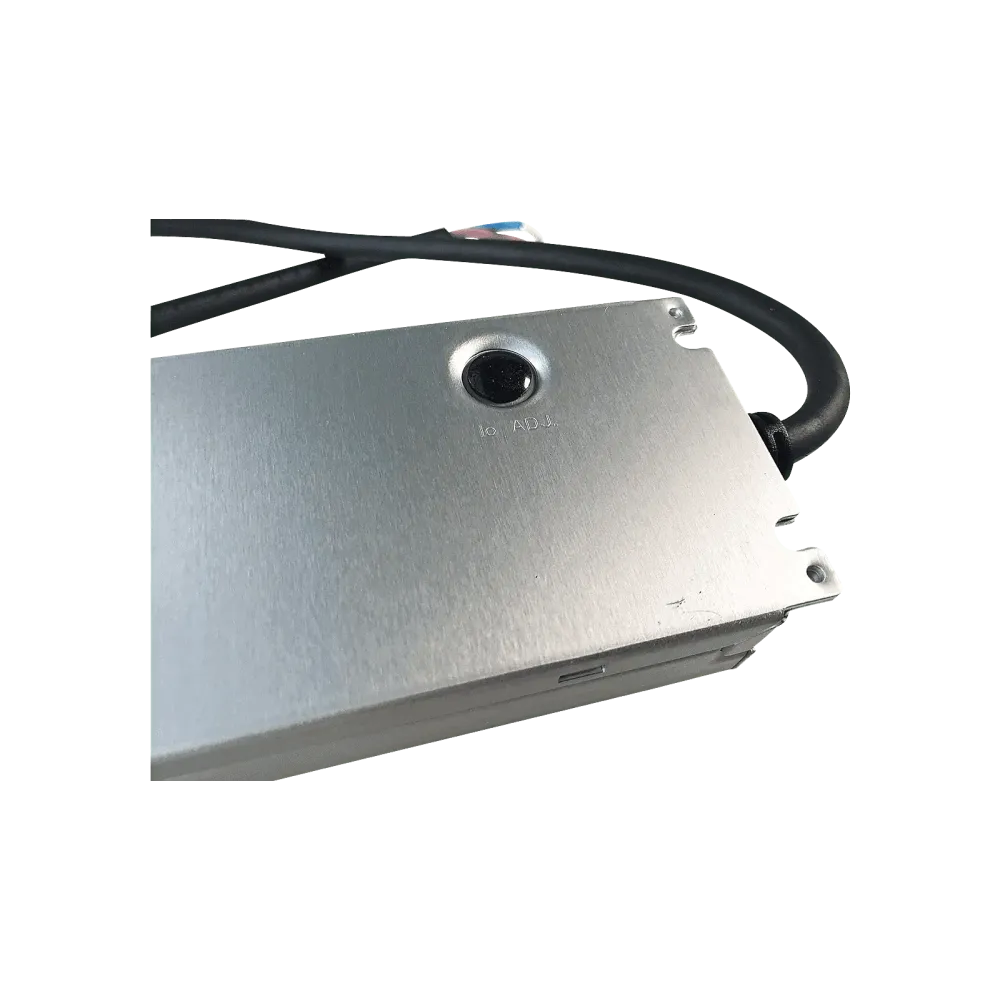

- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range: 60 to 142Vdc
- Setting range for output current on the power supply unit: 250 to 700mA (default setting 700mA)
- Built-in DALI interface
- Metal housing with IP67
- Dimensions 105 x 63 x 30mm (L x W x H)
Product specifications
| Height | 30 mm |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Length | 105 mm |
| Current setting | Potentiometer |
| Width | 63 mm |
| Control | DALI |
| Power | 50 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Application | Single color |
| Additional functions | Constant power |
