About the product

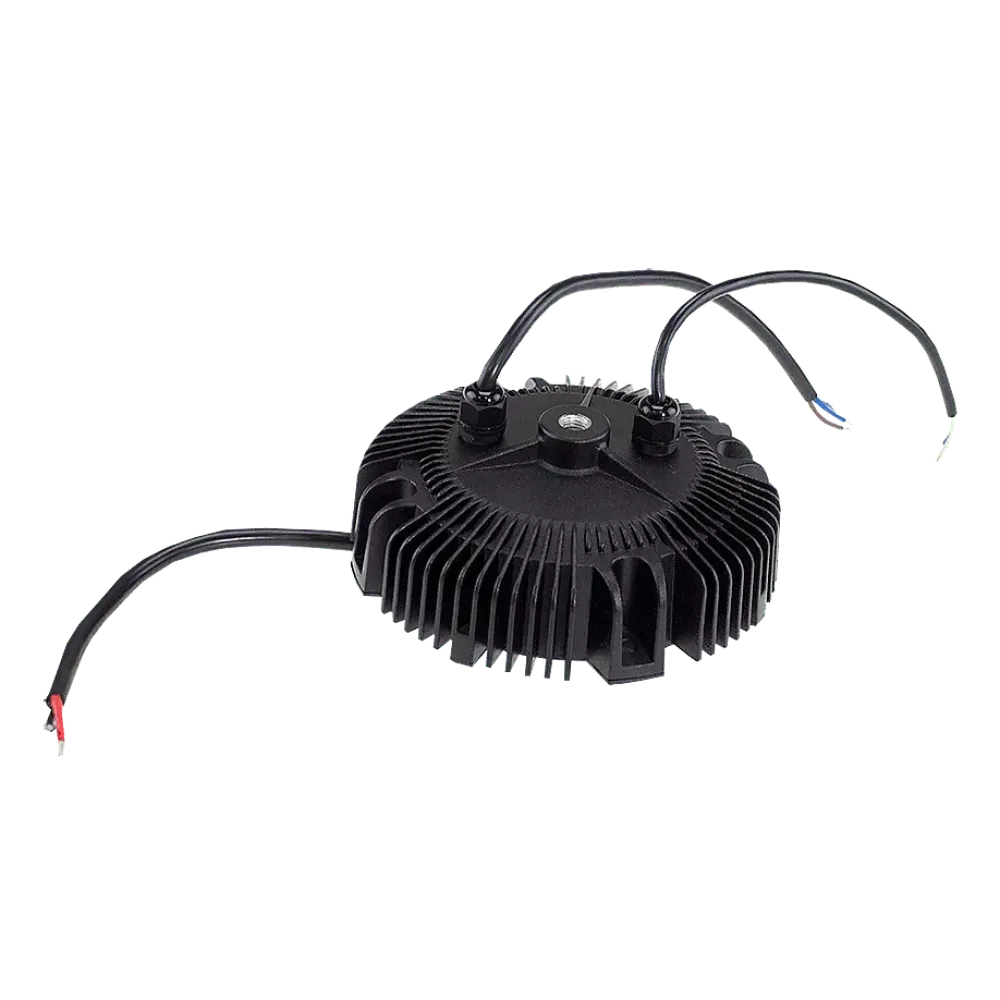

Specially designed for round LED luminaires with high light output, this constant current LED driver offers a high degree of flexibility. DA version with built-in DALI dimming interface.
The "DA" versions of the ELG LED converters have a built-in DALI dimming interface. The output current can be regulated with 0/1-10V, PWM control or resistance on the separate control cable.
The factory current is set to 1400mA
Control
- DALI 2
Dimming range
The dimming range is 8% to 100% of the set output current.
Technical data
- Constant current with extended constant power range
- Round version for high-bay luminaires or spotlights
- Maximum output current adjustable with potentiometer on the LED driver
- Built-in DALI2 interface
- Dimming through current reduction
- IP67 design, protected against short-term submersion
- Very robust design with a long service life
- Fully encapsulated in aluminum housing
- Operating temperature range from -40°C to +70°C
- Dimensions Ø191.5 x 69mm (D x H)
Product specifications
| Application | Single color |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Height | 69 mm |
| Diameter | 191.5 mm |
| Power | 300 W |
| Current setting | Potentiometer |
| Control | DALI |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Connection | Cables |
