About the product

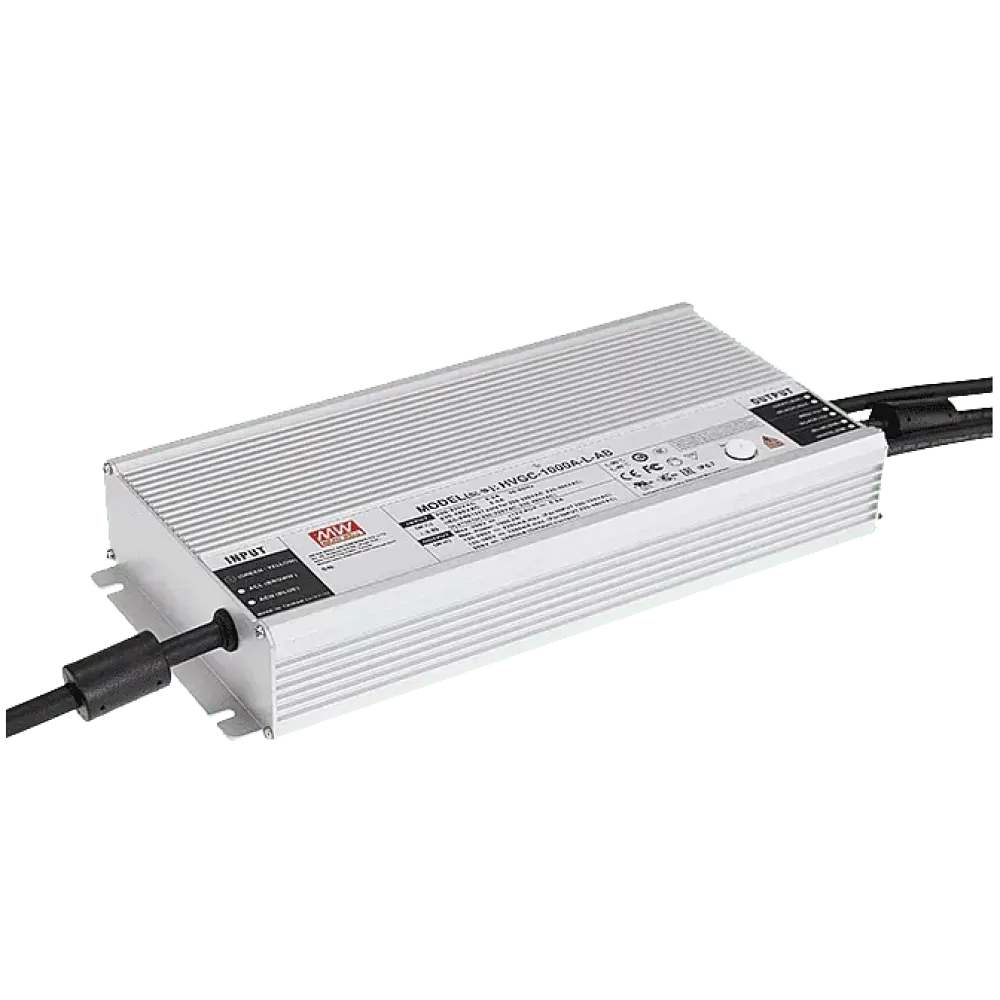

The HVGC-1000 LED driver with 1000W constant power output is designed for the operation of LED lighting applications with constant current. The high input voltage range of 180 to 528Vac enables use in applications with 3-phase mains without a neutral conductor.
Control
- 0/1-10V signal (10V=100% Iout, 0.6V=6% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 6kΩ =6% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 6% Duty Cycle=6% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 6% to 100% of the set output current.
Technical data
- Input voltage 180 to 528Vac
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range HVGC-1000-H: 70 - 180Vdc
- Current range for full power HVGC-1000-H: 5600 - 7000mA
- Setting range for output current on the HVGC-1000-H power supply unit: 2800 - 7000mA
- Current set to 5600mA ex works
- Metal housing with IP67
- Built-in 3in1 dimming function (0-10V, 10V PWM signal, resistor)
- 12V/500mA auxiliary output
- Dimensions 310 x 144 x 48.5mm (L x W x H)
Product specifications
| Application | Single color |
| Control | 0-10V, 1-10V, resistor |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Length | 310 mm |
| Power | 1000 W |
| Height | 48.5 mm |
| Width | 144 mm |
| Current setting | Potentiometer |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Additional functions | 12VDC auxiliary output |
