60W LED driver CC 500-1400mA, 2-90Vdc, KNX

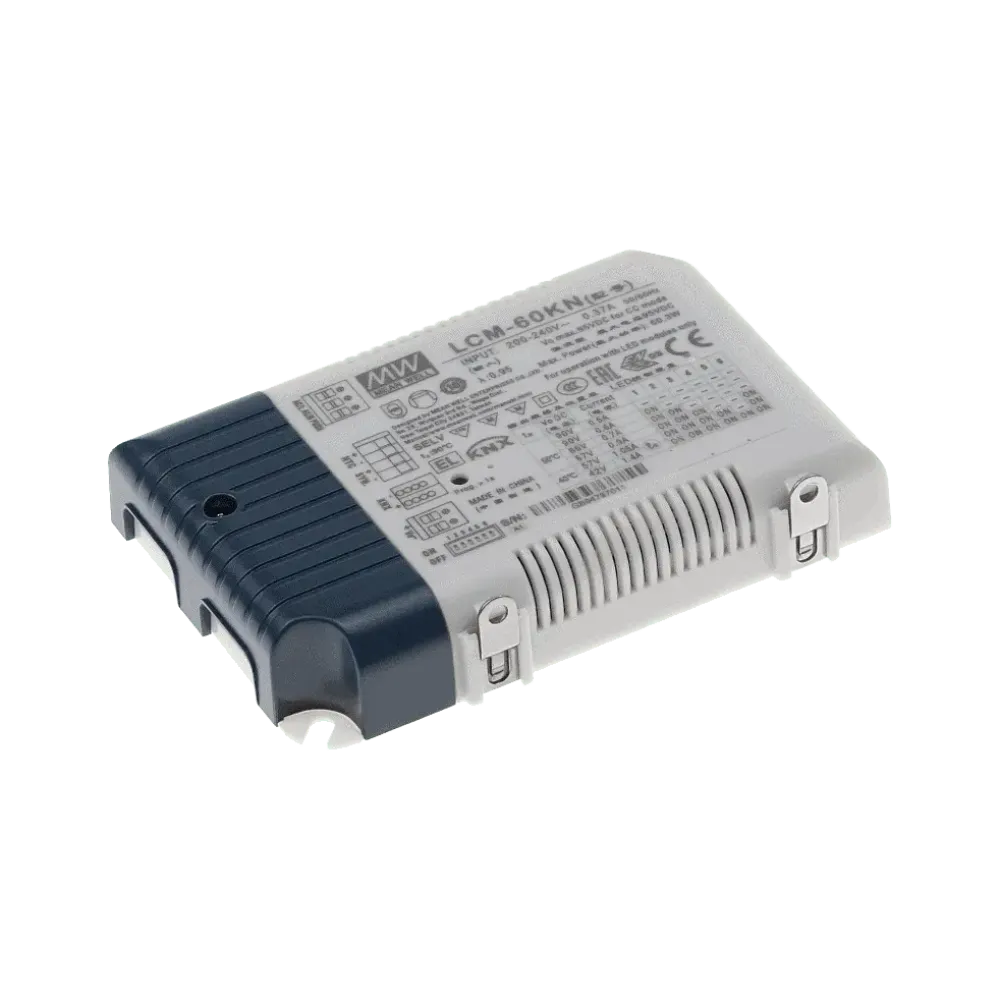

LCM-60KN is a 60W AC/DC LED converter with constant current output. Thanks to the integrated KNX interface, the driver can be programmed directly via ETS and controlled via the KNX bus. This eliminates the need for a KNX-DALI gateway.

KNX functions

CLO

The luminous flux of LEDs decreases over time as the diodes age. The CLO function (Constant Light Output) is used to continuously compensate for the
. continuously compensate for the drop in luminous flux of the luminaire. Once set in the ETS, compensation takes place automatically

Staircase function

Times, brightness values and alarm functions can be programmed in the ETS

Scenes

Scenes can be combined with other KNX products such as actuators, KNX sockets, etc. This allows comprehensive scenes to be realized at the touch of a button

KNX push-button Function

With the integrated push-button function, an inexpensive 230Vac push-button can be used for control.

Operating hours meter, consumption meter

Get total control over the LED power supplies used in the building. Find out how long the individual LED converters have been in operation and how much power the individual luminaires have consumed.
