About the product

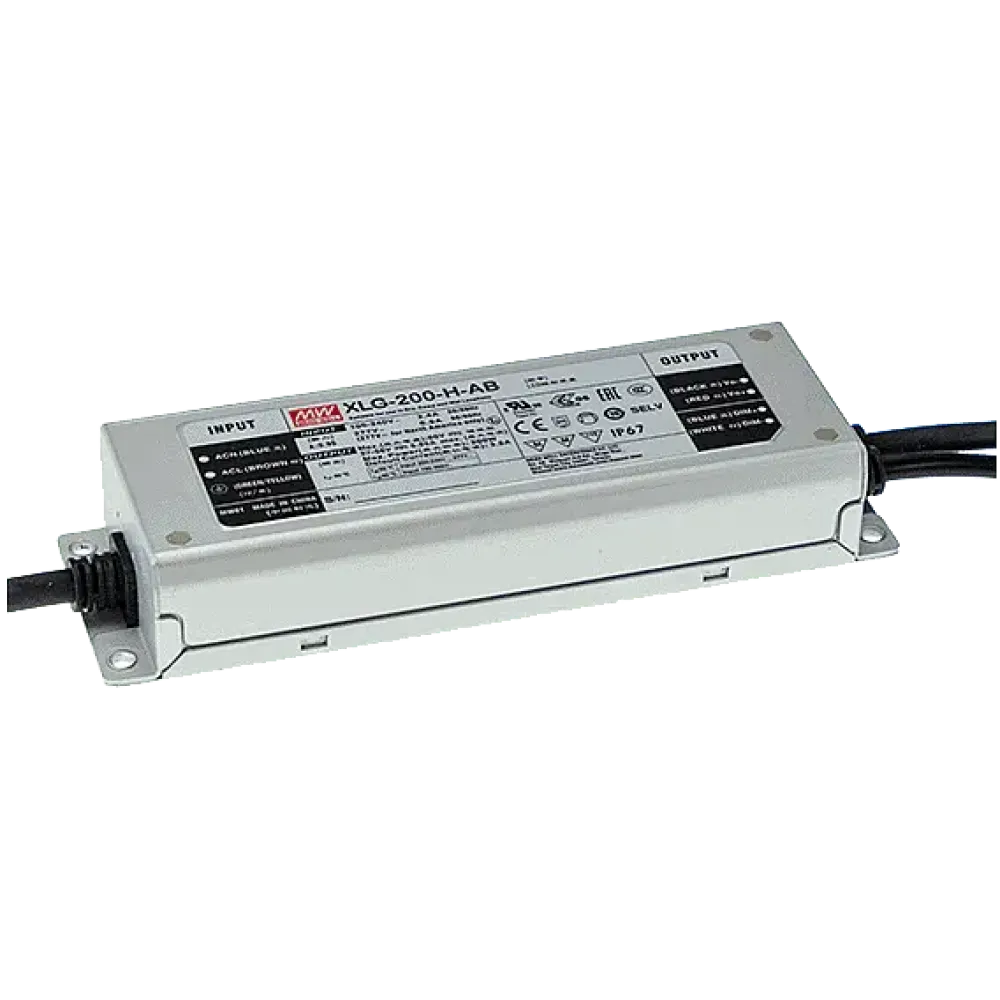

The XLG-200 LED driver with 200W constant power output is designed for the operation of LED lighting applications with constant current. Thanks to the IP67 protection, the power supply unit can be used in both indoor and outdoor applications. AB version with built-in dimming interface.
Technical data
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range: 142 to 285Vdc
- Setting range for output current on the power supply unit: 350 to 1050mA (default setting 700mA)
- Full power from 700 to 1050mA
- Built-in 3in1 dimming function (0-10V, 10V PWM signal, resistor)
- Metal housing with IP67
- Dimensions 199 x 63 x 35.5mm (L x W x H)
Product specifications
| Application | Single color |
| Additional functions | Constant power |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Length | 199 mm |
| Current setting | Potentiometer |
| Height | 35.5 mm |
| Width | 63 mm |
| Power | 200 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Control | 0-10V, 1-10V, resistor |
