About the product

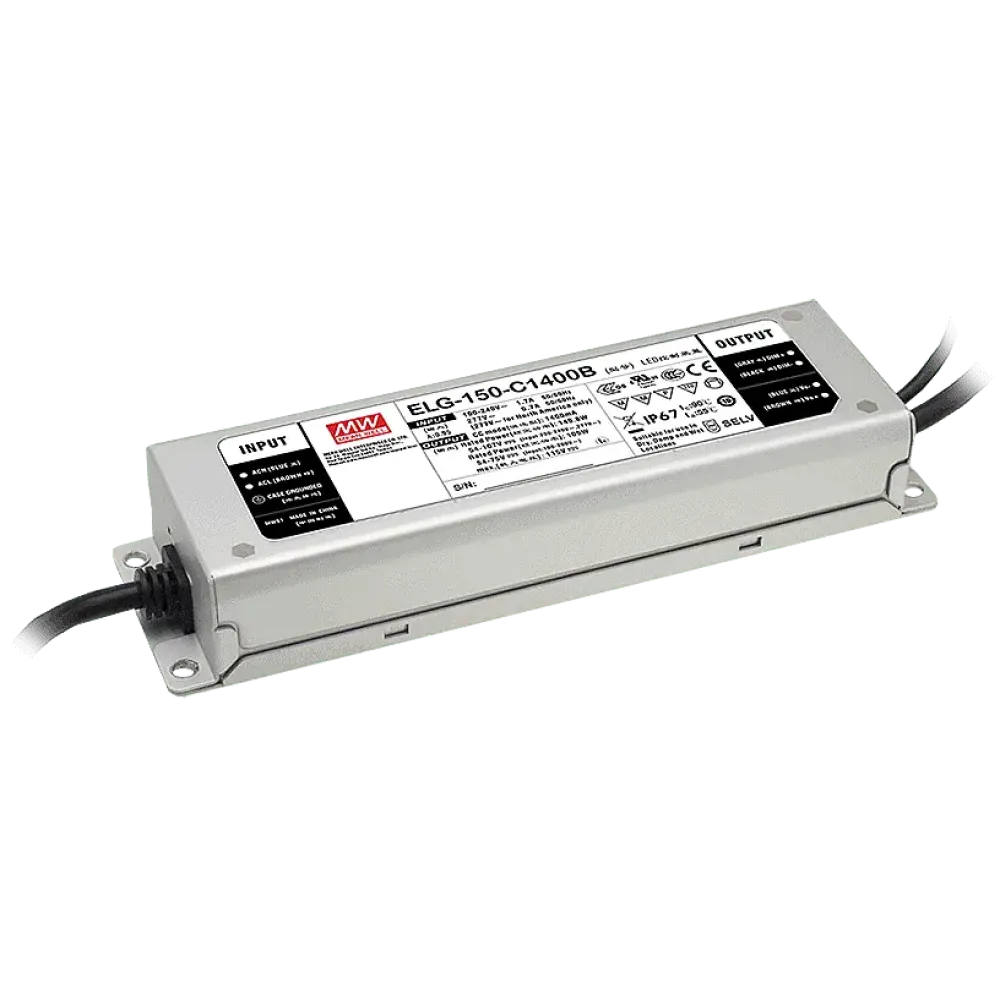

MEAN WELL ELG-150-CxxB-3Y is an LED driver for use as a constant current source. Version with earth connection on the cable, with 3in1 dimming function (dim-to-off).
The "B" versions of the ELG LED converters have a built-in 3in1 dimming interface. The output current can be regulated with 0/1-10V, PWM control or resistance on the separate control cable.
Control
- 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 10% Duty Cycle=10% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 8% to 100% of the output current.
Technical data
- Input voltage 100 to 305Vac (note derating at low input voltage)
- Built-in 3in1 dimming function (0-10Vdc, PWM, resistor)
- No load power consumption <0.5W
- Service life >50,000 hours
- IP67 design, protected against short-term submersion
- Fully encapsulated in a metal housing
- Operating temperature range from -40°C to +70°C
- Dimensions 199 x 63 x 35.5mm (L x W x H)
Product specifications
| Application | Single color |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Height | 35.5 mm |
| Width | 63 mm |
| Length | 219 mm |
| Power | 150 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Control | 0-10V, 1-10V, resistor, PWM control |
