About the product

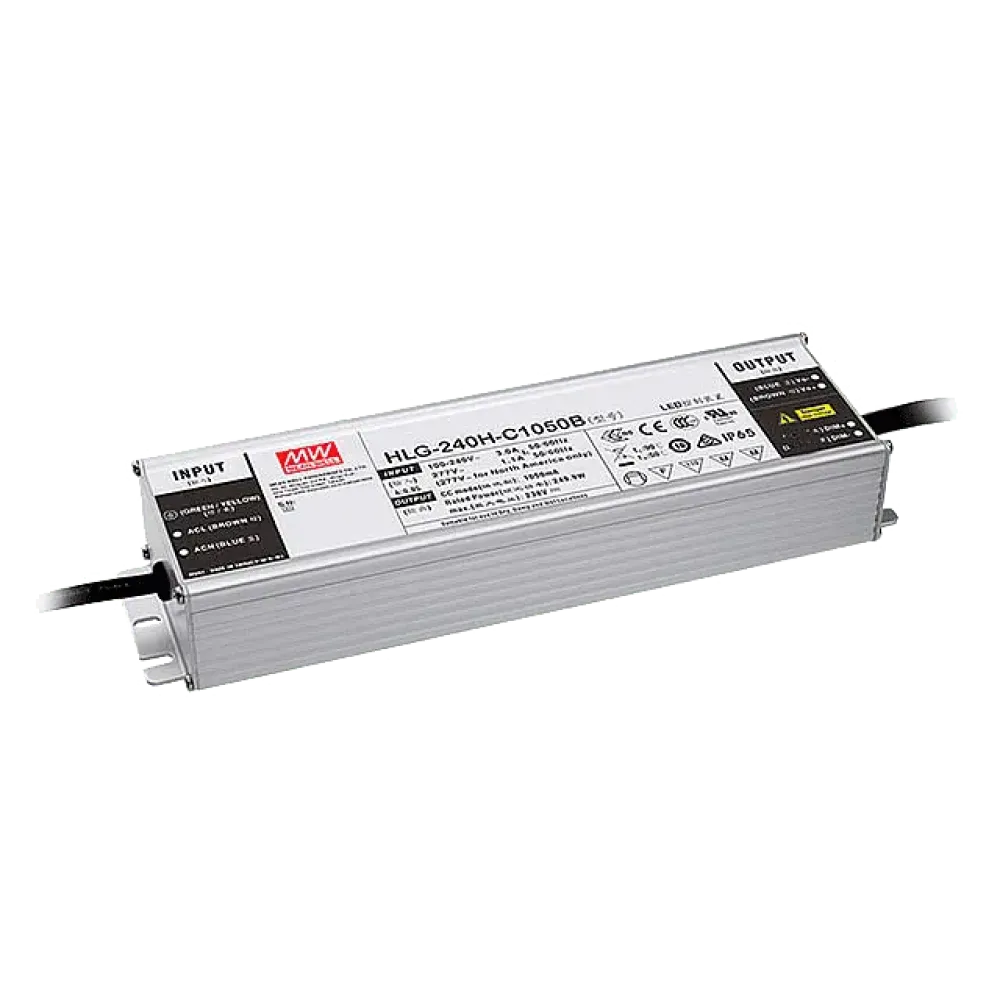

The robust constant current drivers of the HLG-240-C series for LED applications with high forward voltages.
The "B" versions of the HLG LED converters have a built-in 3in1 dimming interface. The output current can be regulated with 1-10V, PWM control or resistance on the separate control cable.
Control
- 1-10V signal (10V=100% Iout, 1V=10% Iout)
- Resistance (100kΩ=100% Iout, 10kΩ =10% Iout)
- 10V PWM signal (100% duty cycle=100% Iout, 10% duty cycle=10%)
Dimming range
The dimming range is 10% to 100% of the output current. The LED converter cannot be switched off via the dimming signal.
Technical data
- Constant current driver with high output voltage
- Current adjustable on the driver
- IP67 design, splash-proof
- Very robust design with a long service life
- Fully encapsulated in aluminum housing
- Operating temperature range from -40°C to +70°C
- Dimensions 244.2 x 68 x 38.8mm (L x W x H)
Product specifications
| Application | Single color |
| Control | 1-10V, resistor, PWM control |
| Connection | Cables |
| Dimming type | Current control |
| IP protection | IP67 |
| Power | 250 W |
| Length | 244.2 mm |
| Height | 38.8 mm |
| Width | 68 mm |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Manufacturer's warranty | 7 years |
