About the product

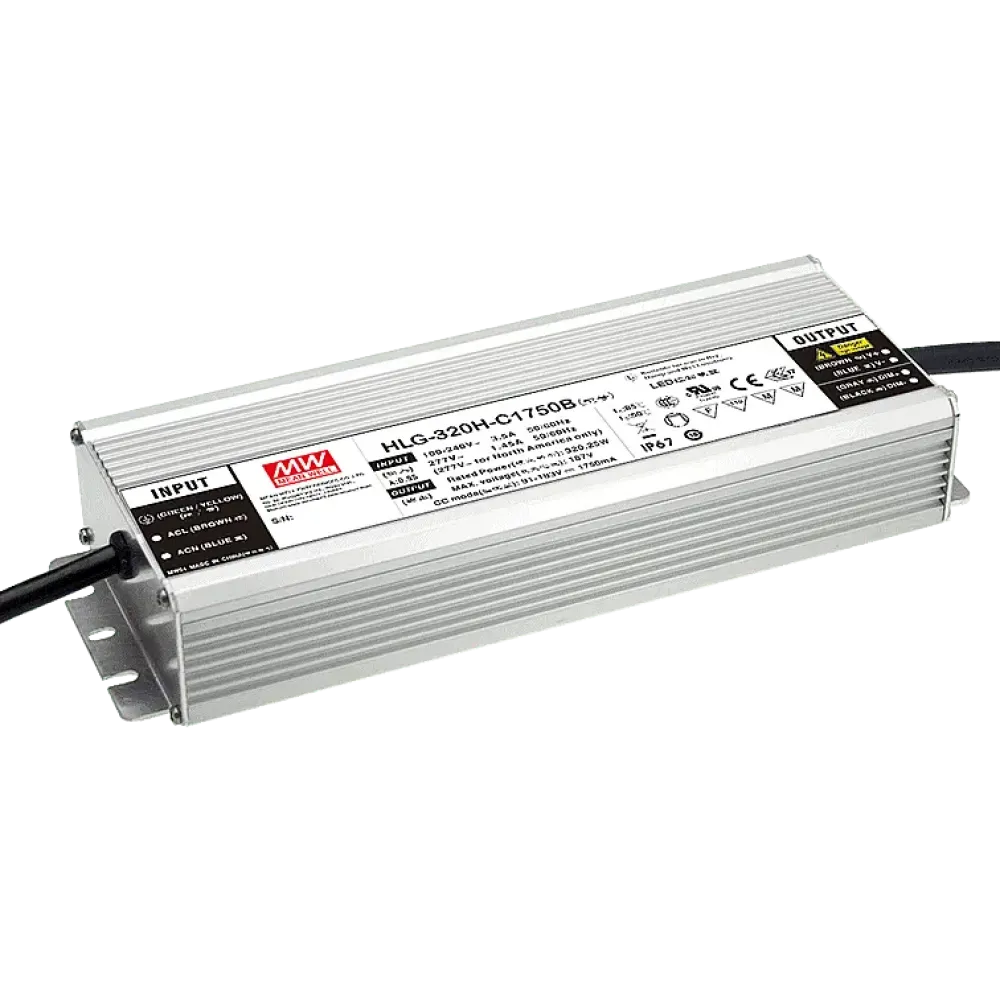

The robust constant current drivers of the HLG-320H-C series for LED applications with high forward voltages.
The "B" versions of the HLG LED converters have a built-in 3in1 dimming interface. The output current can be regulated with 1-10V, PWM control or resistance on the separate control cable.
Control
- 0/1-10V signal (10V=100% Iout, 1V=0.6% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =6% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 6% Duty Cycle=10% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 6% to 100% of the output current.
Technical data
- Constant current driver with high output voltage
- Built-in 3in1 dimming function (0-10Vdc, PWM, resistor)
- Dimming through current reduction
- IP67 design, protected against short-term submersion
- Very robust design with a long service life
- Fully encapsulated in aluminum housing
- Operating temperature range from -40°C to +70°C
- Dimensions 252 x 90 x 43.8mm (L x W x H)
Product specifications
| Application | Single color |
| Control | 1-10V, resistor, PWM control |
| Connection | Cables |
| Dimming type | Current control |
| IP protection | IP67 |
| Height | 43.8 mm |
| Width | 90 mm |
| Length | 252 mm |
| Power | 320 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Manufacturer's warranty | 7 years |
