About the product

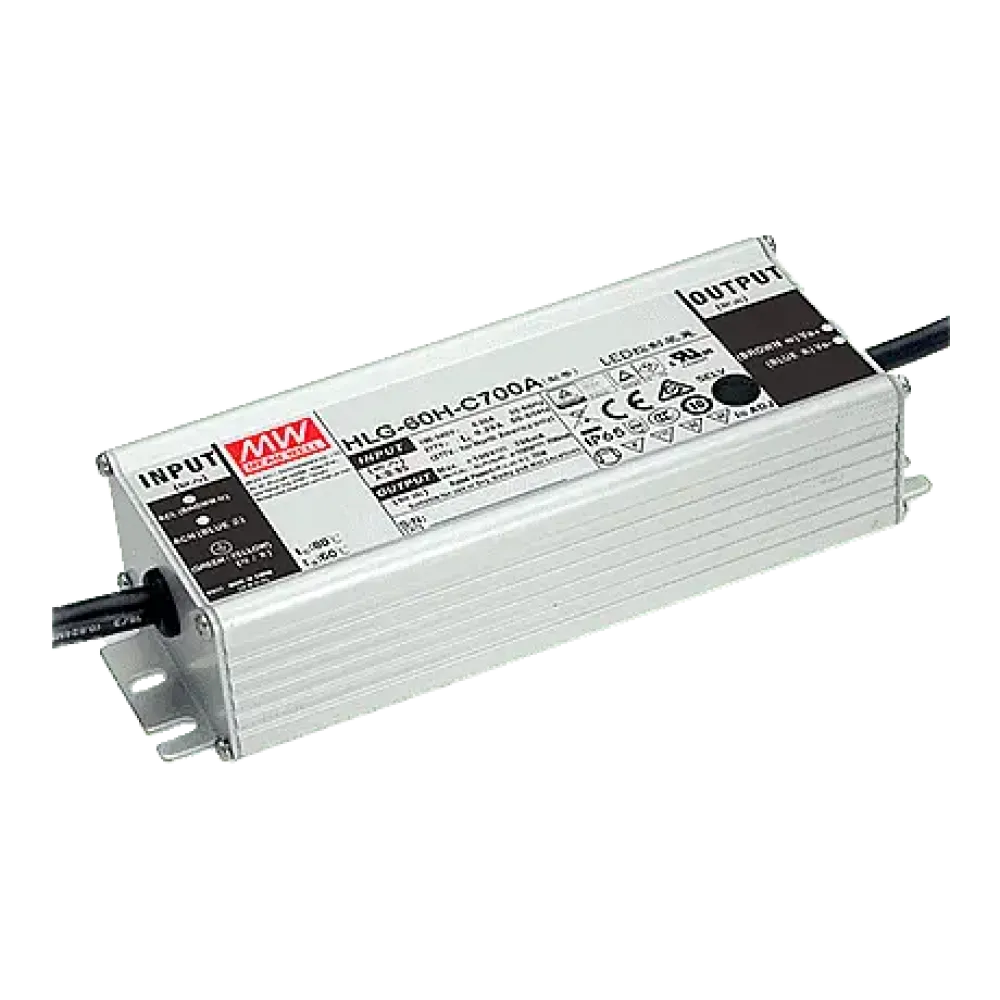

MEAN WELL HLG-60-CxxB is an LED driver for use as a constant current source. With 3in1 dimming function.
The "B" versions of the HLG LED converters have a built-in 3in1 dimming interface. The output current can be regulated with 1-10V, PWM control or resistance on the separate control cable.
Control
- 1-10V signal (10V=100% Iout, 1V=10% Iout)
- Resistance (100kΩ=100% Iout, 10kΩ =10% Iout)
- 10V PWM signal (100% duty cycle=100% Iout, 10% duty cycle=10%)
Dimming range
The dimming range is 10% to 100% of the output current. The LED converter cannot be switched off via the dimming signal.
Technical data
- Constant current driver with high output voltage
- Built-in 3in1 dimming function (1-10Vdc, PWM, resistor)
- Dimming through current reduction
- IP67 design, protected against short-term submersion
- Very robust design with a long service life
- Fully encapsulated in aluminum housing
- Operating temperature range from -40°C to +70°C
- Dimensions 171 x 61.5 x 36.8mm (L x W x H)
Product specifications
| Application | Single color |
| Control | 1-10V, resistor, PWM control |
| Connection | Cables |
| Dimming type | Current control |
| IP protection | IP67 |
| Power | 70 W |
| Height | 36.8 mm |
| Width | 61.5 mm |
| Length | 171 mm |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Manufacturer's warranty | 7 years |
