About the product

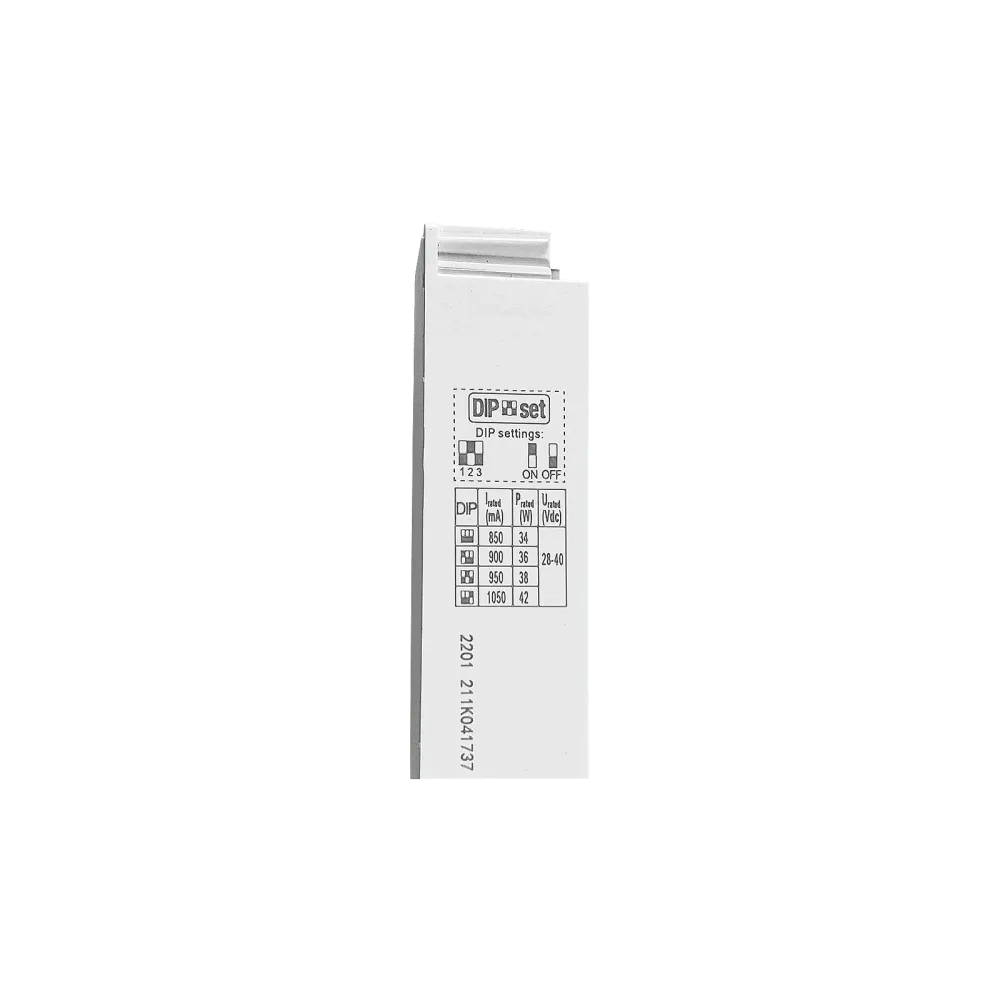

The FLS-42-1050 LD flexible line LED driver with constant current output is designed for operating LED lighting applications from 850 to 1050 mA in the voltage range from 28 to 40 Vdc. The output current can be set using the DIP switch on the device. Side covers are available as accessories for operation outside the luminaire.
Product specifications
| Application | Single color |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Height | 26 mm |
| Length | 97 mm |
| Width | 43 mm |
| Power | 42 W |
| Manufacturer | Eaglerise |
| Channels | 1 |
| Control | not dimmable |
