About the product

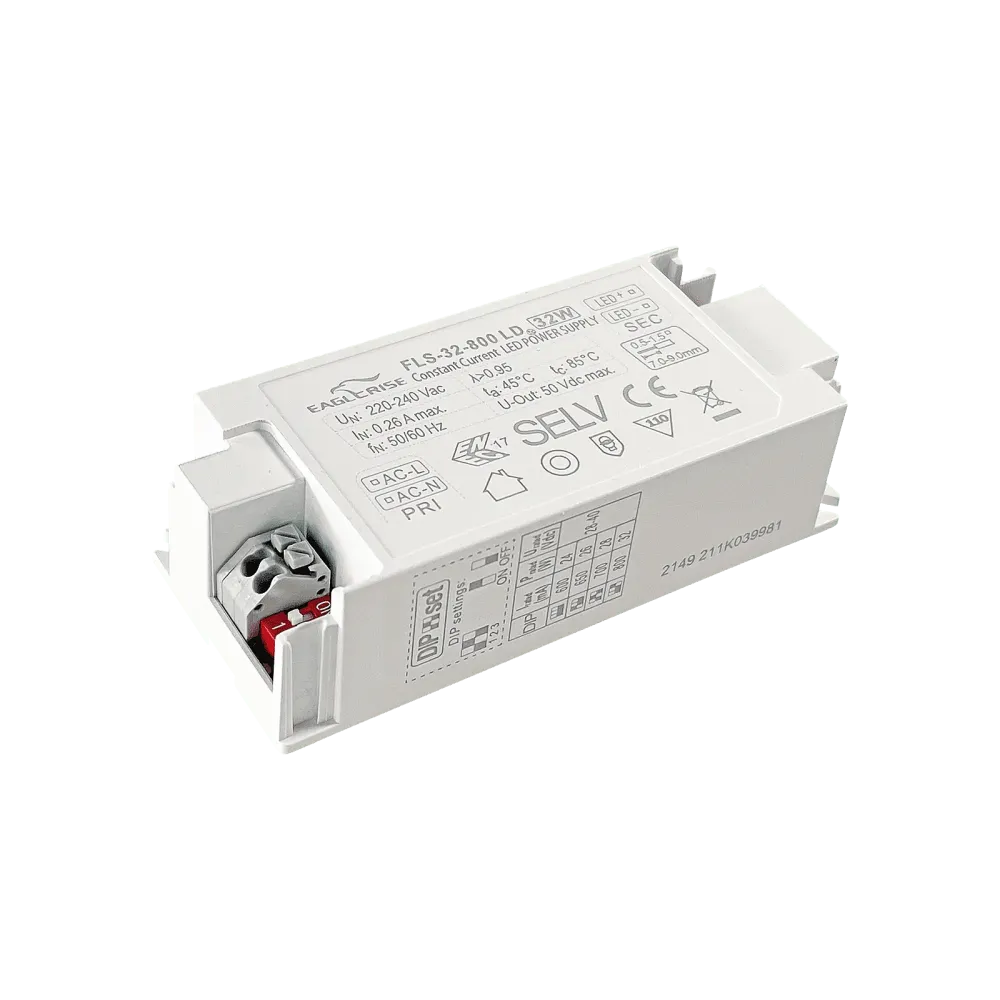

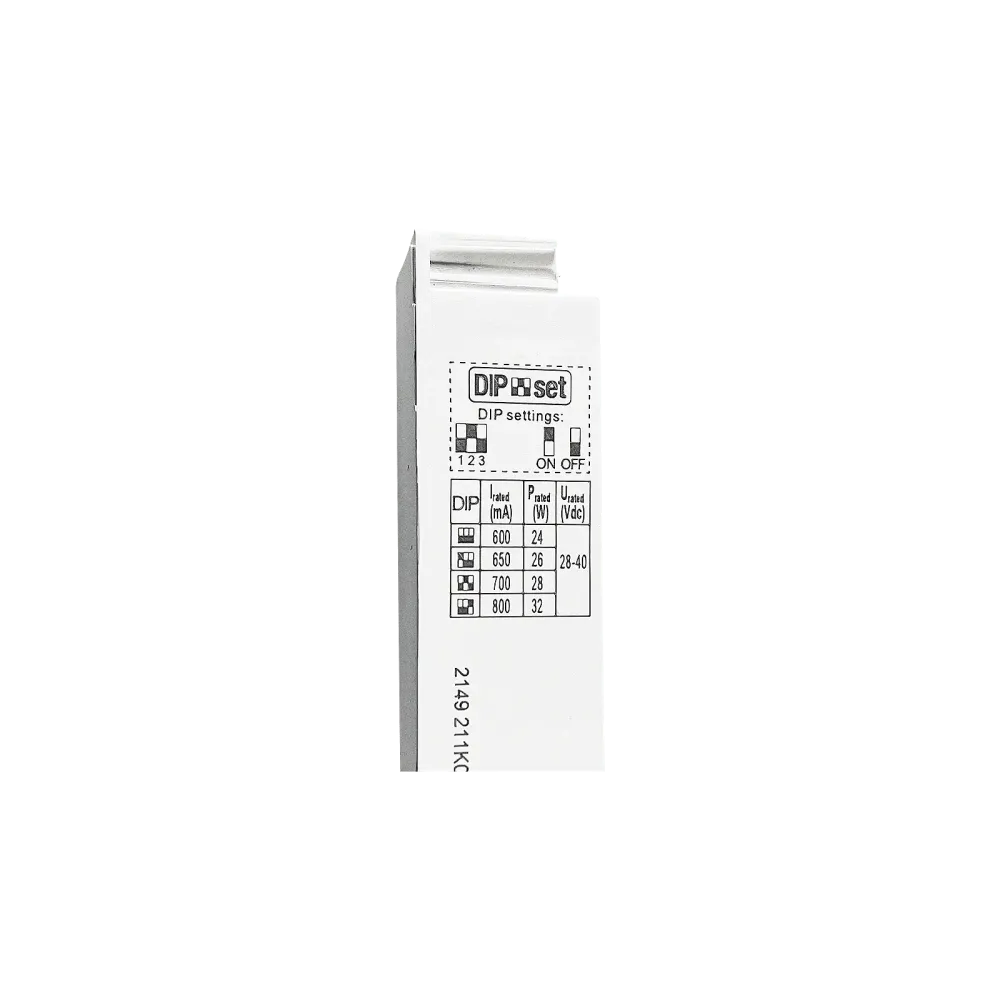

The FLS-32-800 LD flexible line LED driver with constant current output is designed for operating LED lighting applications from 600 to 800mA in the voltage range from 28 to 40Vdc. The output current can be set using the DIP switch on the device. Side covers are available as accessories for operation outside the luminaire.
Product specifications
| Application | Single color |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Height | 26 mm |
| Power | 32 W |
| Length | 97 mm |
| Width | 43 mm |
| Manufacturer | Eaglerise |
| Channels | 1 |
| Control | not dimmable |
Data sheets
Accessories
