About the product

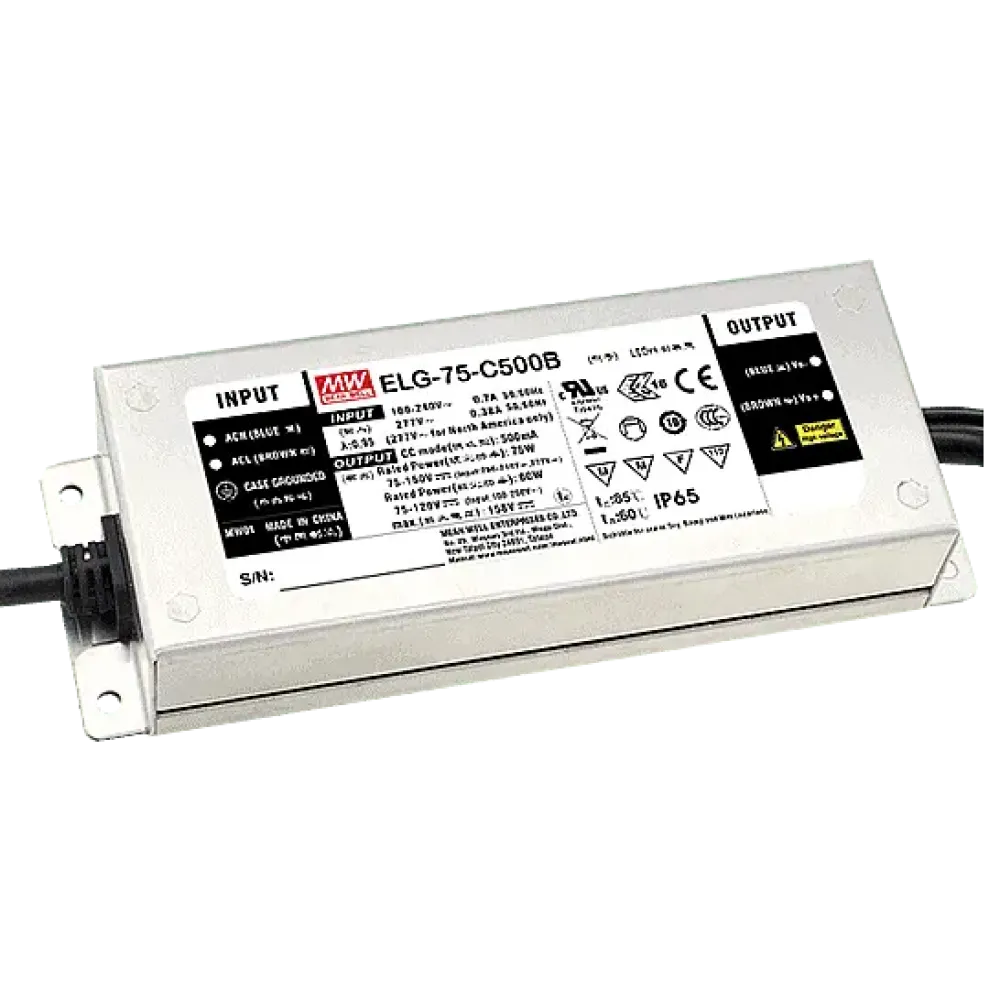

MEAN WELL ELG-75-CxxDA-3Y is an LED driver for use as a constant current source. Version with earth connection on the cable and DALI interface.
Control
- DALI
Dimming range
The dimming range is 8% to 100% of the output current.
Technical data
- Input voltage 100 to 305Vac (note derating at low input voltage)
- Built-in DALI interface
- Service life >50,000 hours
- No load power consumption <0.5W
- IP67 design, protected against short-term submersion
- Fully encapsulated in a metal housing
- Operating temperature range from -40°C to +70°C
- Dimensions 180 x 63 x 35.5mm (L x W x H)
Product specifications
| Application | Single color |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Length | 180 mm |
| Power | 75 W |
| Height | 35.5 mm |
| Width | 63 mm |
| Control | DALI |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Connection | Cables |
