About the product

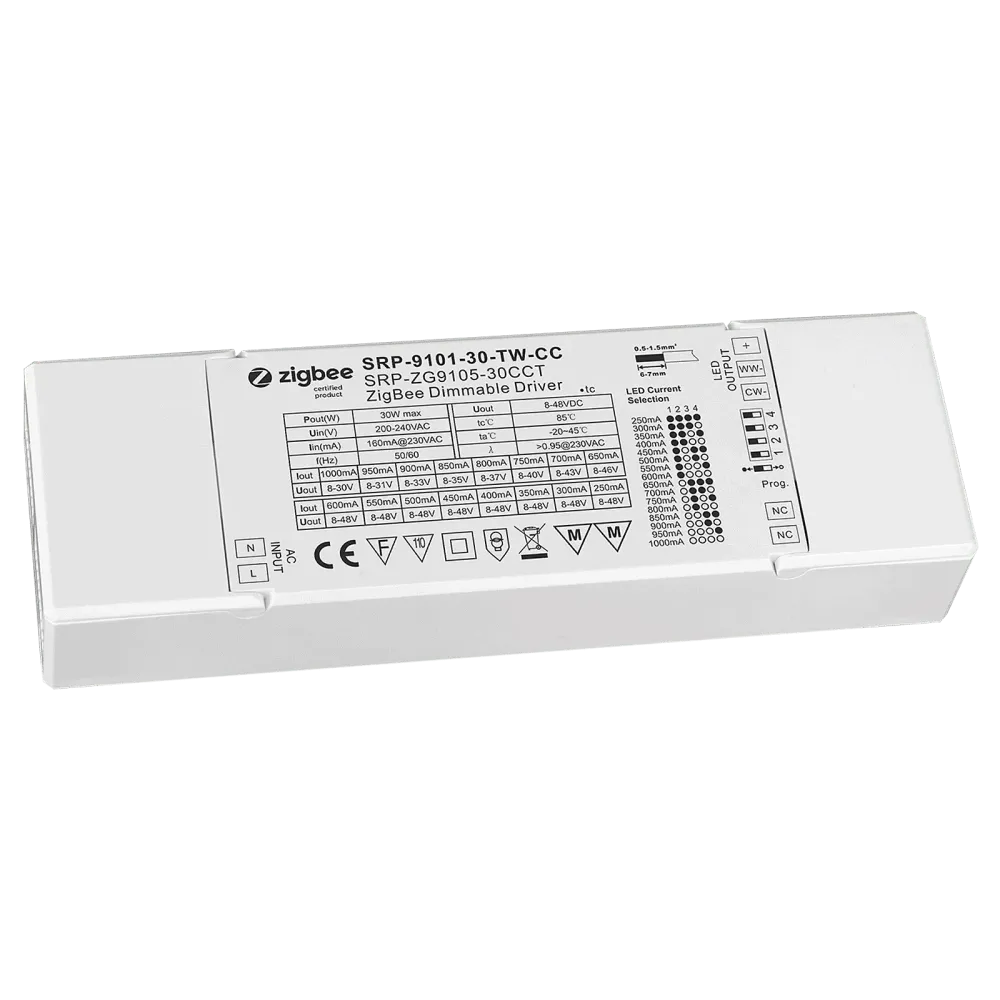

SRP-9101-30-TW-CC is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with ZigBee.
Control
- ZigBee 3.0
Application
- Tunable white
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- ZigBee TW LED driver, based on ZigBee 3.0 protocol
- Compatible with various ZigBee systems such as Philips Hue, Amazon Alexa, etc.
- Can be controlled directly (without ZigBee hub) via Touch Link
- 200-240VAC Input voltage range
- The maximum output power is 30W
- 2 adjustable constant current outputs, 250-1500mA
- The output current can be selected with the DIP switch on the product
- Supports ZigBee green power and can be operated with up to 20 ZigBee green power remote controls
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 170 x 53.4 x 28mm
- 5 year guarantee
Product specifications
| Control | ZigBee 3.0 |
| Dimming type | PWM |
| Manufacturer's warranty | 5 years |
| Application | Tunable White |
| IP protection | IP20 |
| Height | 28 mm |
| Width | 53.4 mm |
| Length | 170 mm |
| Power | 30 W |
| Current setting | DIP switch |
| Channels | 2 |
| Connection | Spring clamp |
