About the product

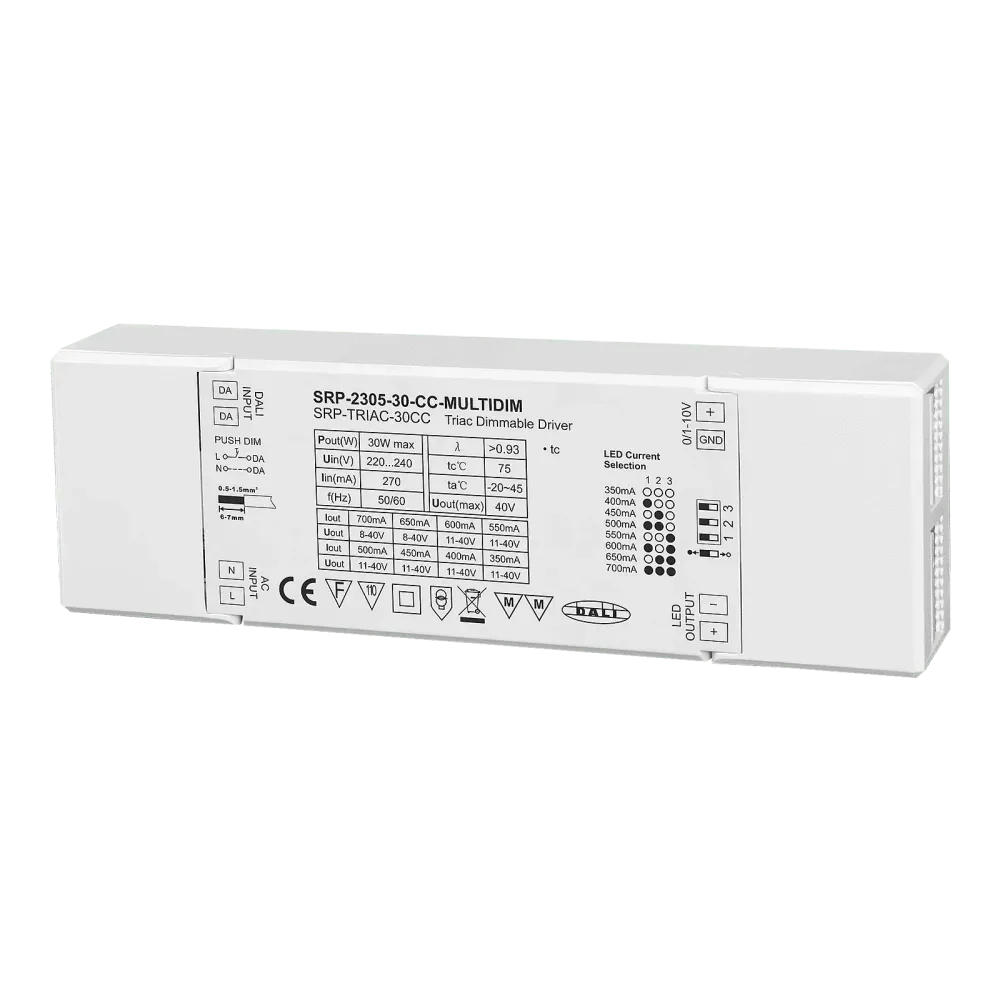

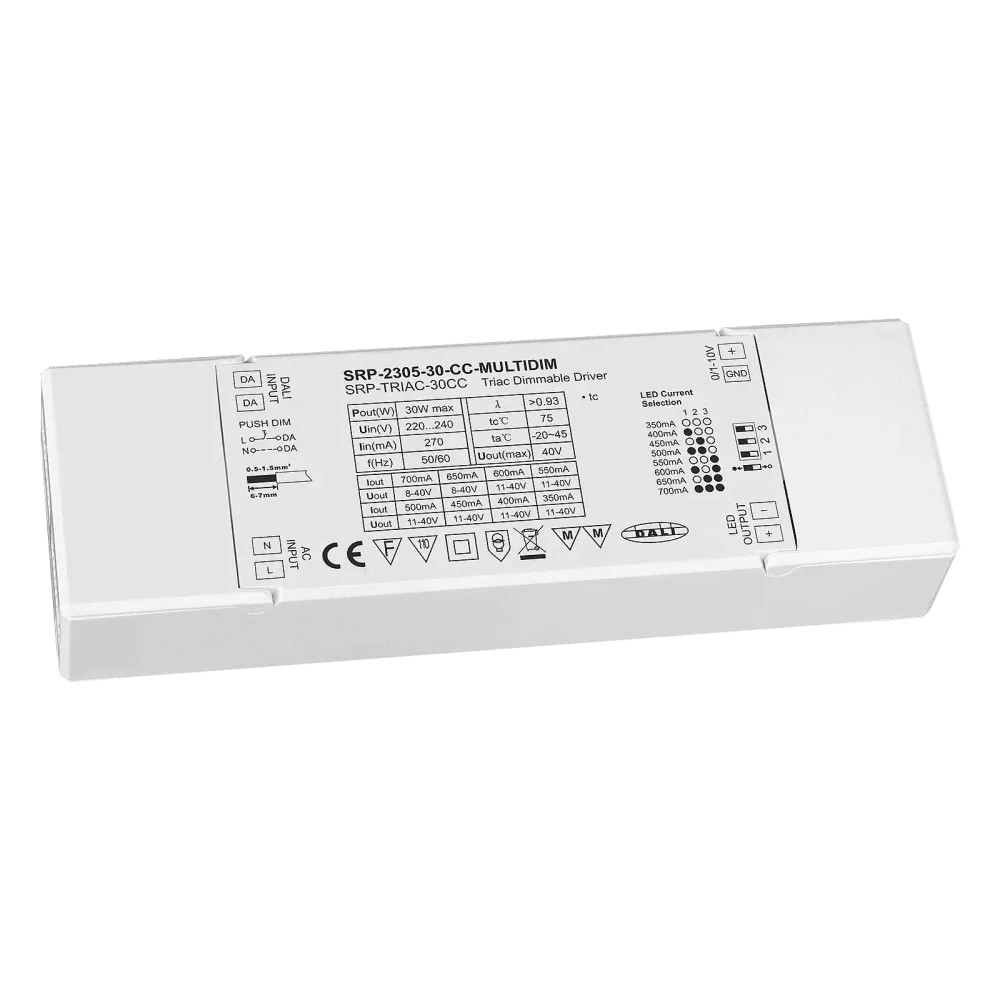

SRP-2305-30-CC-MULTIDIM is a flexible, dimmable LED converter with constant current output. This 4in1 power supply unit can be controlled with DALI, TRIAC, AC-Push etc.
Control
- DALI, AC-PUSH, 0/1-10V, TRIAC
Application
- Single Color
Dimming range
The dimming range is 1% to 100% of the connected load (0.1-100% for DALI)
Dimming method: Amplitude
Technical data
- DALI DT6 dimmable 1-channel single color power supply unit
- 220-240VAC wide input voltage range
- 1-channel constant current output
- Output current selectable from 350mA to 700mA via DIP switch
- Output voltage: 8-40VDC
- The maximum output power is 30W
- Amplitude dimming, no PWM output, flicker free
- Built-in DALI interface, DALI DT6 device
- Generally compatible with DALI masters that support DT6 commands
- Error message Function
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 170 x 53 x 28mm
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp |
| Control | DALI, AC Push Dimming, Phase dimmer, 0-10V, 1-10V |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Height | 28 mm |
| Length | 170 mm |
| Power | 30 W |
| Width | 53 mm |
| Current setting | DIP switch |
| Channels | 1 |
| Application | Single color |
| Dimming type | Current control |
