About the product

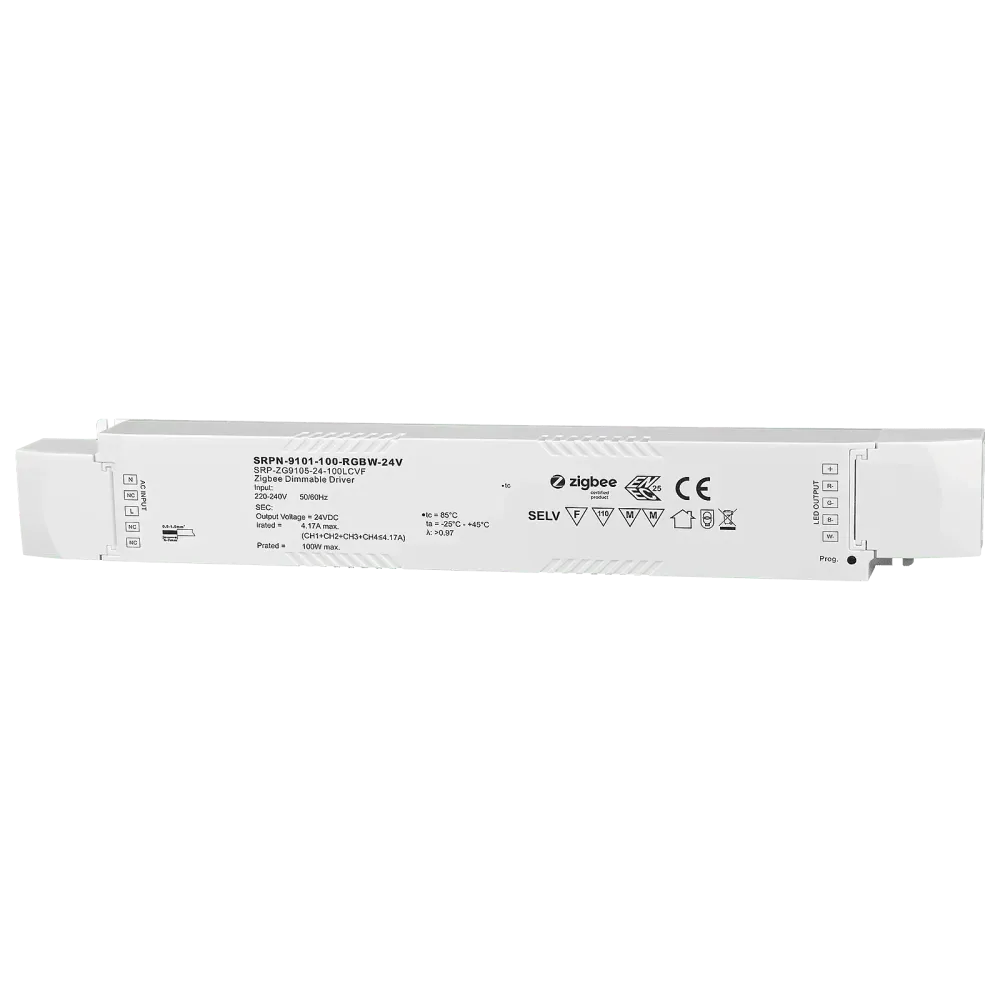

SRPN-9101-100-RGBW-24V with PWM output and integrated ZIGBEE 3.0 interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips.
Control
- ZIGBEE
Application
- RGBW
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Dimmable ZigBee 3.0 LED driver, max. output power 100W total
- 4 channels DC 24V constant voltage output
- High power factor and efficiency
- Deep and gentle dimming to 0.1%, flicker-free
- Standby power consumption less than 0.5 W, meets the latest ERP requirements
- Enables control of ON/OFF, light intensity, CCT, RGBW LED lights
- ZigBee end device that supports Touchlink commissioning
- Can be connected directly to a compatible ZigBee remote control via Touchlink
- Supports find-and-bind mode to bind a ZigBee remote control
- Supports Zigbee Green Power and can handle max. 20 Zigbee Green Power switches
- Compatible with universal ZigBee gateway products
- Compatible with universal RGBW ZigBee remote controls
- Dimensions: 306.6 x 43 x 30mm
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| IP protection | IP20 |
| Product series | SRPN-9101 |
| Length | 306.6 mm |
| Channels | 4 |
| Output current | 4.17 A |
| Power | 100 W |
| Width | 43 mm |
| Connection | Screw terminal |
| Input voltage range (VAC) | 220-240 V |
| Output voltage (VDC) | 24 V |
| Application | RGBW |
| Control | ZigBee 3.0 |
| Height | 30 mm |
| Dimming type | PWM |
