About the product

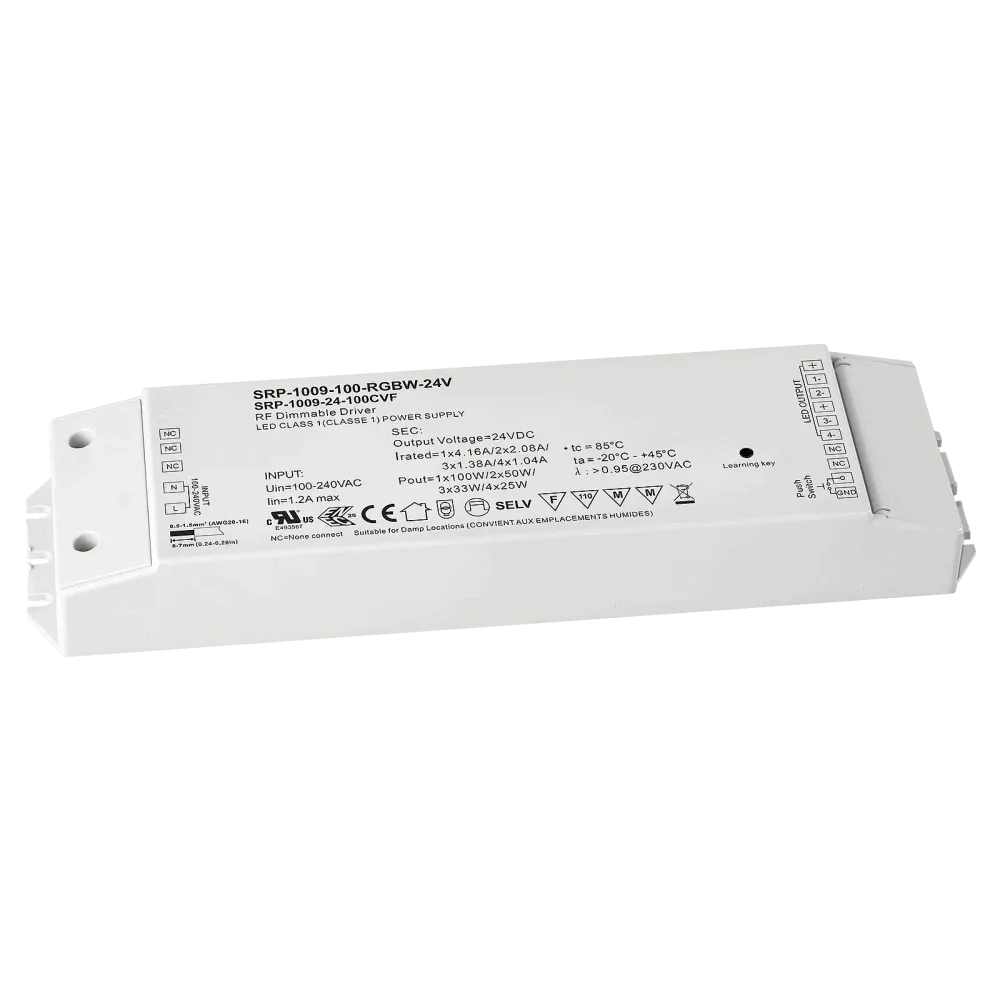

SRP-1009-100-RGBW-24V with PWM output and integrated radio interface is ideal for operating RGBW constant voltage LED applications such as LED strips.
Control
- RF Wireless, LV PUSH
Application
- RGBW, Tunable White, RGB, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Radio (RF) dimmable 4-channel RGBW power supply unit
- 100-240VAC wide input voltage range
- 4-channel 24VDC constant voltage outputs
- Max. Output power 100W total
- Max. Output current: 4.16A
- Class 1 power supply unit, fully insulated plastic housing
- Can be used as a single color, dual color (TW) RGB or RGBW power supply unit
- Compatible with various remote controls
- Push dimming function possible (if connected)
- IP20 protection class, suitable for indoor lighting projects
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 244 x 64 x 32mm
- 5 year guarantee
Product specifications
| Height | 32 mm |
| Connection | Spring clamp, screw clamp |
| Application | RGB, RGBW, Single Color, Tunable White |
| Dimming type | PWM |
| IP protection | IP20 |
| Width | 64 mm |
| Channels | 4 |
| Product series | SRP |
| Output current | 4.1 A |
| Power | 100 W |
| Input voltage range (VAC) | 100-240 V |
| Length | 244 mm |
| Output voltage (VDC) | 24 V |
| Control | Low Voltage Push, RF Wireless |
