Item ID: 41581.13051

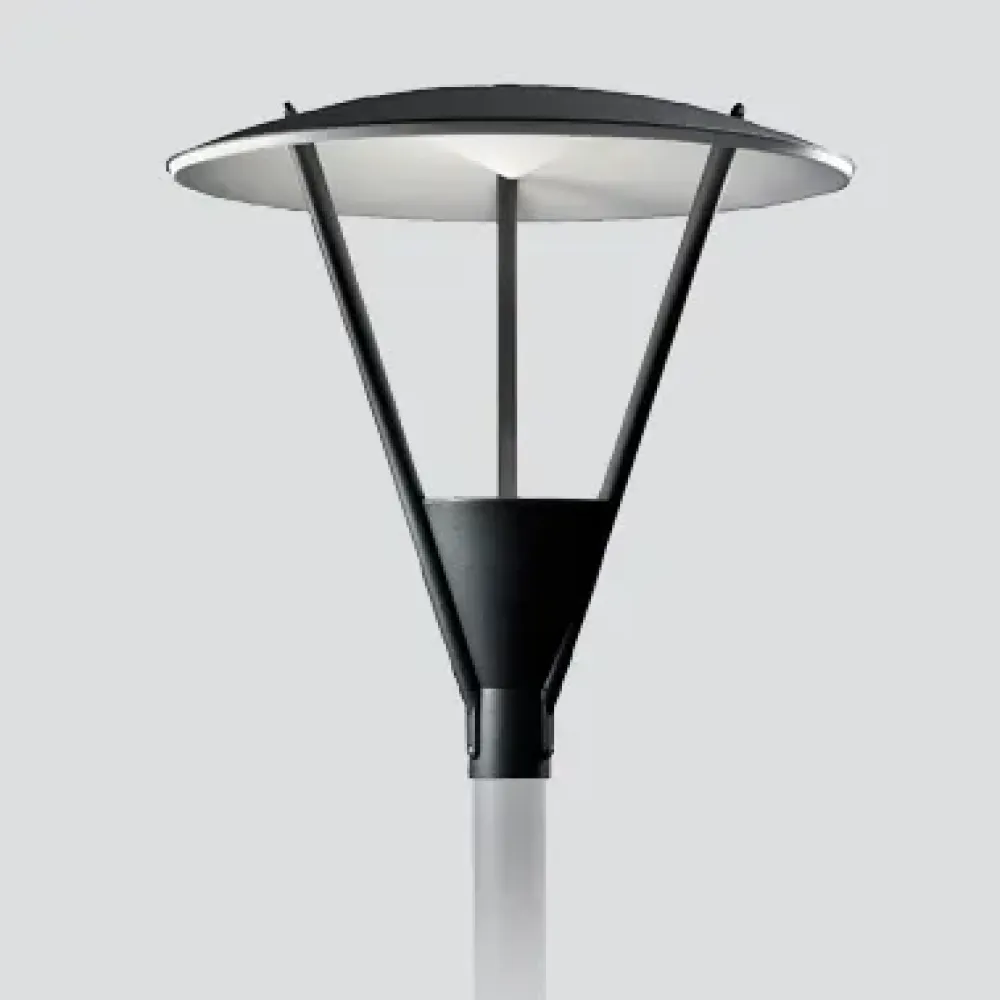

Vela 9000H/WC5.NB-Urban Lighting - Head for street light pole - External driver
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product

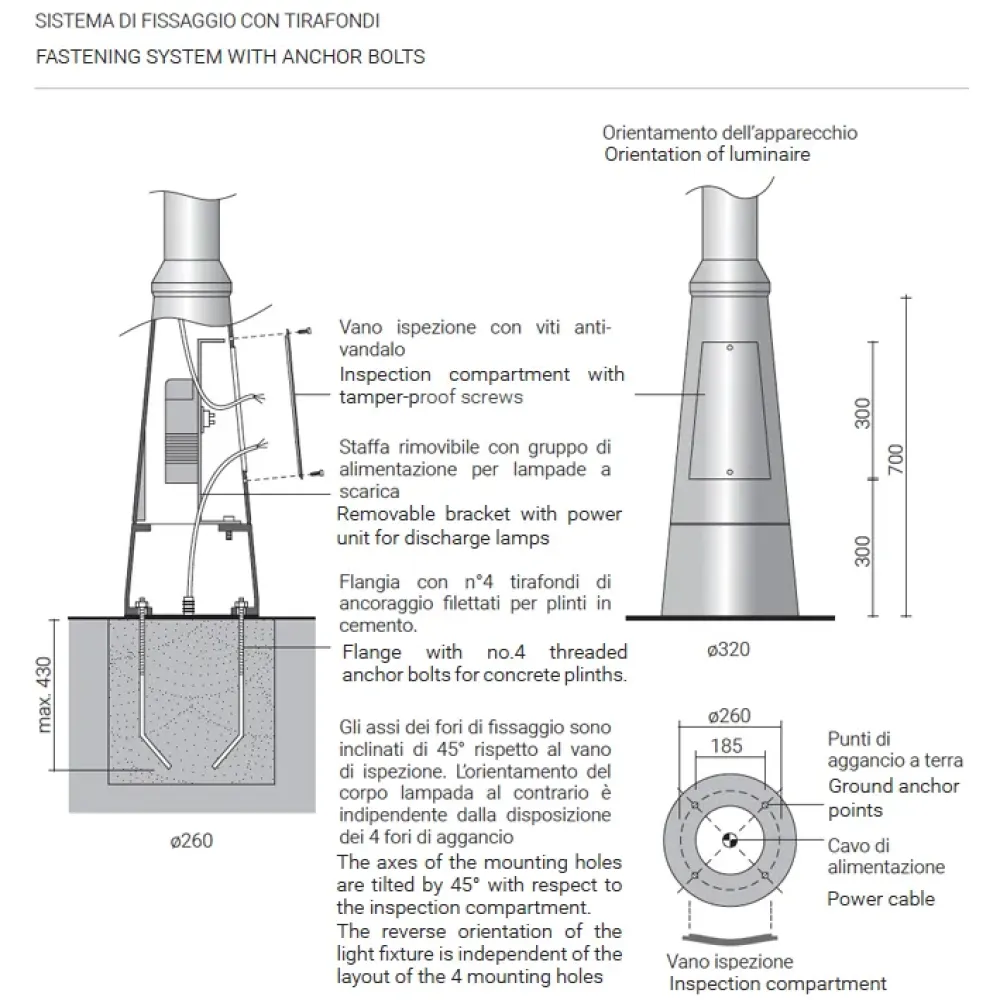

Indirect light street furniture suitable for urban parks, pedestrian areas, car parks. It offers uniform diffused lighting over the entire area without any degree of glare whatever the point of view. Its structure allows to contain the power supply in class II on the pole base, easily removable and serviceable but still protected with vandal-proof screws. The lamp body is totally insulated with a high degree of protection IP65.
Product specifications
| Assembly | ground installation |
| Source | LED |
| Source flux | 5870 lm |
| Fixture source | 2042 lm |
| Apparent efficiency | 35.00% |
| Insulation class | class III |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| CCT LED | 3000K |
| CRI | >80 |
| Photobiological risk | RG1 |
| Absorbed power | 36 W |
| Power module LED | 34 W |
| Control | DALI available on request |
| Protection | IP65/IK09 |
| Body | Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy |
| Screen | tempered extra-clear glass 12mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

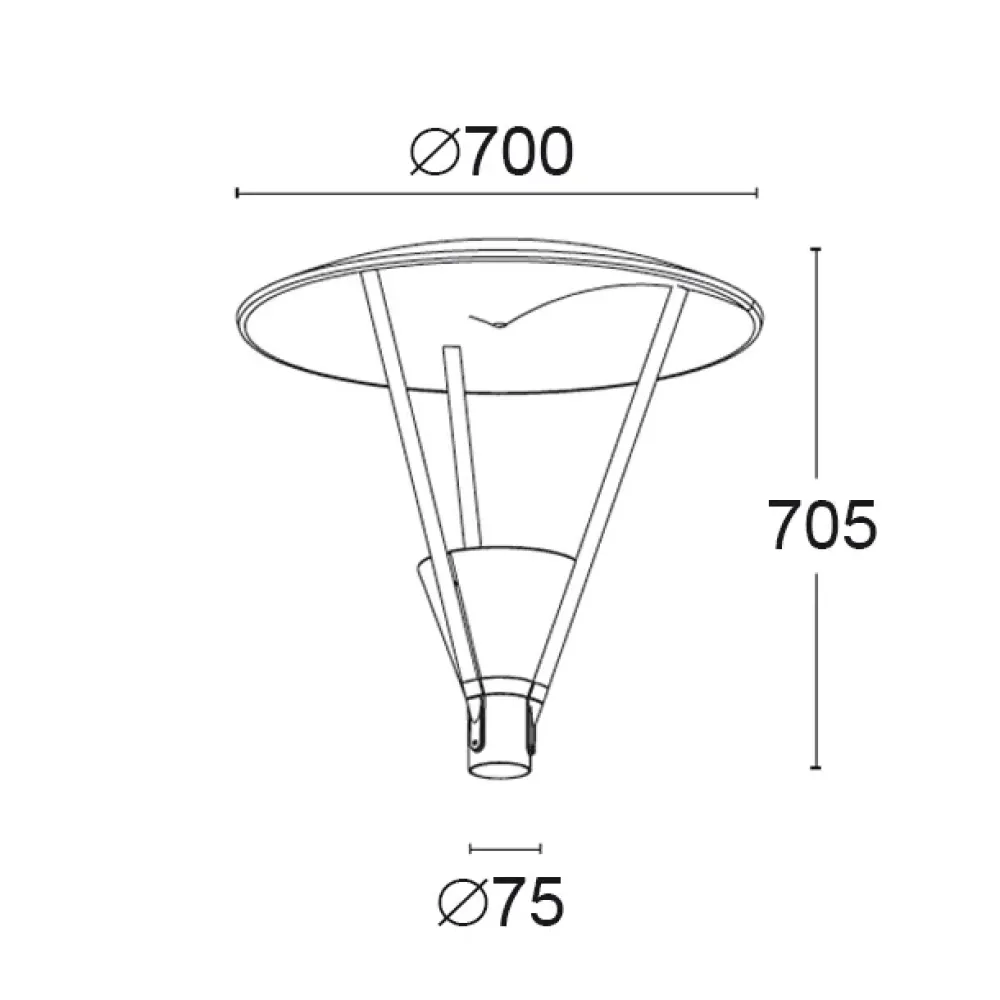

| Size | H 705 x Ø 700 x Ø 75 mm |
| Power supply | 950 mA max |
| Driver | remote driver not included |
| Driver current | 950 mA |
| Beam opening | diffuse 360° |
