Item ID: 41438.13051
Up&Down Mini Ceiling 7551C/NC0.MB-Ceiling Lamps - Ceiling luminaire - Built-in driver
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product

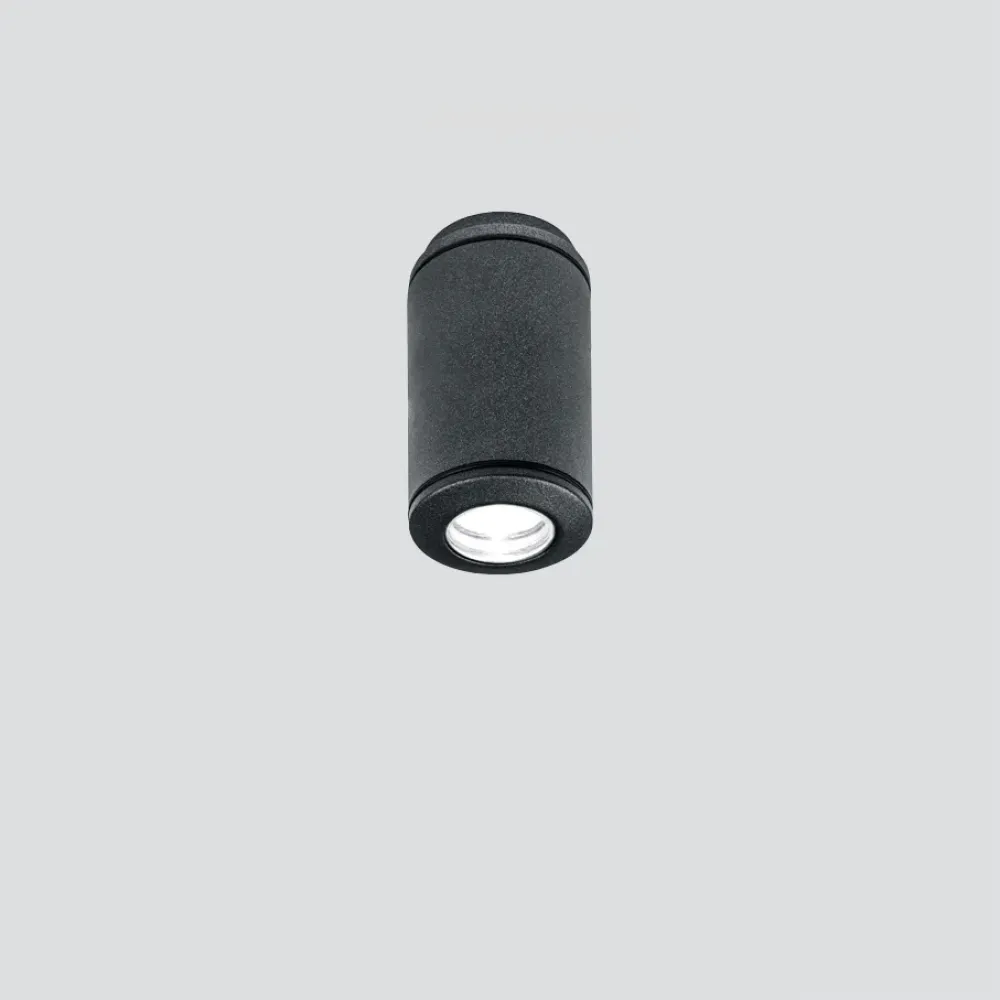

Ceiling luminaire ideal for grazing lighting of external facades. Up & Downd mini is equipped with secondary optics for controlling the luminous flux, which allow design flexibility through different combinations of direct and indirect emission. Includes the use of LED sources with built-in driver with fixed or dimmable Dali output on request with a surcharge.
Product specifications
| Assembly | ceiling installation |
| Source flux | 825 lm |
| Fixture source | 752 lm |
| Apparent efficiency | 91.00% |
| Insulation class | class I |
| Overvoltage protection | 2 kV |
| Operating Ta | 50° |
| CCT LED | 4000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED COB |
| Absorbed power | 8 W |
| Power module LED | 6 W |
| Protection | IP65/IK08 |
| Body | die-cast aluminium |
| Screen | tempered extra-clear glass 6mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

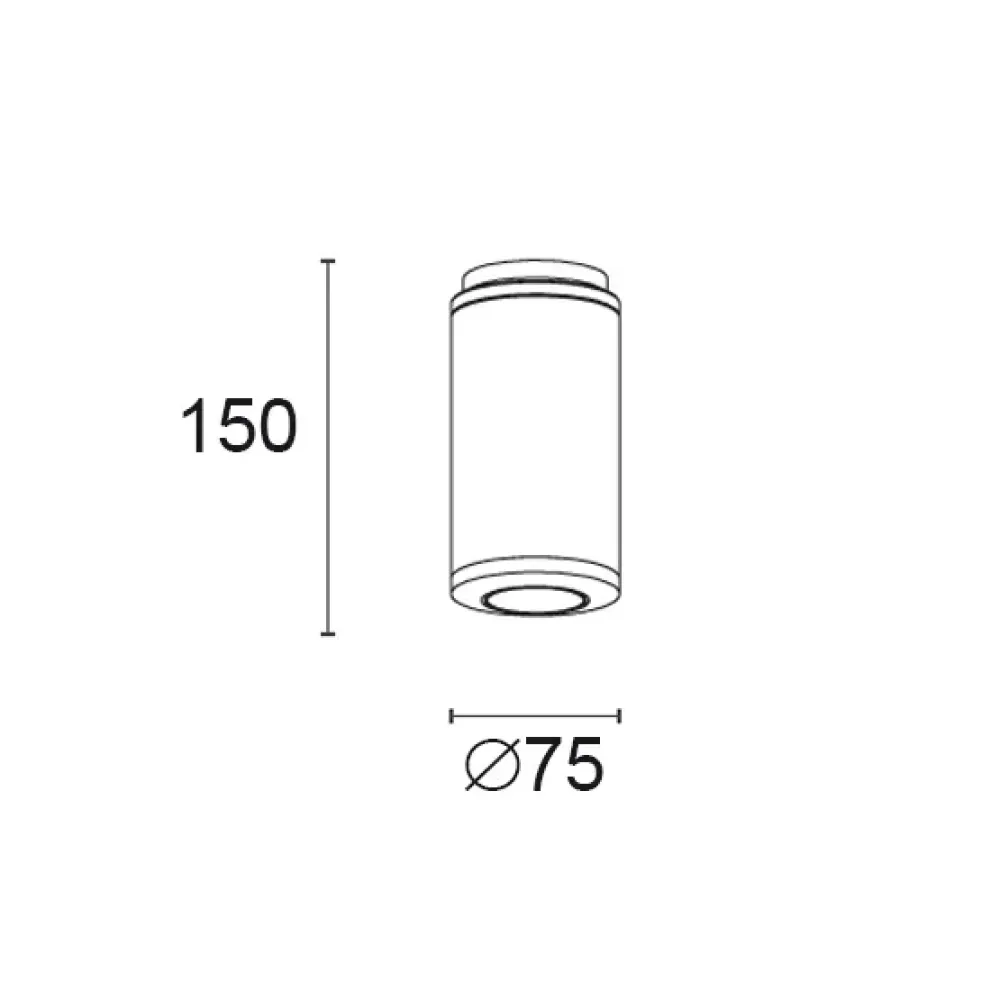

| Size | H 150 x Ø 75 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 350 mA |
| Control | on/off |
| Beam opening | downlight flood/26° |
