About the product

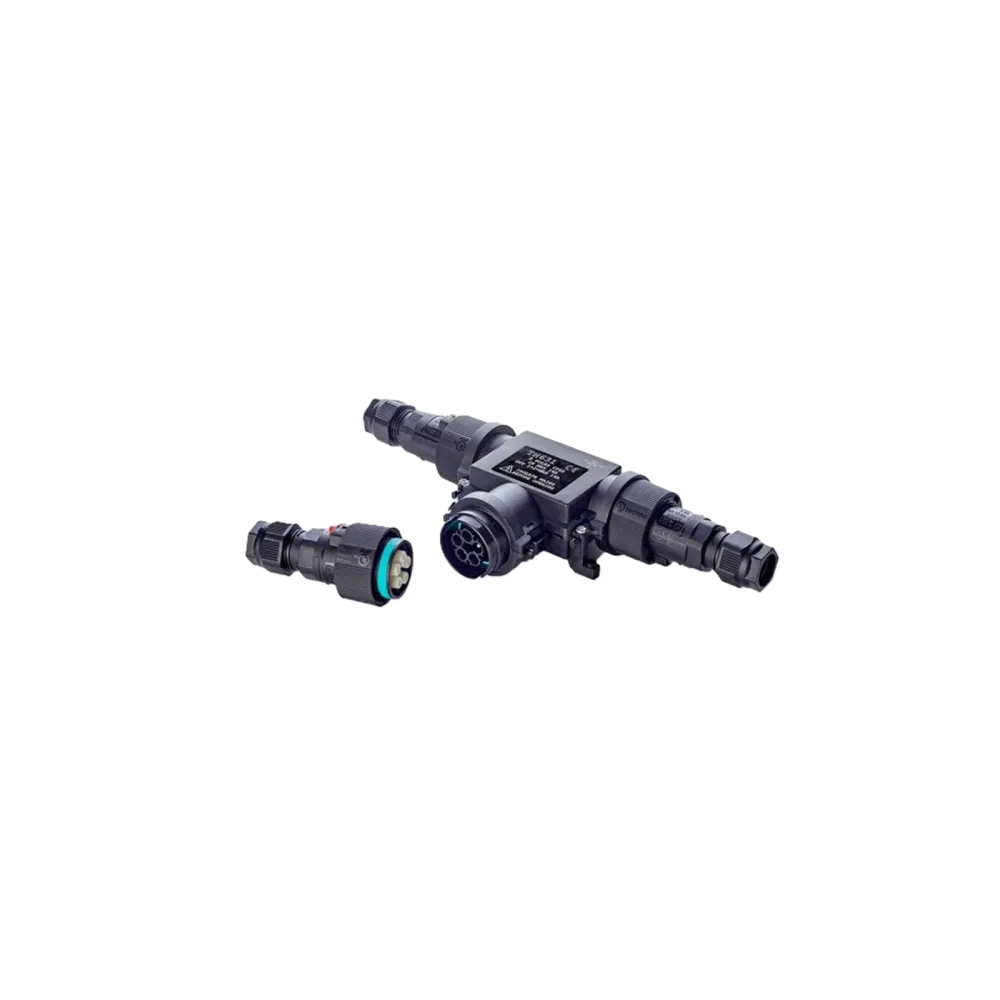

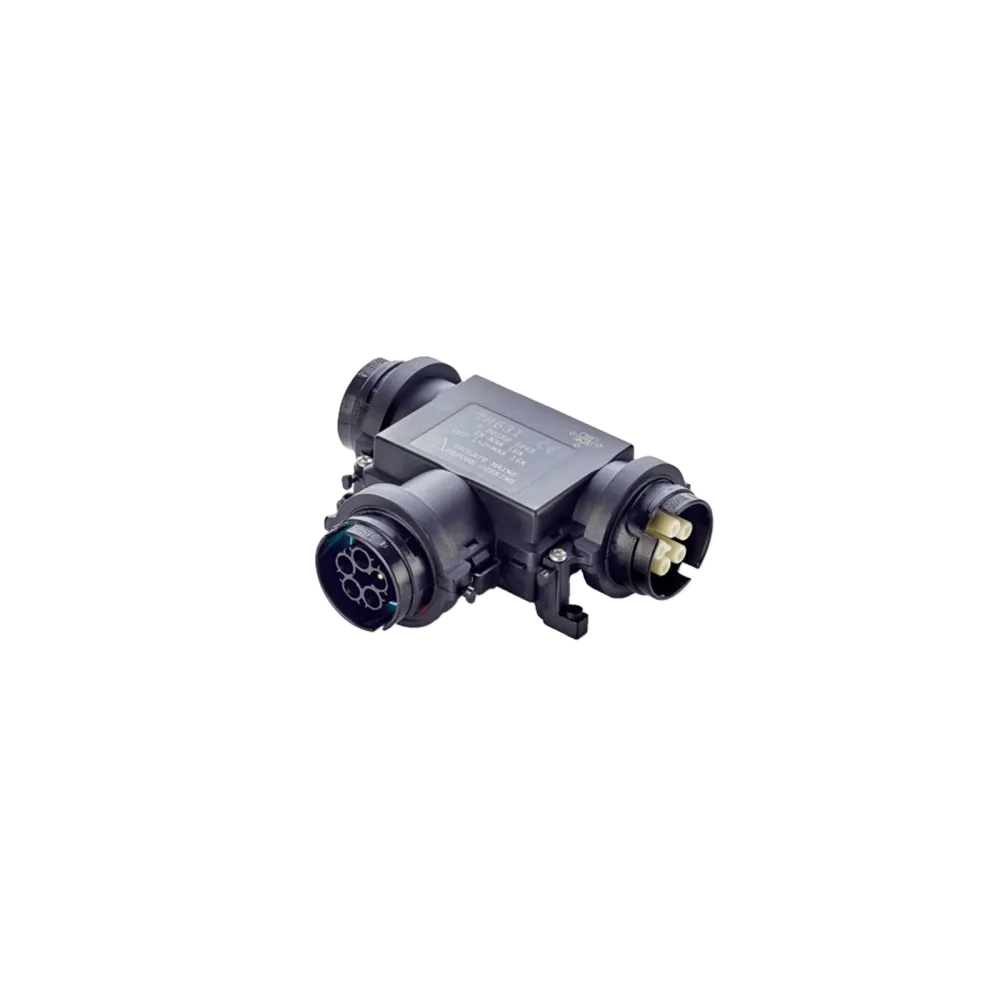

5pole T-Current Distributor THR631 from Techno, Italy
3way Plug and socket junction box
- 3-way T-Distributor with 5pole circular connectors
- For cable diameter: Ø 6.0 – 13.5 mm
- Dimensions outside: 235.0 x 159.0 x 43.0 mm
- IP Rate: IP65
Further, not published products and versions from Techno on request.
Technical data
No of connections: 3
Dimension Outside:235.0 x 159.0 x 43.0 mm
Nominal Voltage: 400V AV
Nominal Current: 17.5A
Cross sections: 0.5 – 1.5mm2
For cable diameter: Ø 6.0 – 13.5 mm
Temperature range: -40…+125°C
Materials: PA66 UL94 V2, PA66 GF UL94 V0 (Connectors), PA66 UL94 V2 (Cable glands)
O-Rings: Silicone, TPE
Material characteristics: Halogenfree,
Errors and Technical changes reserved
Product specifications
| Pole | 5 |
| Nominal current | 17.5 A |
| Nominal voltage (V) | 400 V |
| Cable diameter | 6-13.5 mm |
| Wire section | 0.5-1.5 mm² |
| IP protection | IP65 |
| Certificates | IEC |
| Manufacturer | Techno |
