Item ID: 2666

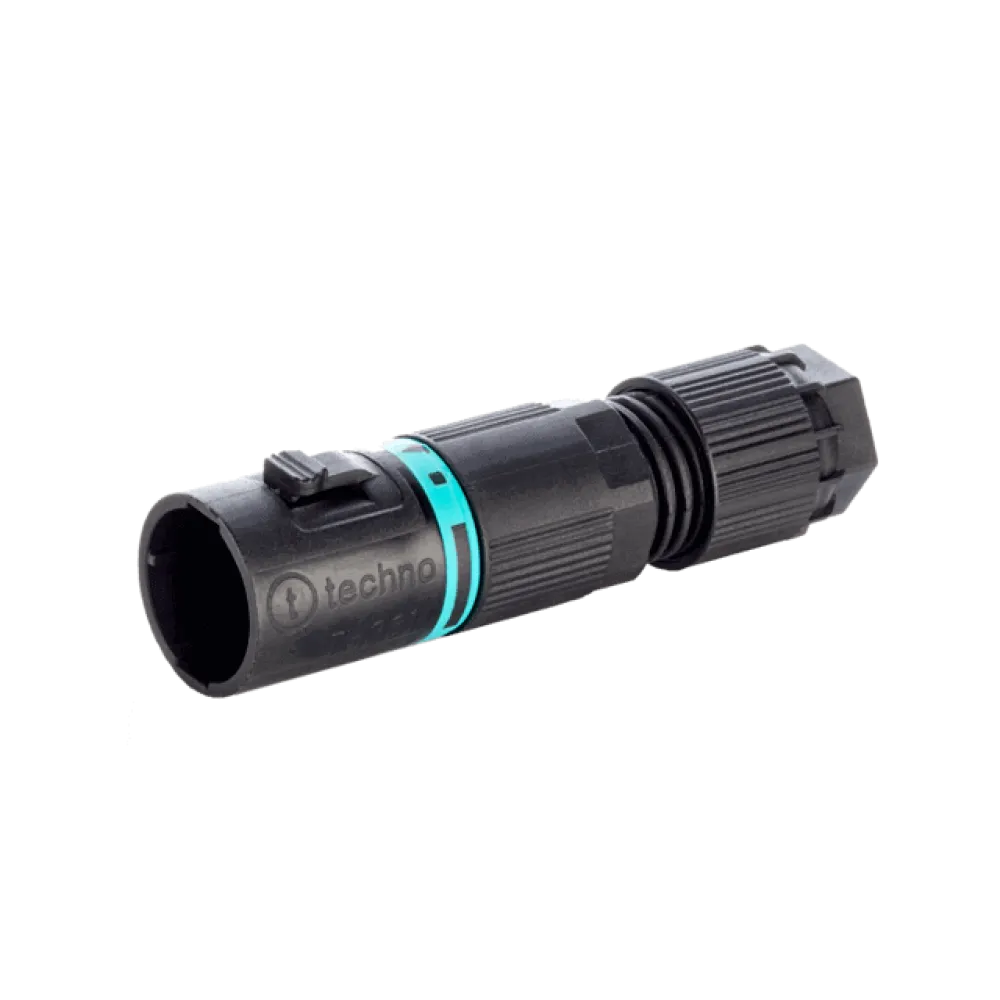

Techno Micro Plug Connector, 3p, Screw, 0.25-1.0mm2, L-N-PE, D7-8, IP66/IP68/IP69
About the product
3-Pole Micro Circular Connector THC381 with Push-Pull-Lock from Techno, Italy
Version: Plug (male)
Connection: Screw
Locking-System: Push-Pull (Unlocking without any tool)
Counterpart: THB.381.B3E
Further, not published products and versions from Techno on request.
Technical data
No of poles: 3 (L-N-E)
IP Rate: IP66/IP68/IP69
Cable diameter: 7.0 – 8.0 mm
Dimension: Ø 14.0 x 53.0 mm
Dimensionen when connected: Ø 14.0 x 90.0 mm
Cable cross section: 0.25 – 1.0 mm2
Nominal Voltage: 500V AC
Nominal Current: 10A
Temperature range: -40°…+125°C
Manufacturer: Techno
Errors and Technical changes reserved
Product specifications
| Product | Cable connector male |
| Manufacturer | Techno |
| Certificates | IEC |
| IP protection | IP66, IP68, IP69 |
| Connection | Screw terminal |
| Wire section | 0.25-1.0 mm² |
| Cable diameter | 7-8 mm |
| Nominal voltage (V) | 500 V |
| Nominal current | 10 mA |
| Pole | 3 |
| Temperature range | -40°C to 125°C |
