About the product

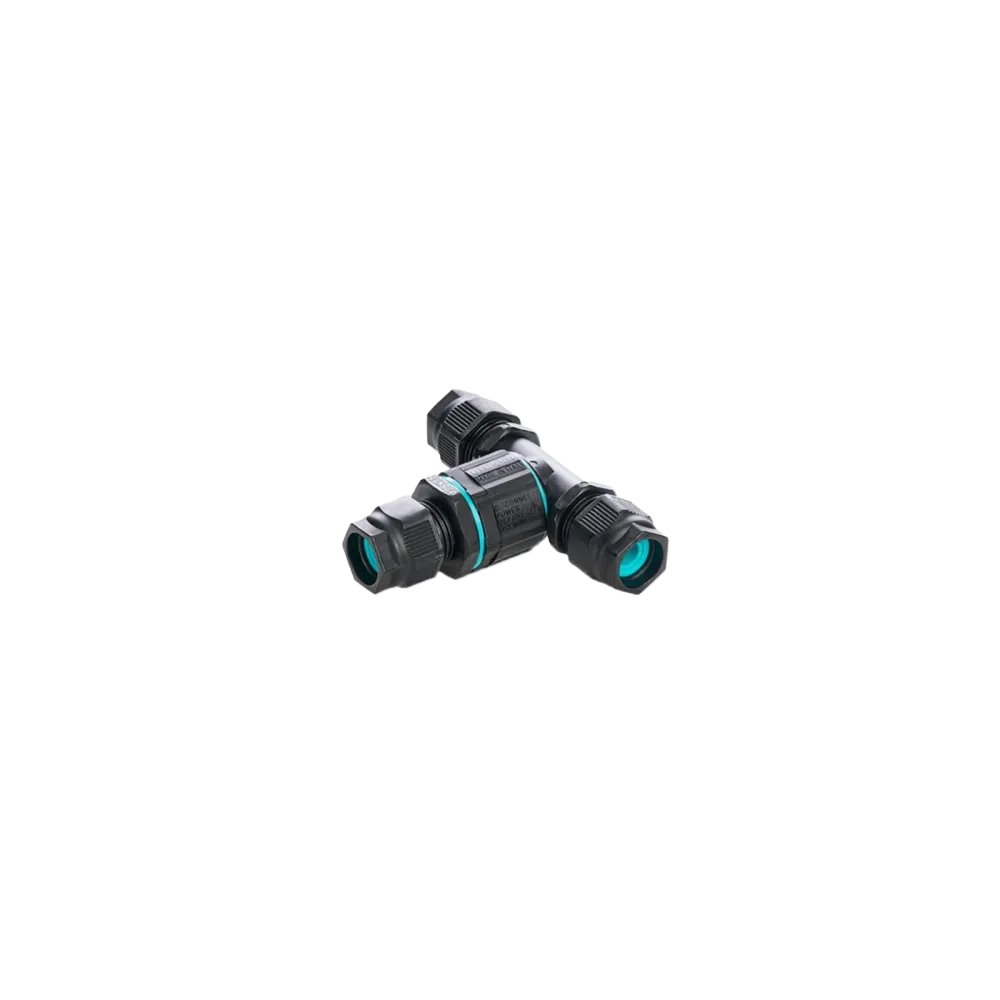

3-pole T-Junction Connector TH390 from Techno, Italy
Junction Connector with wire protection
- 3-way T-Junction Connector
- For cable diameter: Ø 7.0 – 13.5 mm
- Dimensions: Ø 32.0 x 97.0 x 77.0 mm
- IP Rate: IP68
*Recommended for cable of cross-section < 1.0 mm2
Further, not published products and versions from Techno on request.
Technical data
No of outlets: 3
Dimensions: Ø 32.0 x 97.0 x 77.0 mm
Nominal Voltage: 450V AC
Nominal Current: 24A
Cable cross sections: 0.25 – 1.5 mm2
For cable diameters: Ø 7.0 – 13.5 mm
Temperature range: T 125°C
Material:
– Housing: PA66 GF UL94 V0
– Cable distributor: PA66 GF UL94 V0
– Cable glands: PA66 UL94 V2
– O-Rings: Silicone
– Gaskets: TPE
Material characteristics: Halogenfree
Errors and Technical changes reserved
Product specifications
| Pole | 3 |
| Nominal current | 24 A |
| Nominal voltage (V) | 450 V |
| Cable diameter | 7-13.5 mm |
| Wire section | 0.25-1.5 mm² |
| IP protection | IP68 |
| Certificates | CE, IEC |
| Manufacturer | Techno |
Data sheets
