About the product

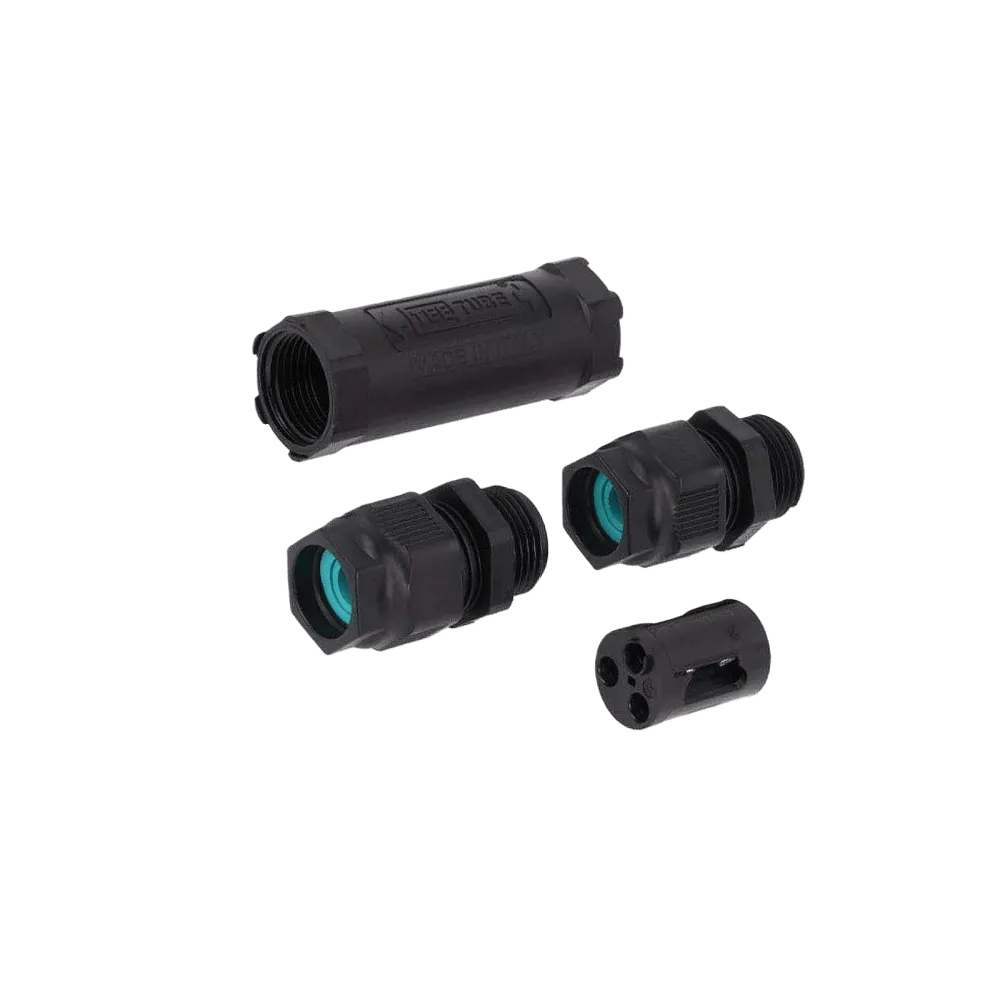

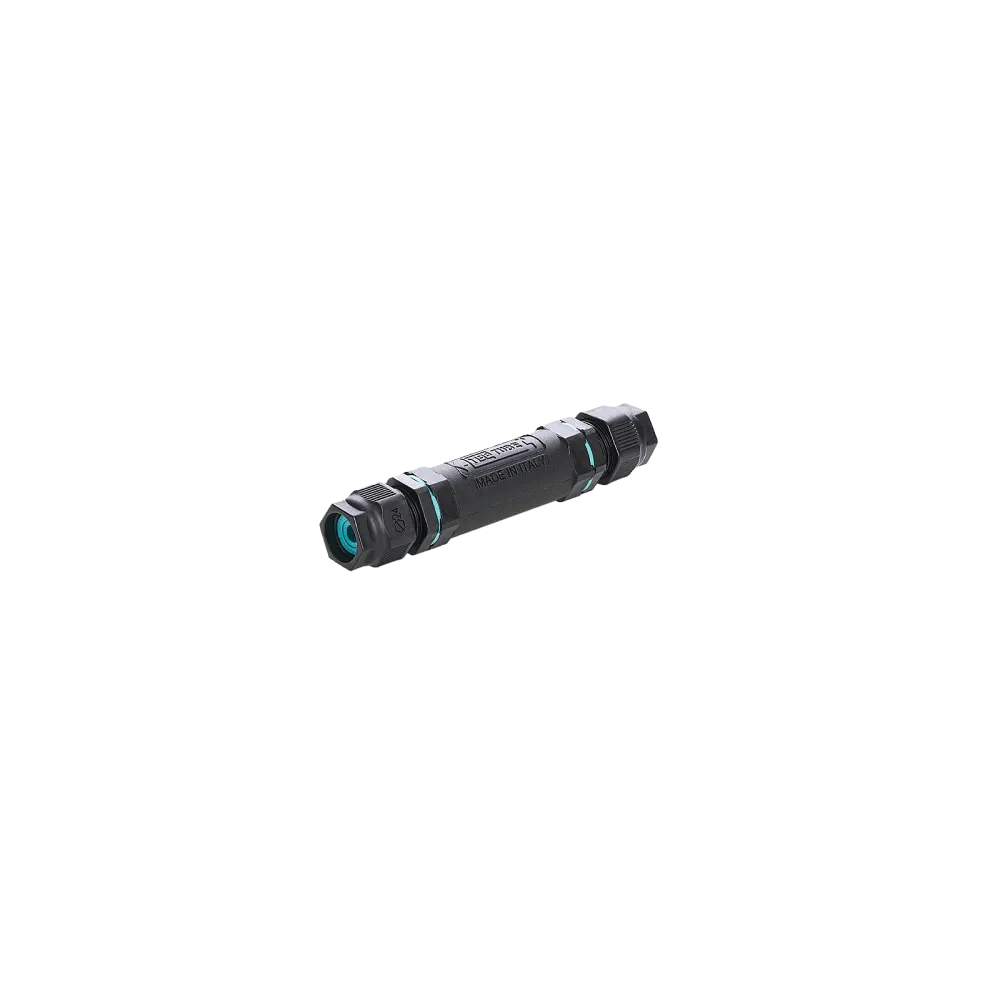

InLine Cable Connector THP400 from Techno, Italy
Waterproof, InLine Cable Connector with *piercing screw for universal applications
- For cable diameter: Ø 7.0 – 13.5 mm
- Dimension: Ø 26.5 x 134.0 mm
- IP68/IP69
*The piercing solution is ideal for PVC, Neoprene and FEP cables
Further, not published products and versions from Techno on request.
Technical data
No of connections: 2
No od poles: 3
Dimension: Ø 26.5 x 134.0 mm
Nominal Voltage: 450V AC
Nominal Current: 32 A
Cable Cross sections: 0.5 – 1.5 mm2
For cable diameters: 7.0 -13.5 mm
Temperature: T 125°C
IP Rate: IP68/IP69
Housing material: PA66 GF UL94 V0 / PA66 GF UL94 V2 (Cable glands)
Gasket: TPE
Material characteristics: Halogenfree
Errors and Technical changes reserved
Product specifications
| Pole | 3 |
| Nominal current | 17.5 A |
| Nominal voltage (V) | 450 V |
| Cable diameter | 7-13.5 mm |
| Wire section | 0.5-1.5 mm² |
| IP protection | IP68, IP69 |
| Certificates | CE, IEC |
| Manufacturer | Techno |
