About the product

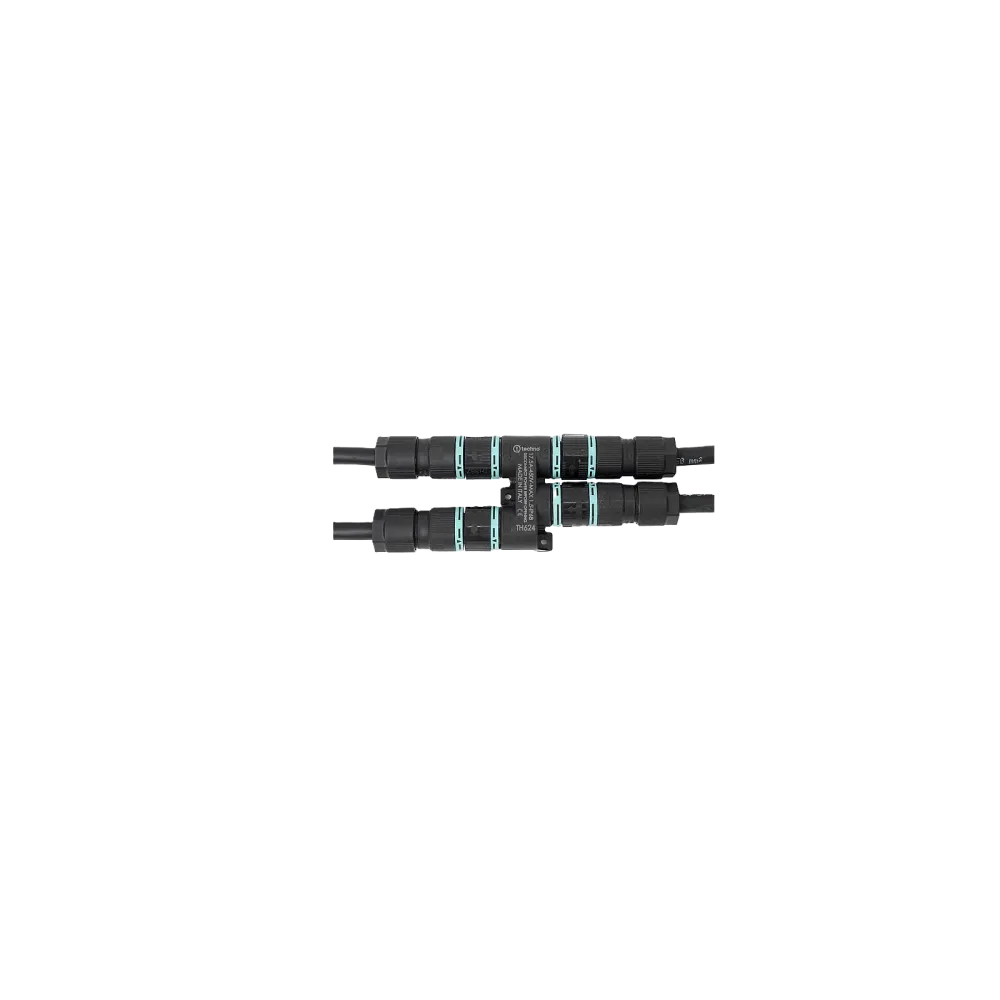

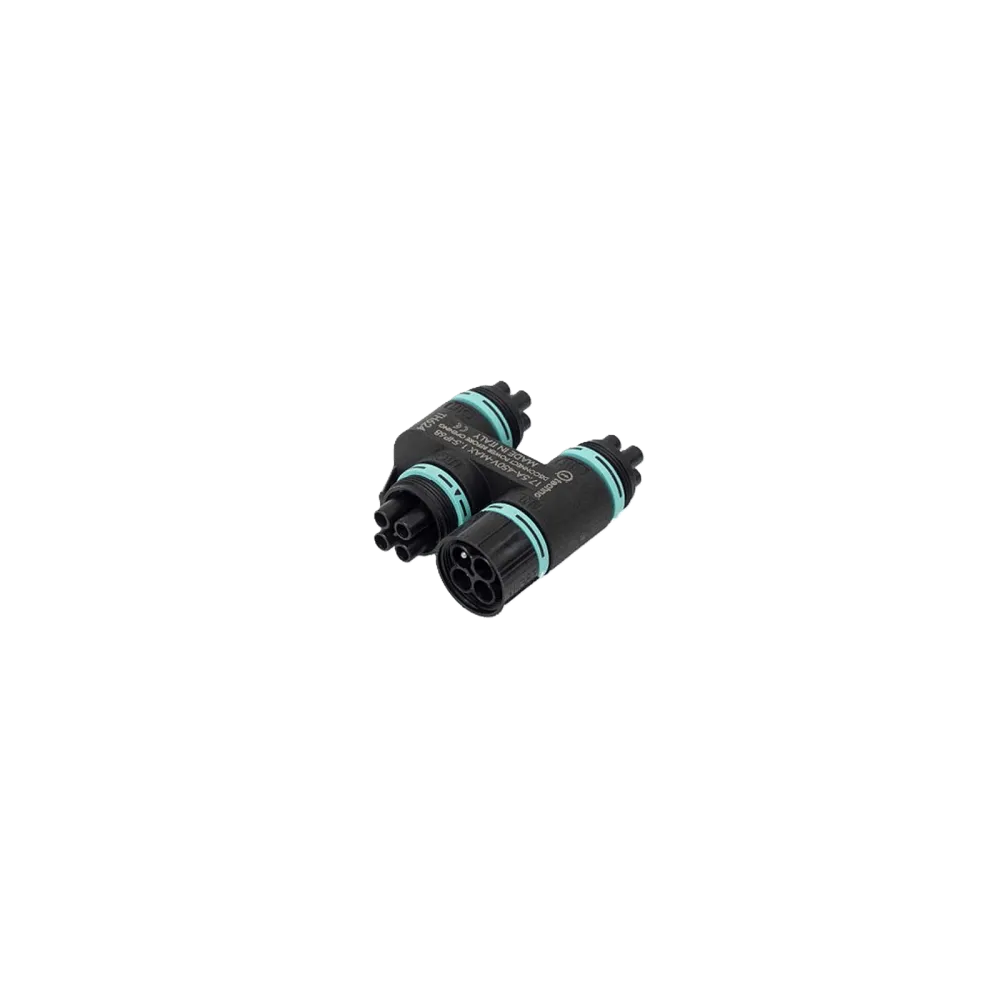

4-way H-Current Distributor/Junction Box TH624 from Techno, Italy
with 4 connections (1+3) – Quick and simple assembly increases the efficiency of the installation.
No of input/output: 4 (1+3)
1x socket/female
3x plug/male
Locking-System: Screw
Matching counterparts (single):
Sockets: THB.387.B4A
Plugs: THB.387.A4A

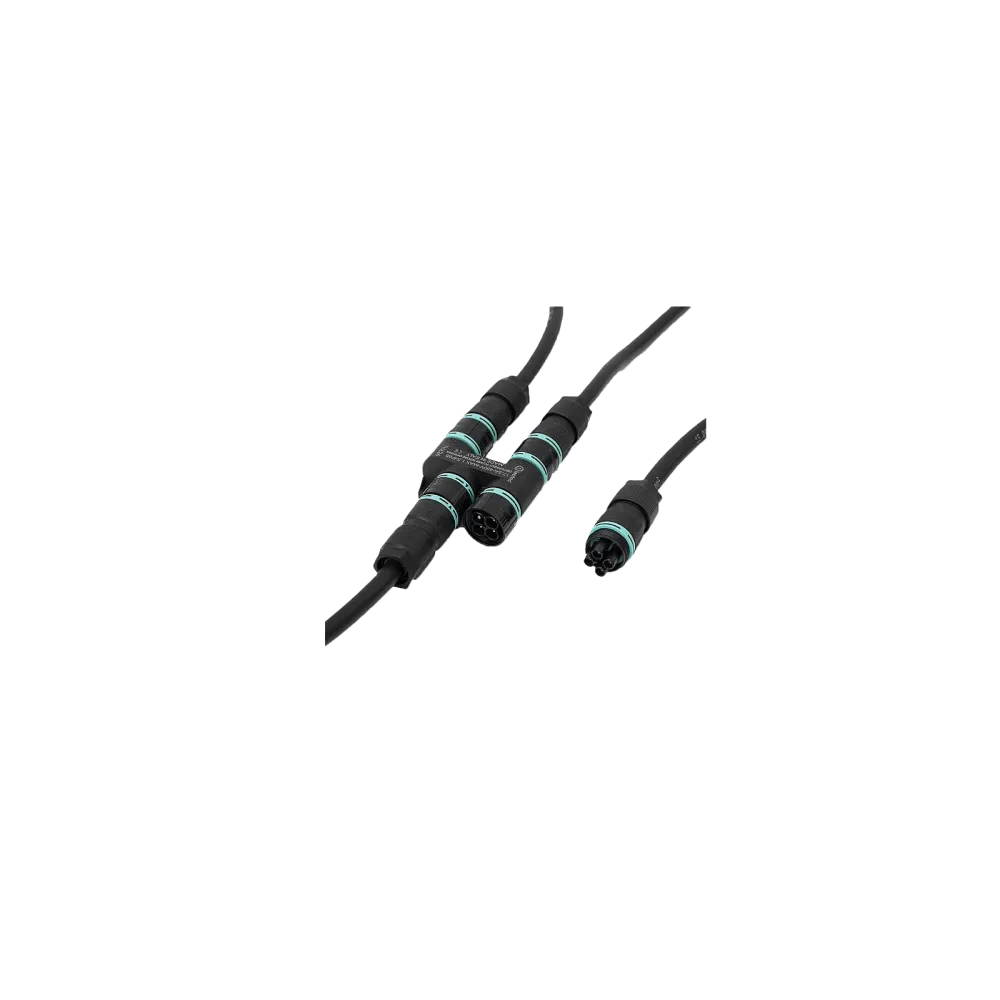

Also available as a kit including matching counterparts: THH.624.A4A.R
Further, not published products and versions from Techno on request.
Technical data
No of input/outlets: 4 (1+3)
Dimensions Exterior:65.0 x 61.0 x 25.0 mm
Nominal Voltage: 500V AC
Nominal Current: 17.5 A AC/DC
Temperature range: -40°…+125°C
IP Rate: IP68
Housing material: PA66 GF UL94 V0
O-Rings: TPE
Material characteristics: Halogen free, Silicone free
Contact: Brass
Errors and Technical changes reserved
Product specifications
| Pole | 4 |
| Nominal current | 17.5 A |
| Nominal voltage (V) | 500 V |
| IP protection | IP68 |
| Certificates | CE |
| Manufacturer | Techno |
